MA 100

MA 100 Intermittent motion cartoner for blister

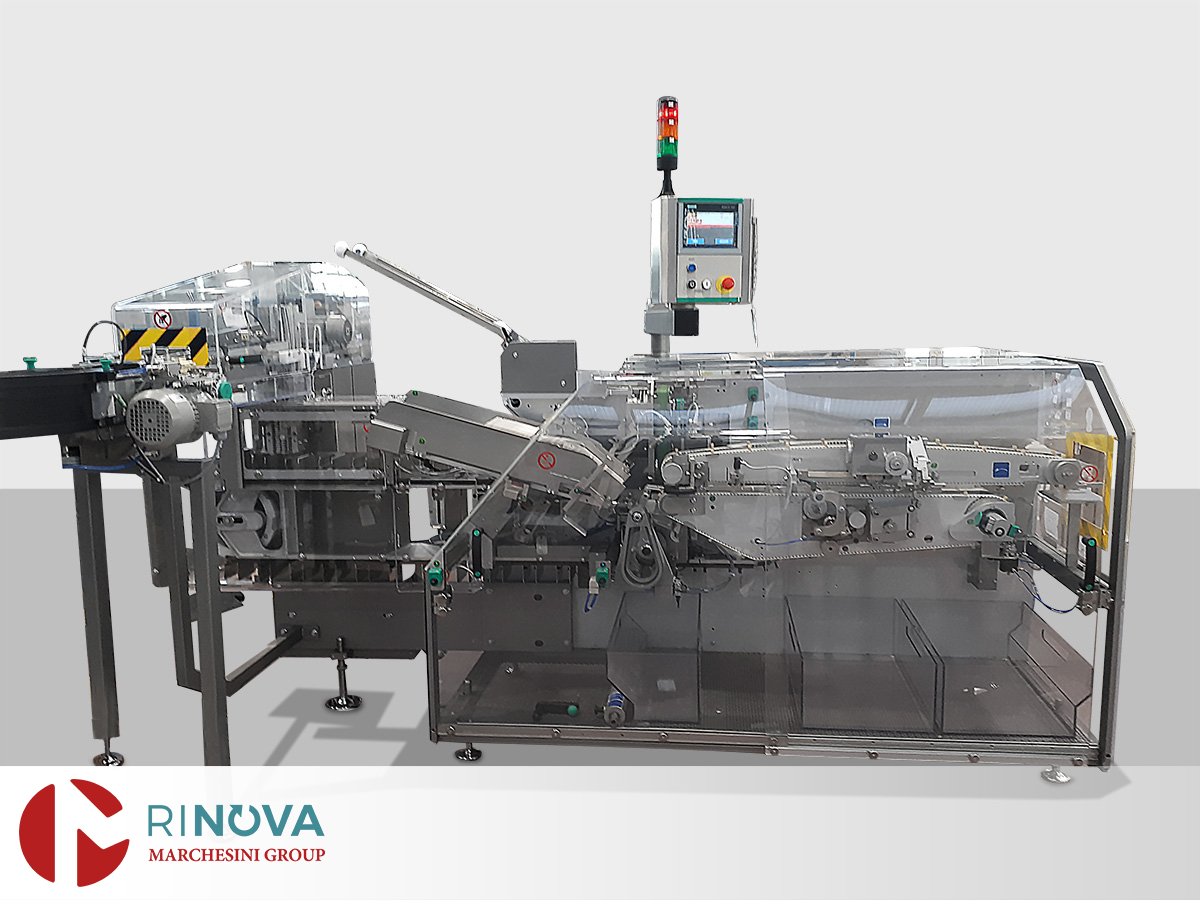

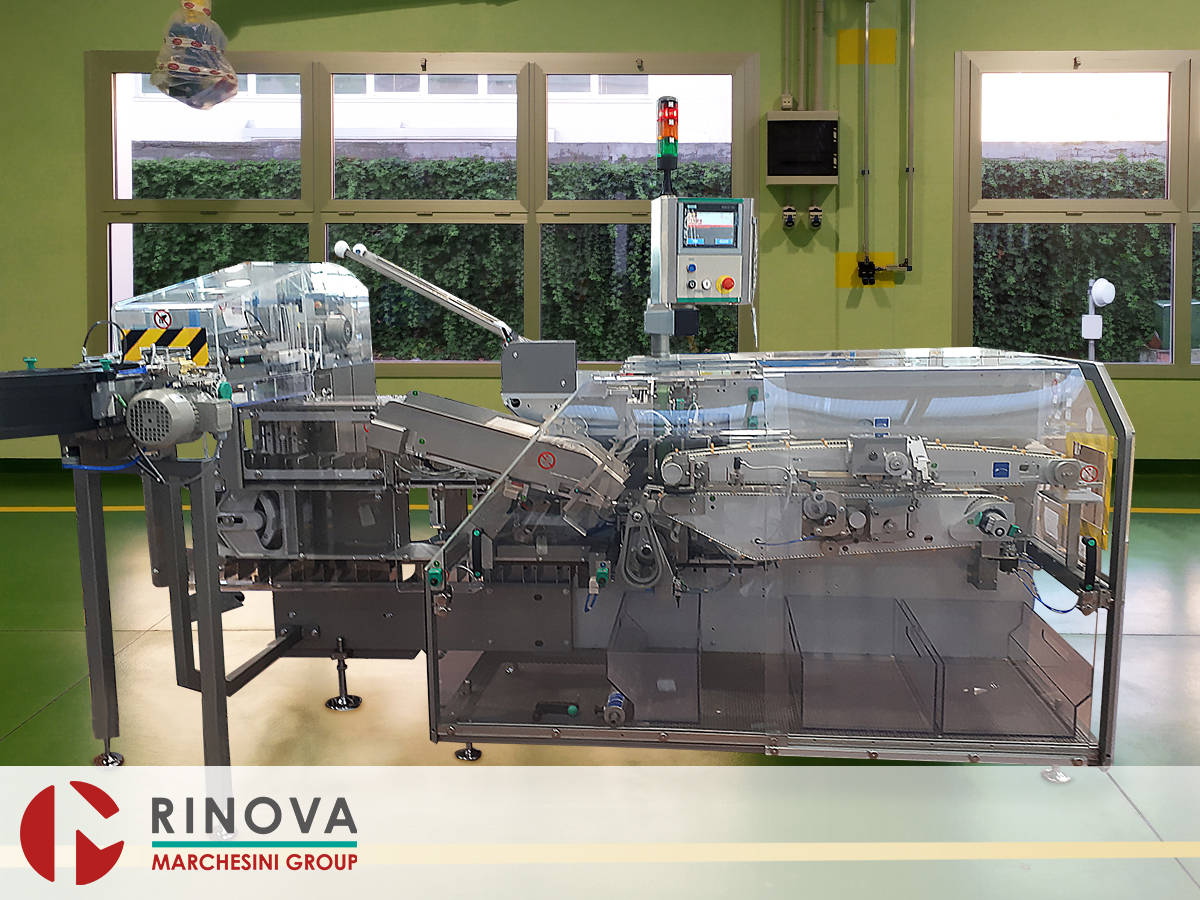

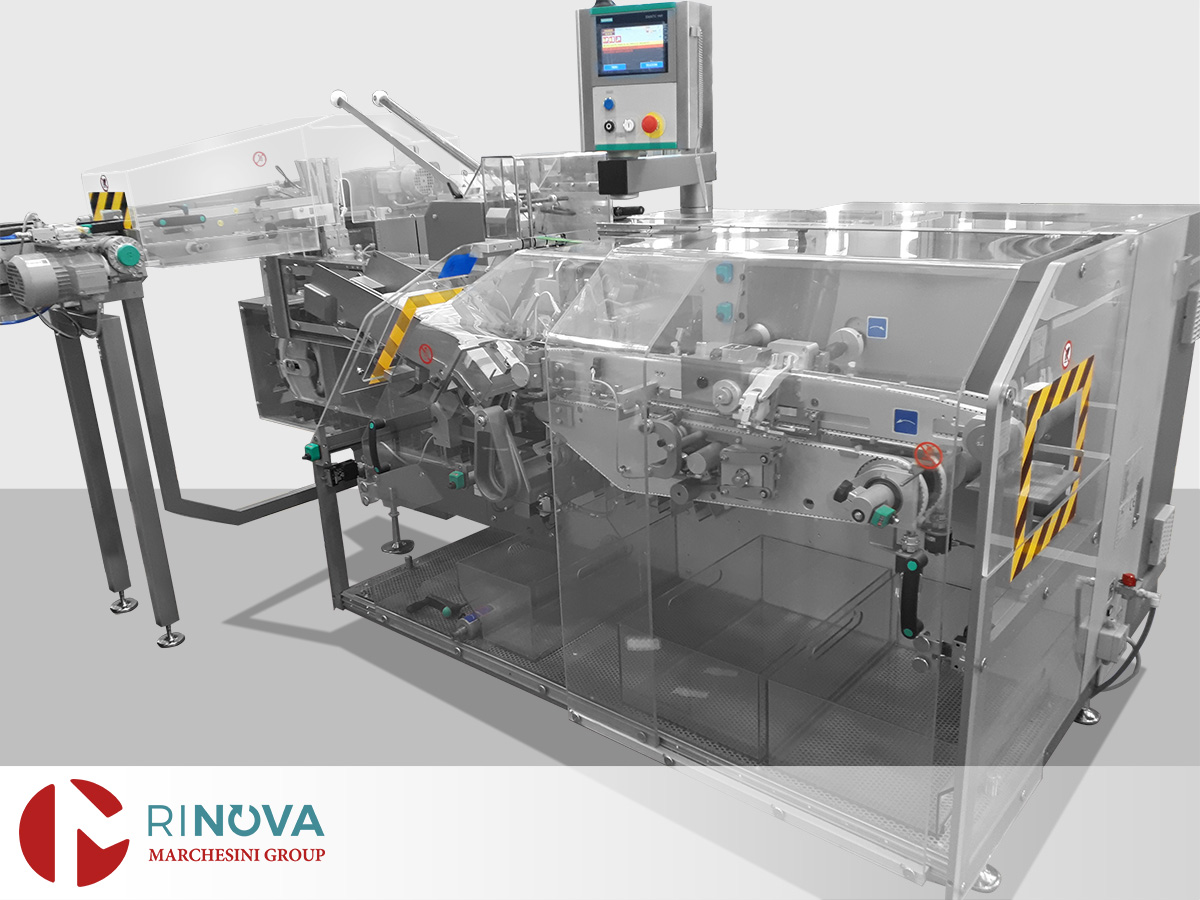

The Marchesini MA100 is an intermittent motion automatic machine with horizontal transport of the carton, suitable for packing blisters into flaps straight or reverse tuck-in cartons.

Main Features

  • Design, manufacturing and ergonomics, in accordance with cGMP norms;
  • Versatility and efficiency in a small footprint;
  • Balcony design to improve accessibility, maintenance and cleaning operations;
  • Working zone on operator side for cartons, products and leaflets transport, separated from the rear of the machine enclosing the mechanics and the main servo motor drive;
  • Cartons transport and closing movements running in oil bath, enclosed in two drive boxes;
  • Cartons transport system with adjustment (“a” quote) from a single point of intervention, through handwheel and digital indicators;
  • Adjustment of carton length (“h” dimension), by widening the belt transport system, through handwheel and digital indicators;
  • Separated removable bins for collecting rejected products, cartons and leaflets;
  • Handwheel, digital indicators, millimeter scales and size gauges for easy size changeover;
  • Simultaneous adjustment of all infeed buckets from a single point of intervention, by means of a size gauge, for a quick adjustment of the “a” quote;
  • CE marking.

Blister feeders

  • Automatic, electronic Blister feeder from a vertical magazine;
  • Magazine to be loaded on top with Blisters arriving from one lane;
  • The Blisters are taken from the bottom by servo motor driven separation-release mechanism. Exact separation is obtained with moving small fingers, which in alternate movement hold and release the Blister;
  • The count is electronically commanded;
  • The magazine is in a fix position and Blister discharge is done direct into the buckets of the intermittent motion Cartoner’s infeed chain.

Cartoning Section

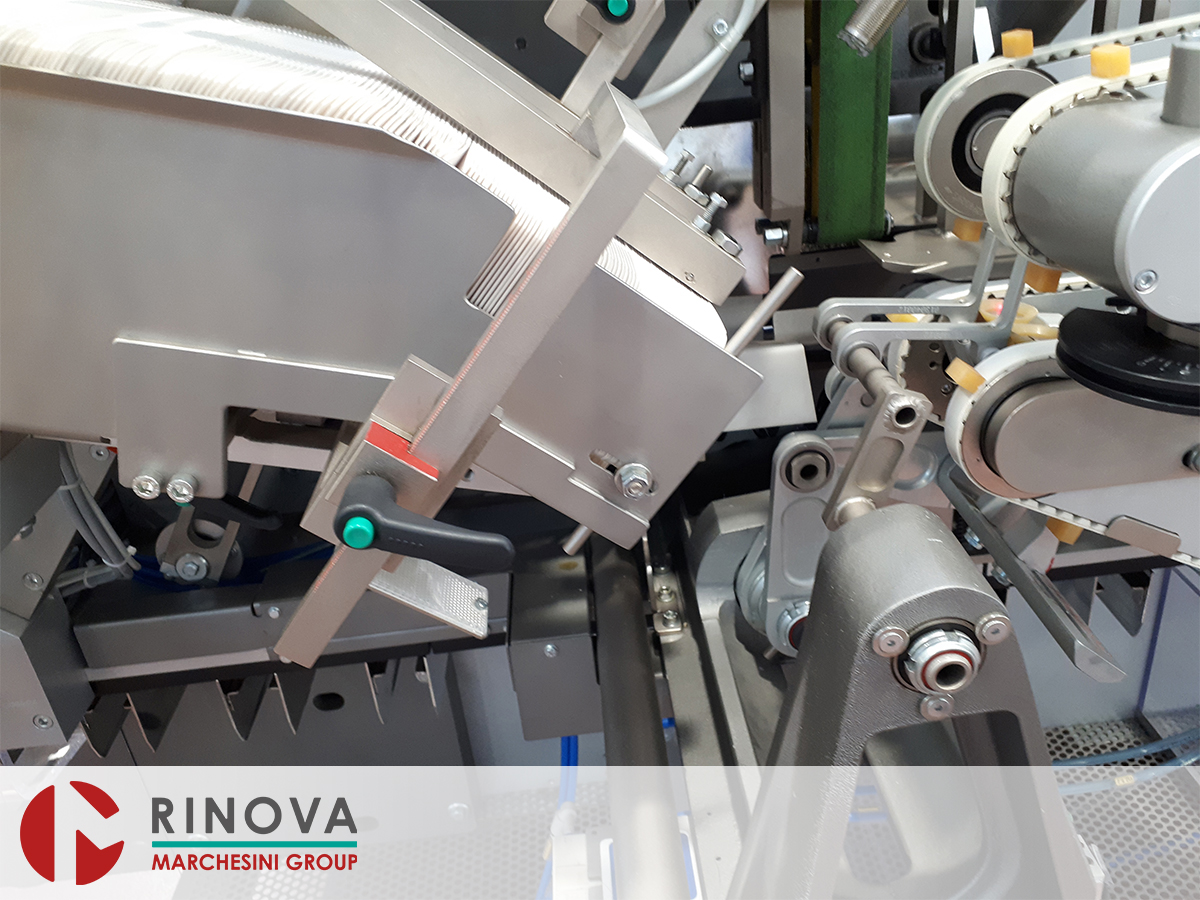

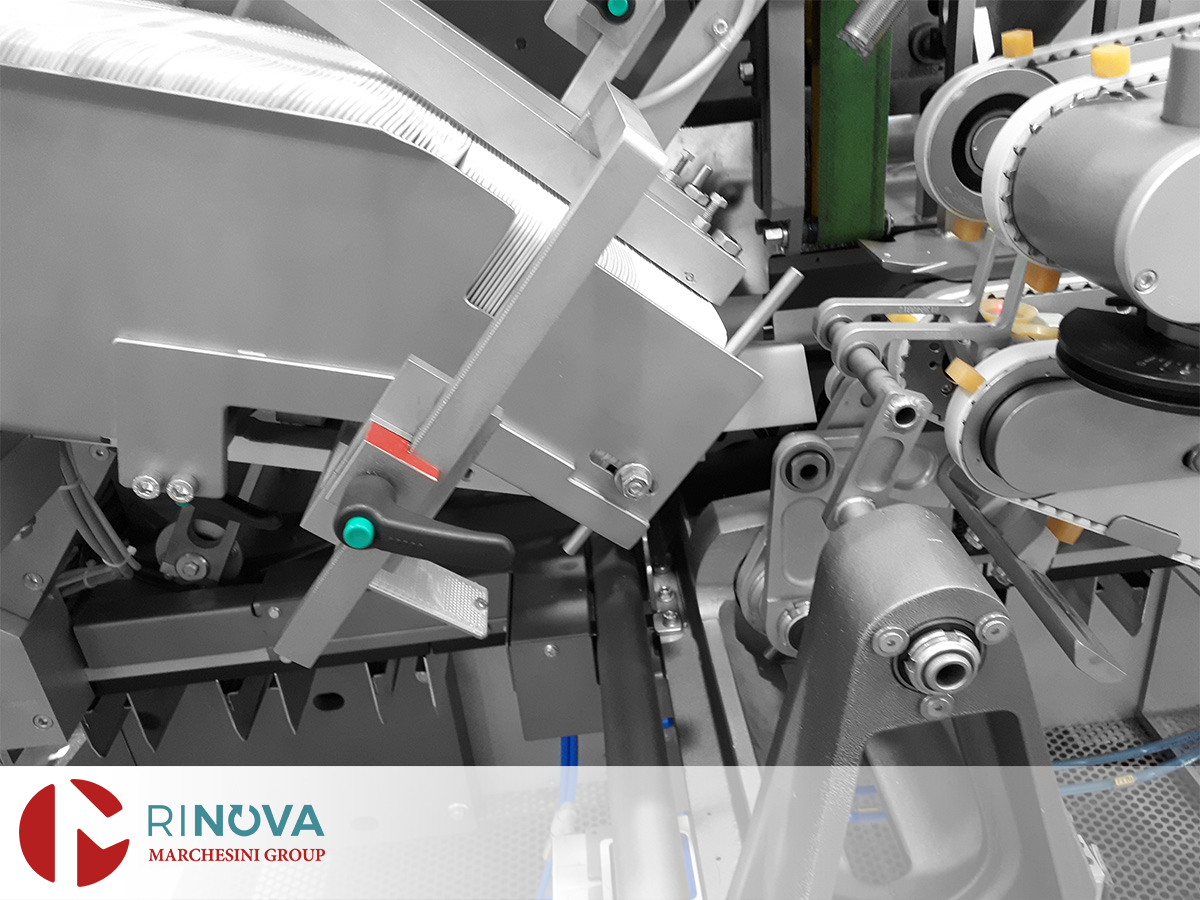

  • Cartons magazine with length of 630 mm (24.80”), placed at about 900 mm (35.43”), in an easy position for the operator to load cartons, equipped with motorized pusher belts and minimum load control;
  • Simplified magazine guides and pickup adjustment with millimeter scales.
  • Carton opening by means of a pick-up oscillating arm and 90 degrees mechanical pre-breaking unit;

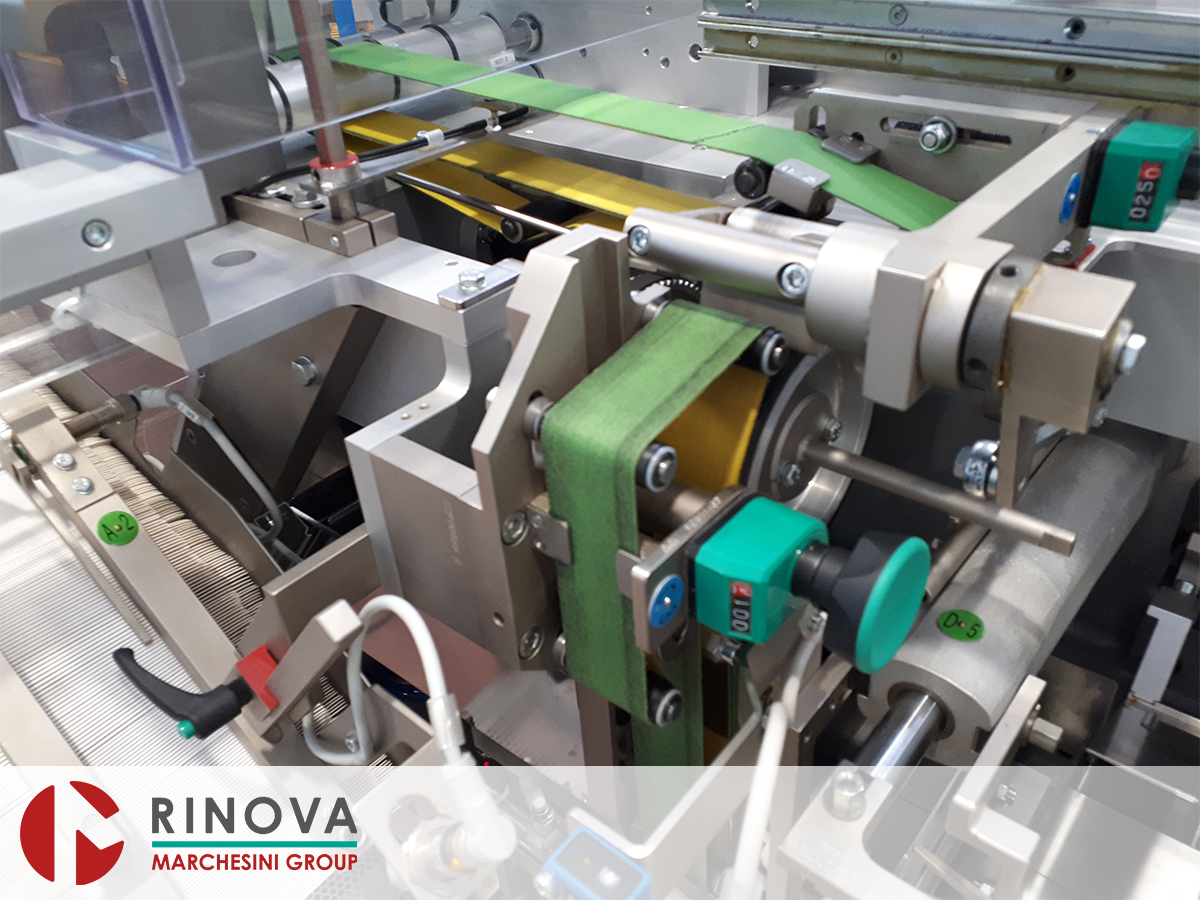

  • Direct transfer of the opened carton into the transport group equipped with 4 strong plastic toothed belts to keep the carton in perfect square;
  • Product insertion into carton, by means of a pusher unit placed opposite the operator side;

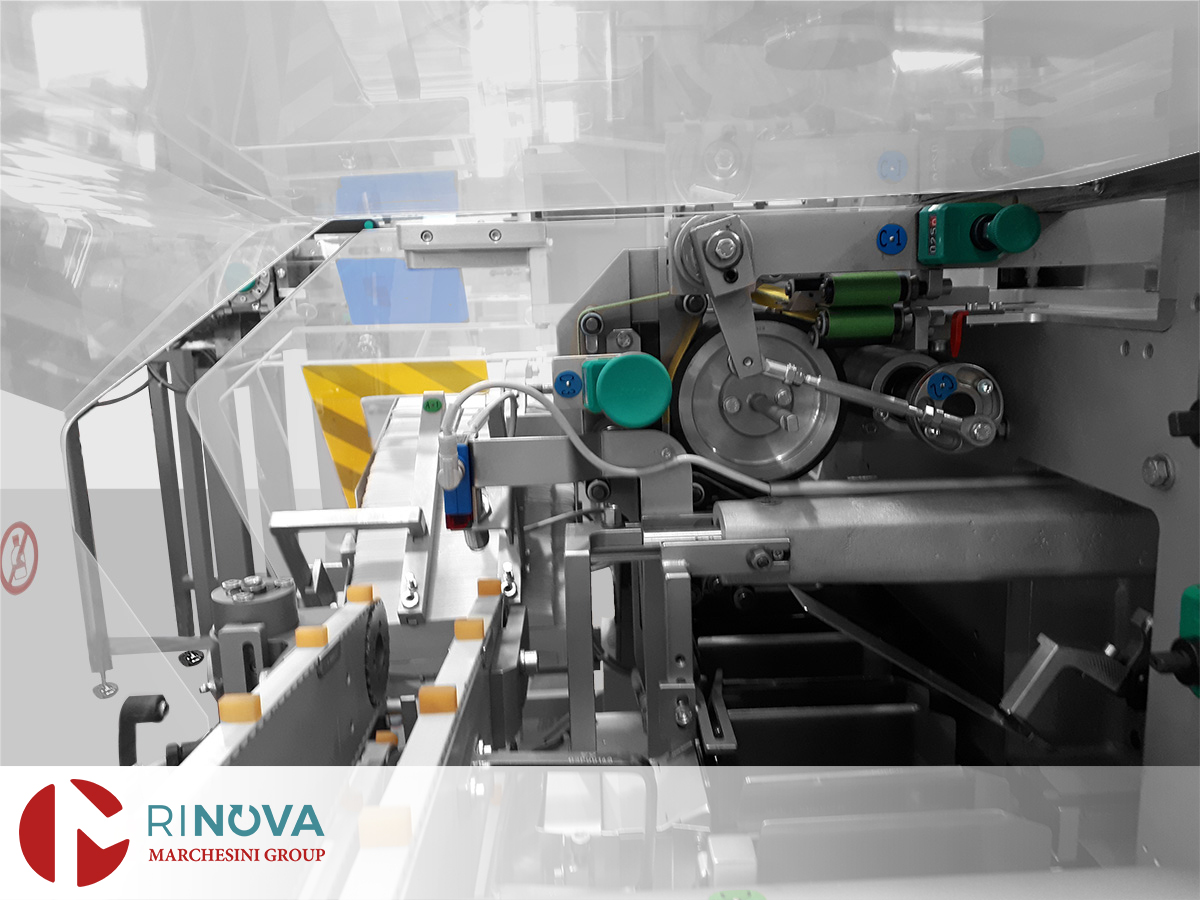

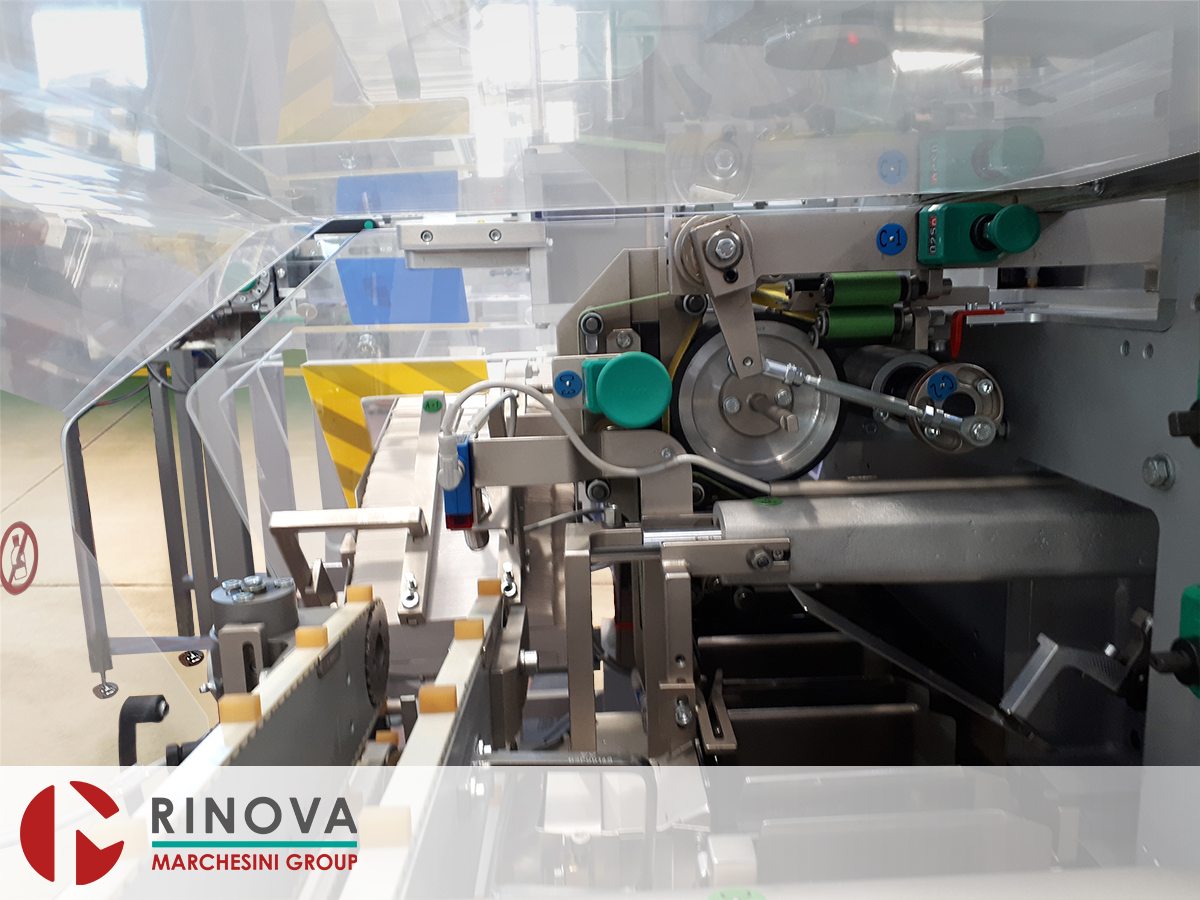

  • Carton closing and discharge on outfeed guides.

Safeties and Controls

  • Safeties guards in methacrylate, integrated in the machine frame;
  • Emergency circuits and protections with safety level “PLd Cat.3”;
  • Machine stop in emergency mode and release of the air pressure;
  • Overload control on the machine motorizations;
  • Overload control on pusher unit during product insertion;
  • Minimum load control on products, cartons and leaflets feeding;
  • Cross control product-carton-leaflet; in absence of product, the machine does not pick up neither carton nor leaflet;
  • Carton reject control;
  • Machine stop after three consecutive errors.

Optional Accessories

  • Embossing cartons marking;
  • Different types of carton closures;
  • Pre-folded leaflets magazine.

Technical data

Size data

  • A: Min 20 mm (0,79”) - Max 85 mm (3,35”)
  • B: Min 16 mm (0,63") - Max 65 mm (2,56")
  • H: Min 60 mm (2,36") - Max 170 mm (6,69")

Maximum mechanical speed

  • up to 100 cartons/minute
  • The production speed is always dependent on the possibility of feeding and characteristics of the product as well as on the configuration of the product, as well as on the accessories added to the standard machine

Electrical system

  • Tested according to the certified Quality Plan

Standard voltage

  • 400 Volts, 3-phase, Neutral & Ground, Frequency 50 Cycles

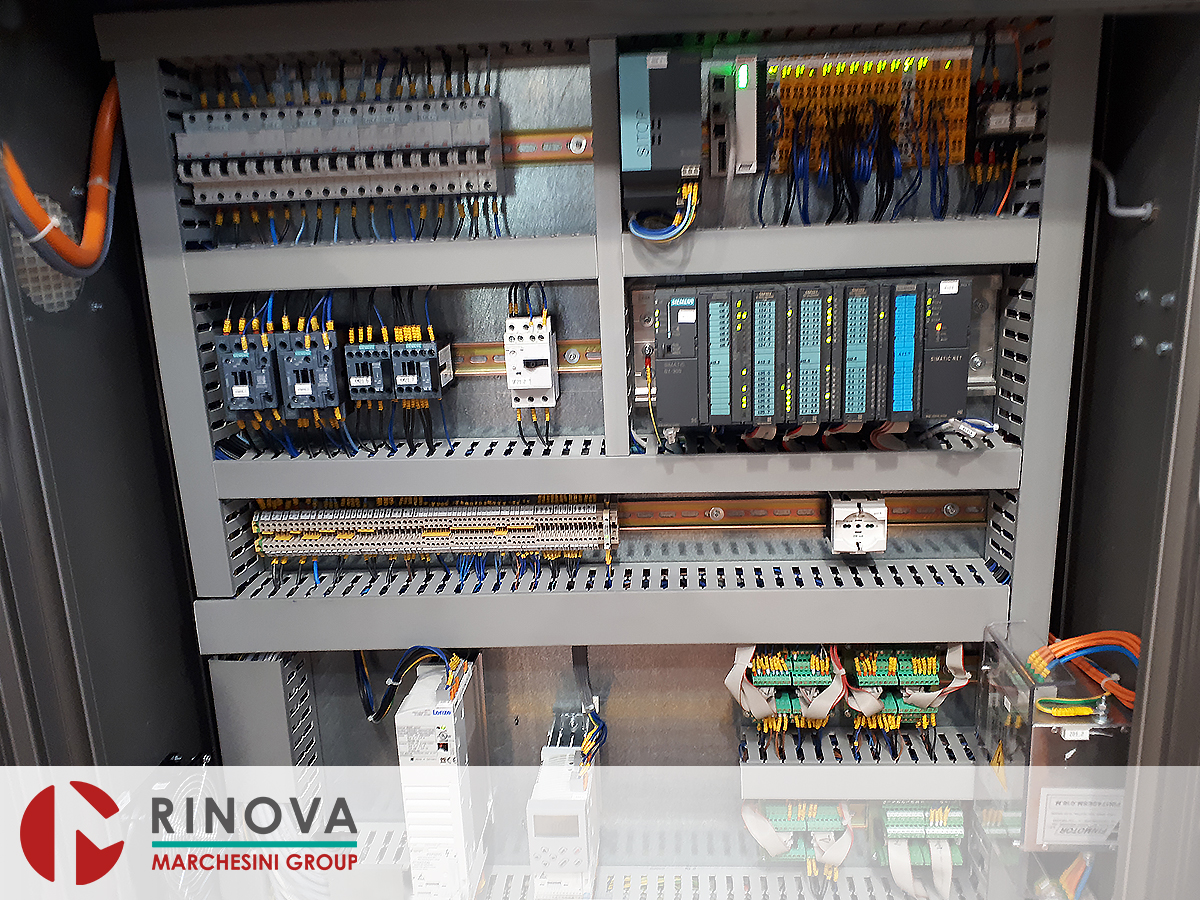

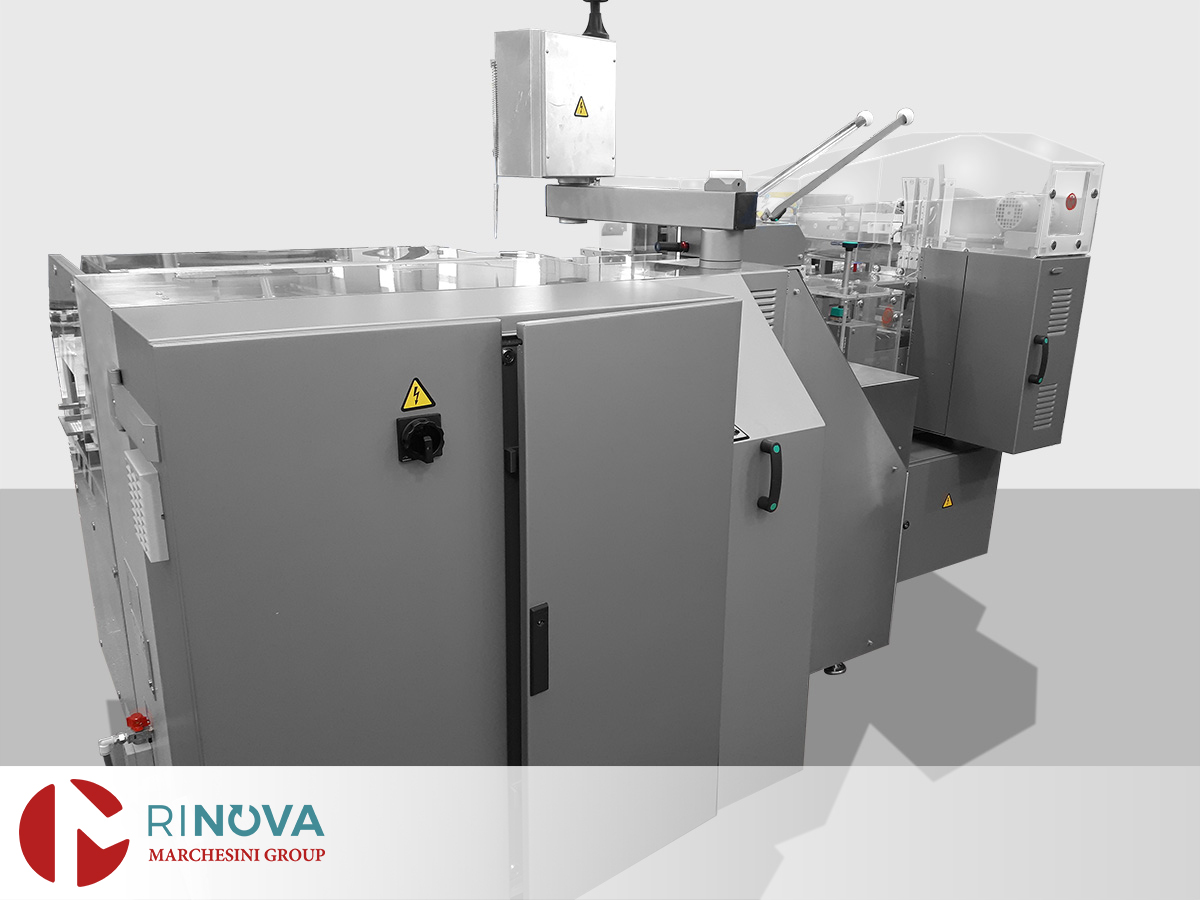

Electrical cabinet

  • On board, it can be opened from the rear side of the machine

Three colours advisory lights (5 functions)

Electric functions

  • Commanded by an Industrial Siemens PC, Autotest included

Touch Screen control panel complete with:

  • Start, stop, reset and emergency push buttons
  • Jog connector
  • Display to visualize notifications for the operator as well as necessary size management selections
  • Message presentation including services and Help menu
  • Display in Italian language with possibility to add two optional foreign languages
  • Password protected services access
  • roduction data: total and partial hours counter, good products counter, speed indicator
  • Complying with EMC norms (El. Magnetic Compatibility)
  • Cybersecurity: SW complying with IEC 62443-3-3 International Standard. Security Level reached: SL2

Technical documentation

  • Original standard Instructions Manual (one hardcopy + Pendrive) and CE Certificate are supplied with the machine
