BA 50

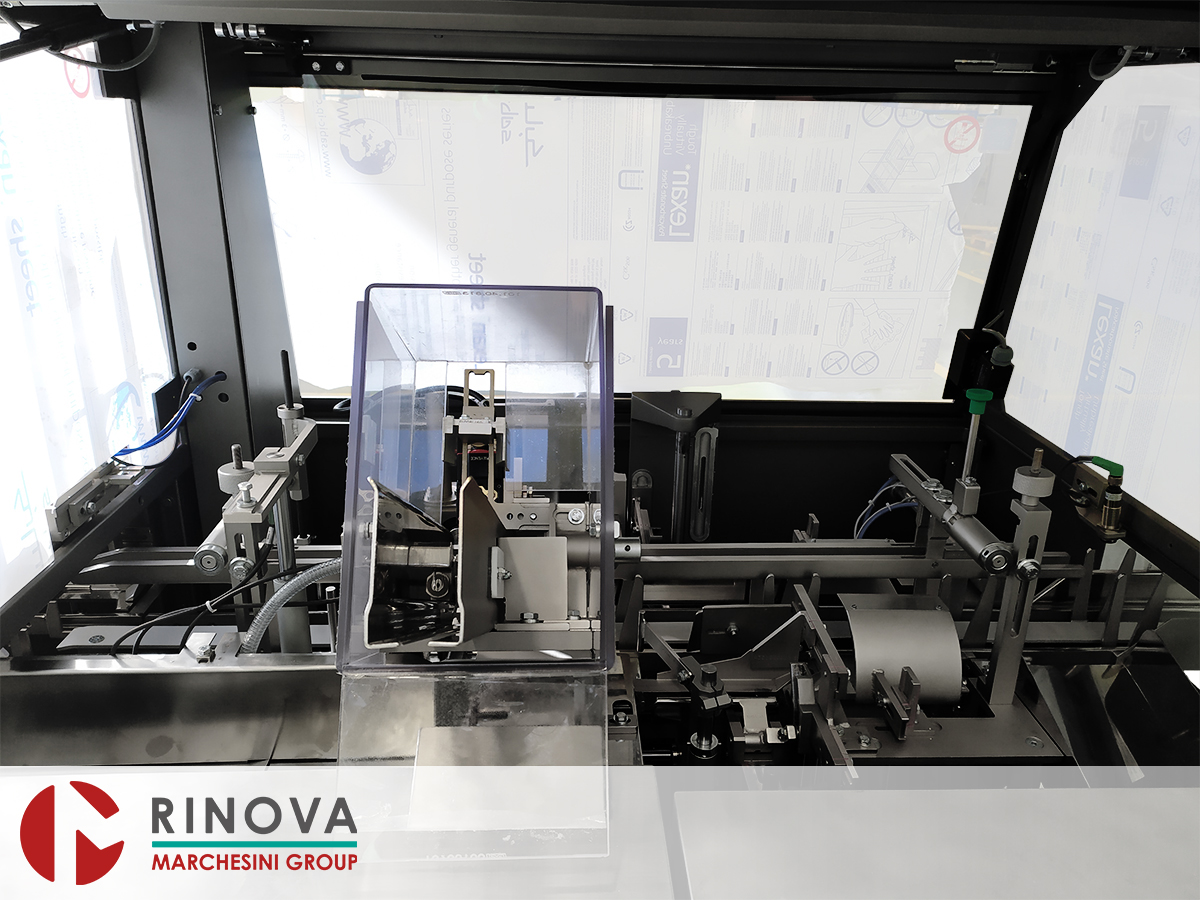

BA 50 Intermittent motion cartoner

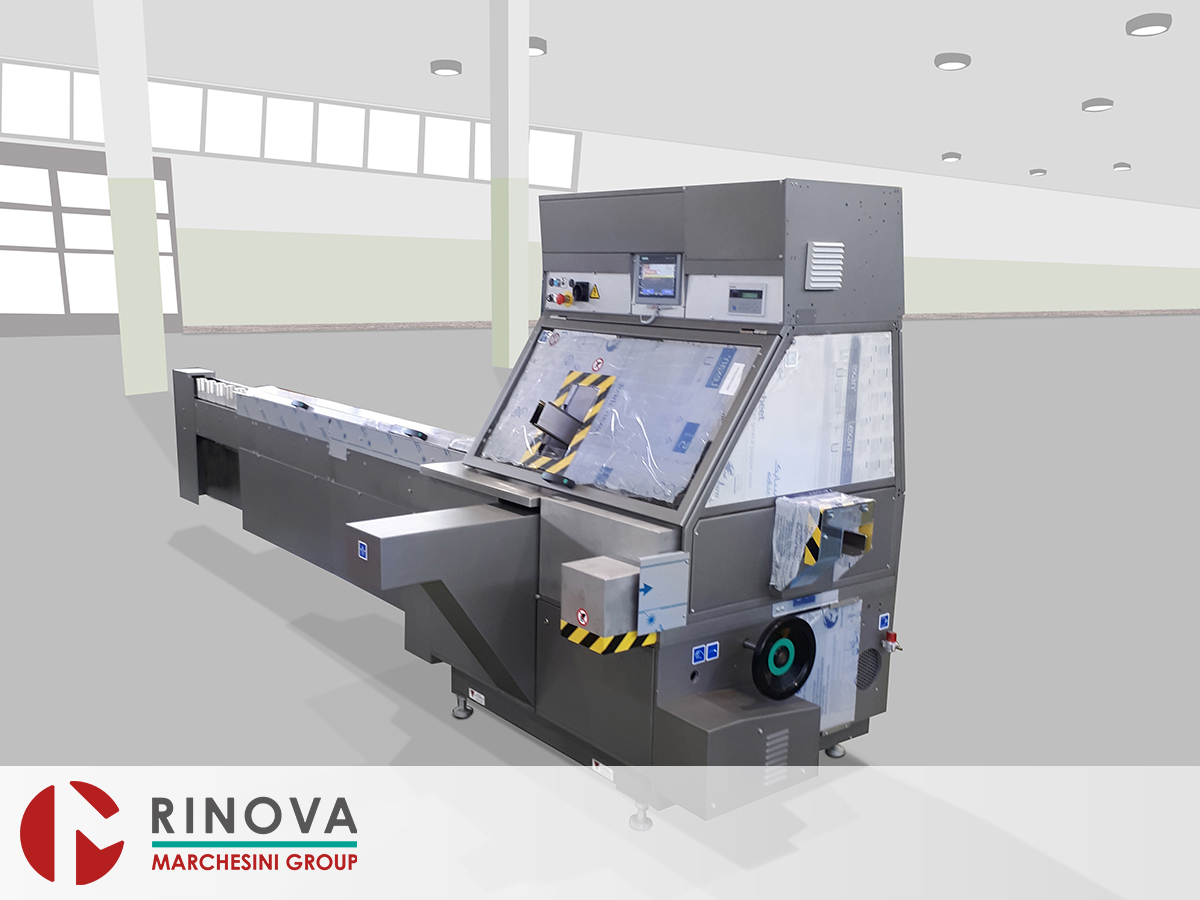

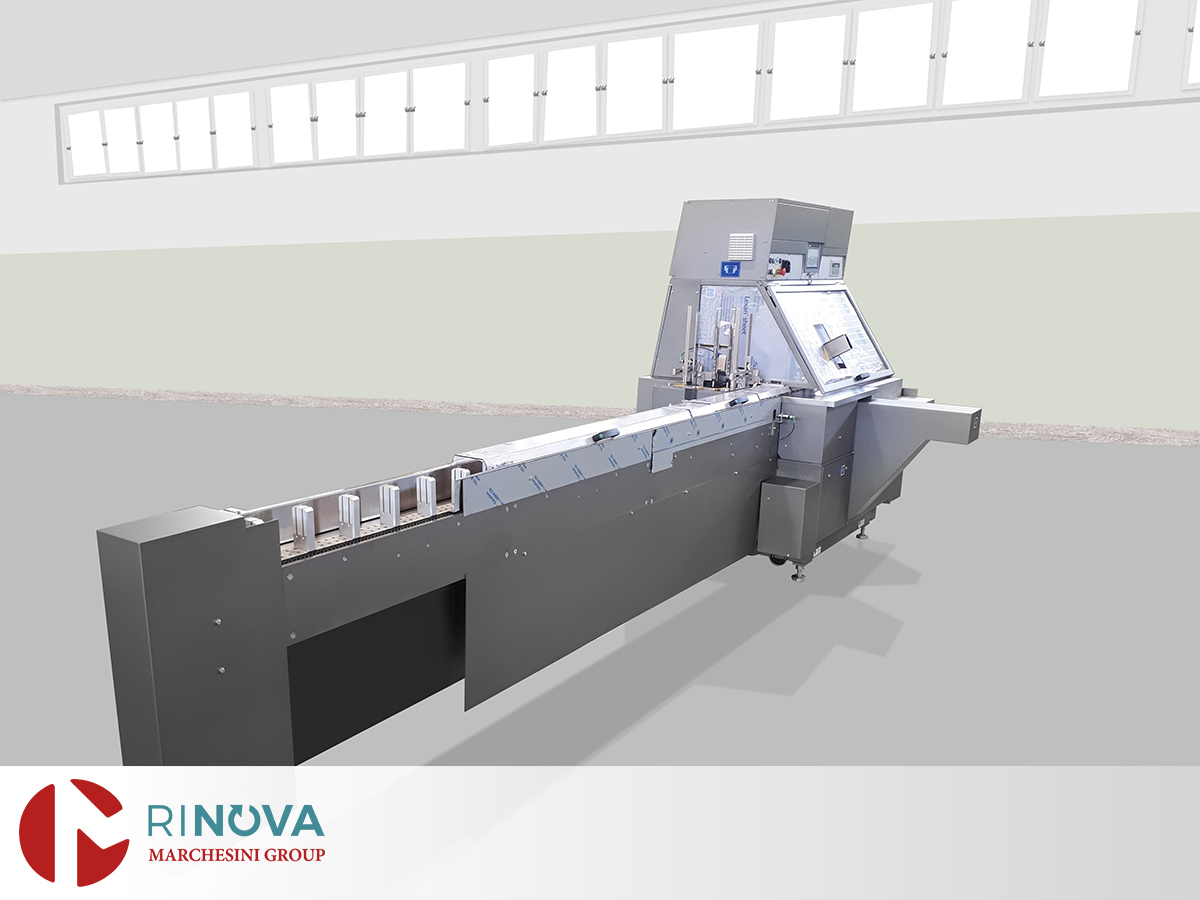

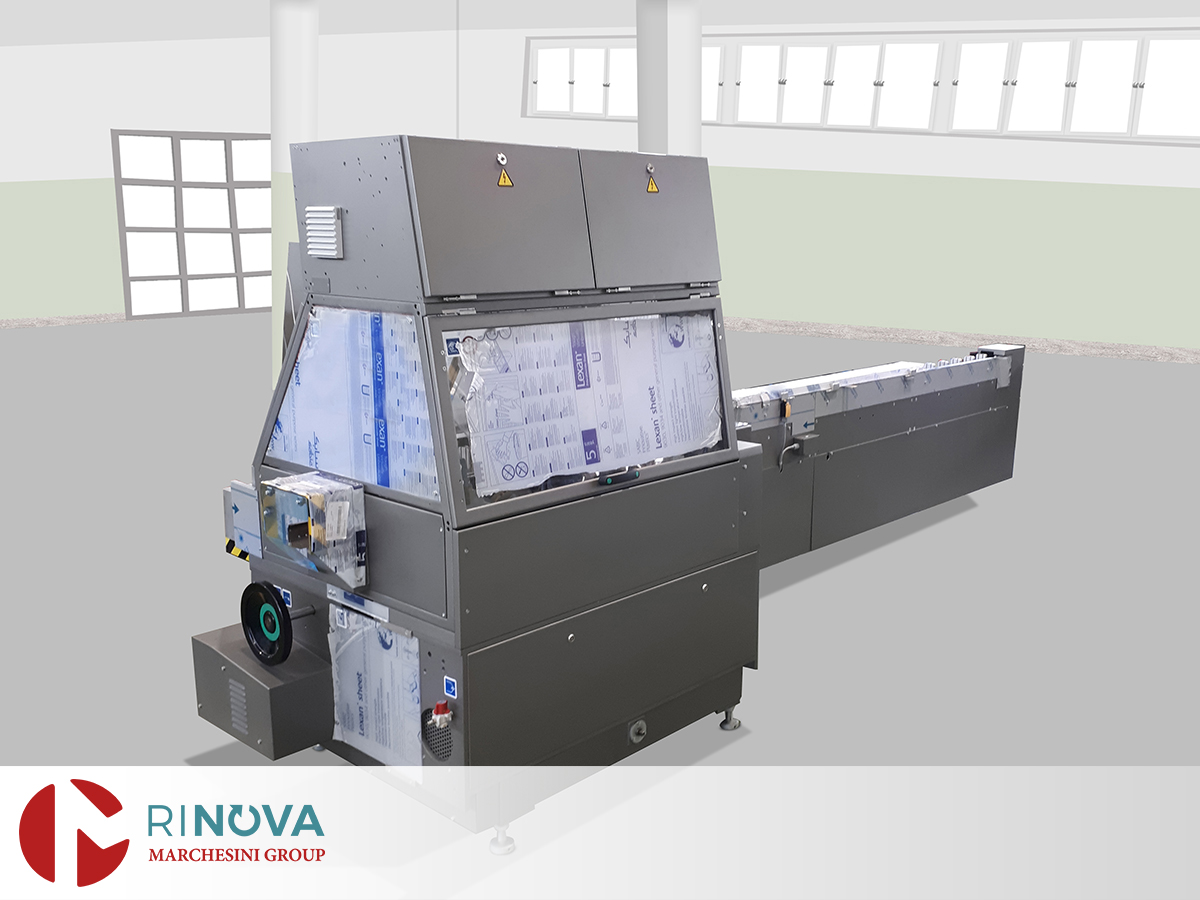

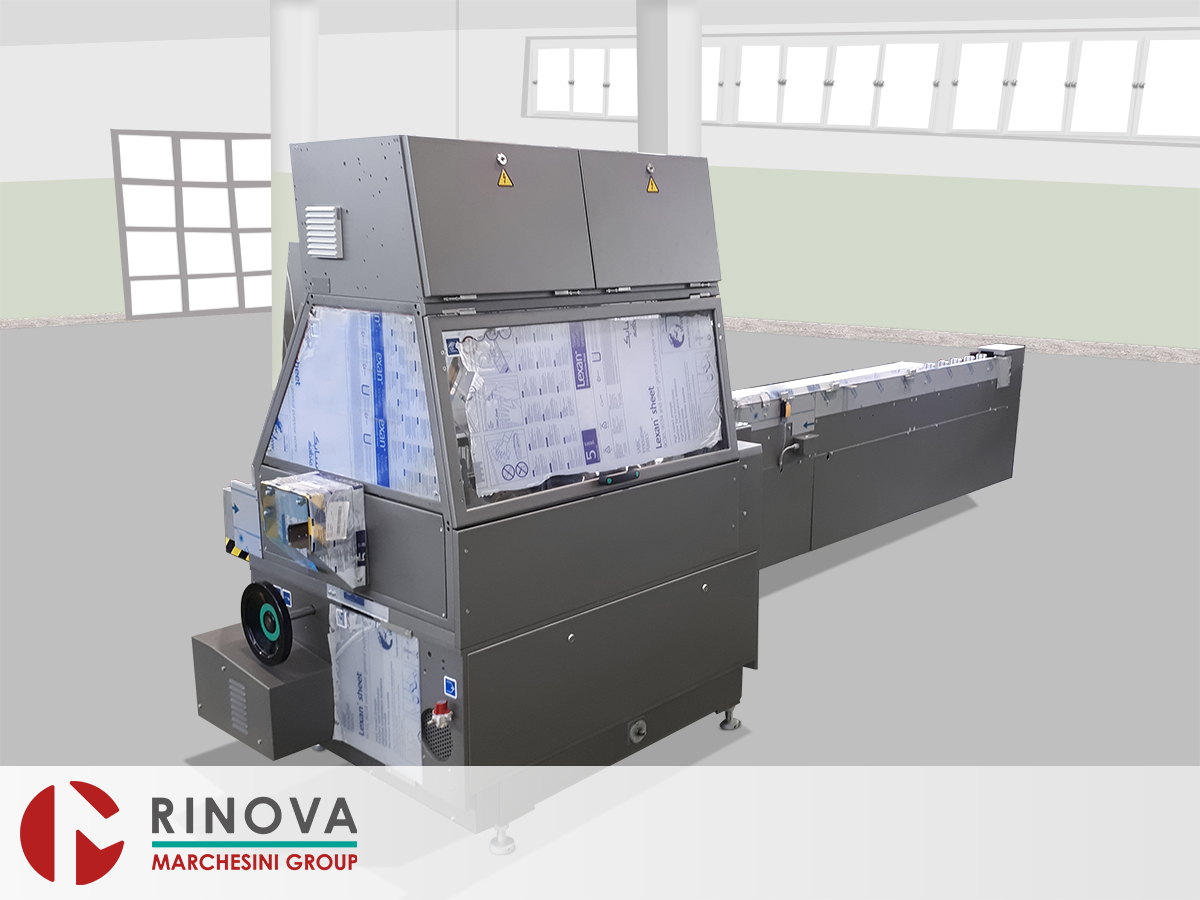

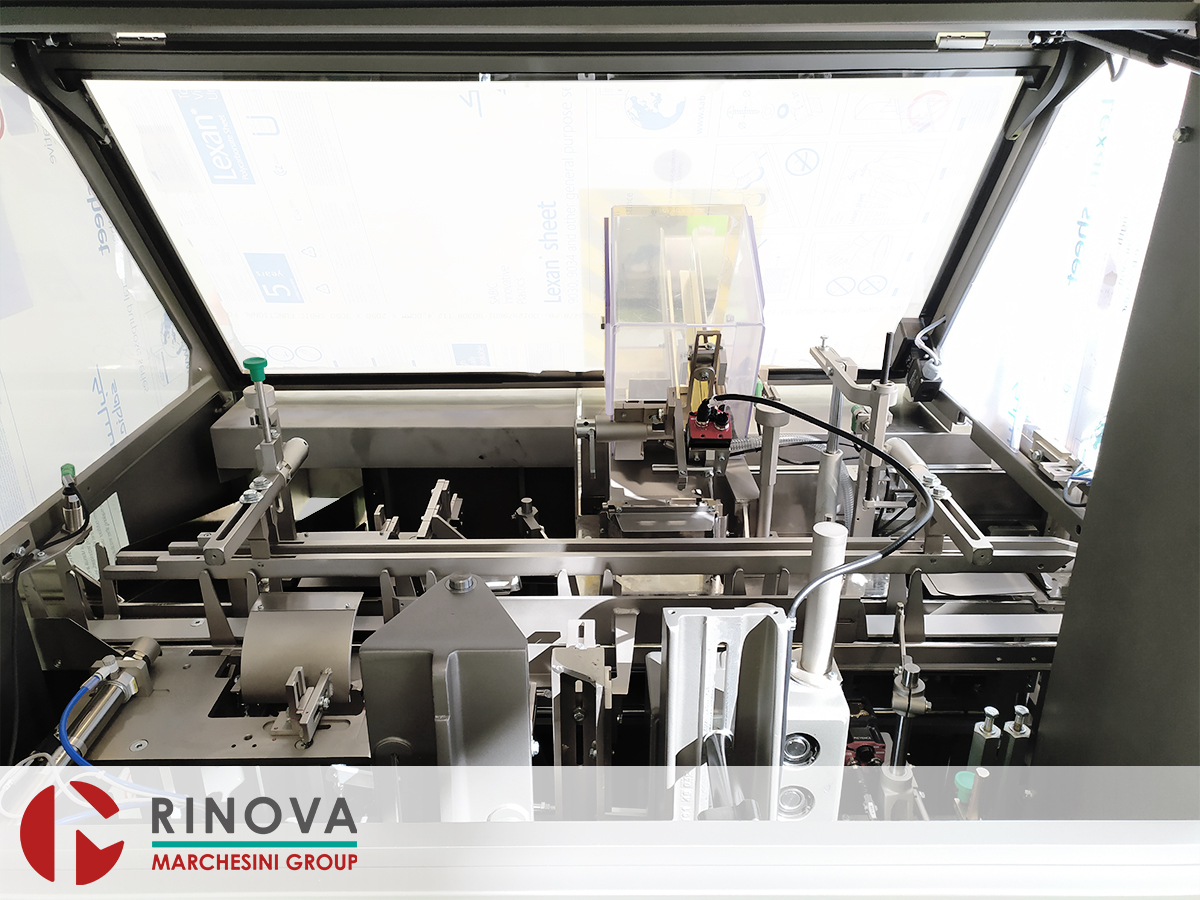

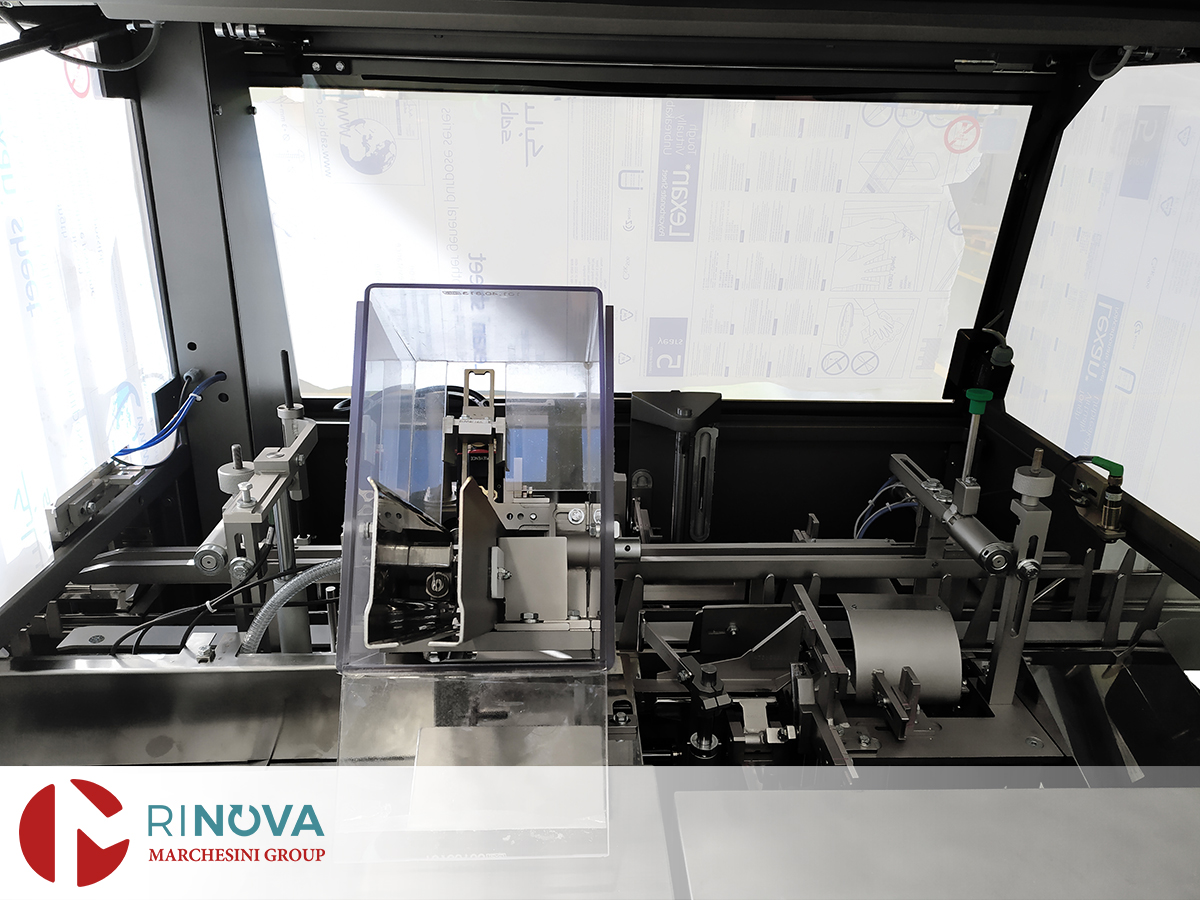

The Marchesini BA 50 is an automatic, intermittent motion machine and horizontal transport of the carton, suitable to open cartons, to insert the product fed in a bucket chain and to close straight or reverse tuck-in flaps then to discharge the cartons at the outfeed.

Machine complete with

  • Siemens motovariator group
  • The lower machine body, separated from the working area, contains the adjustable speed SBC motor and the BECKER dry type vacuum pump

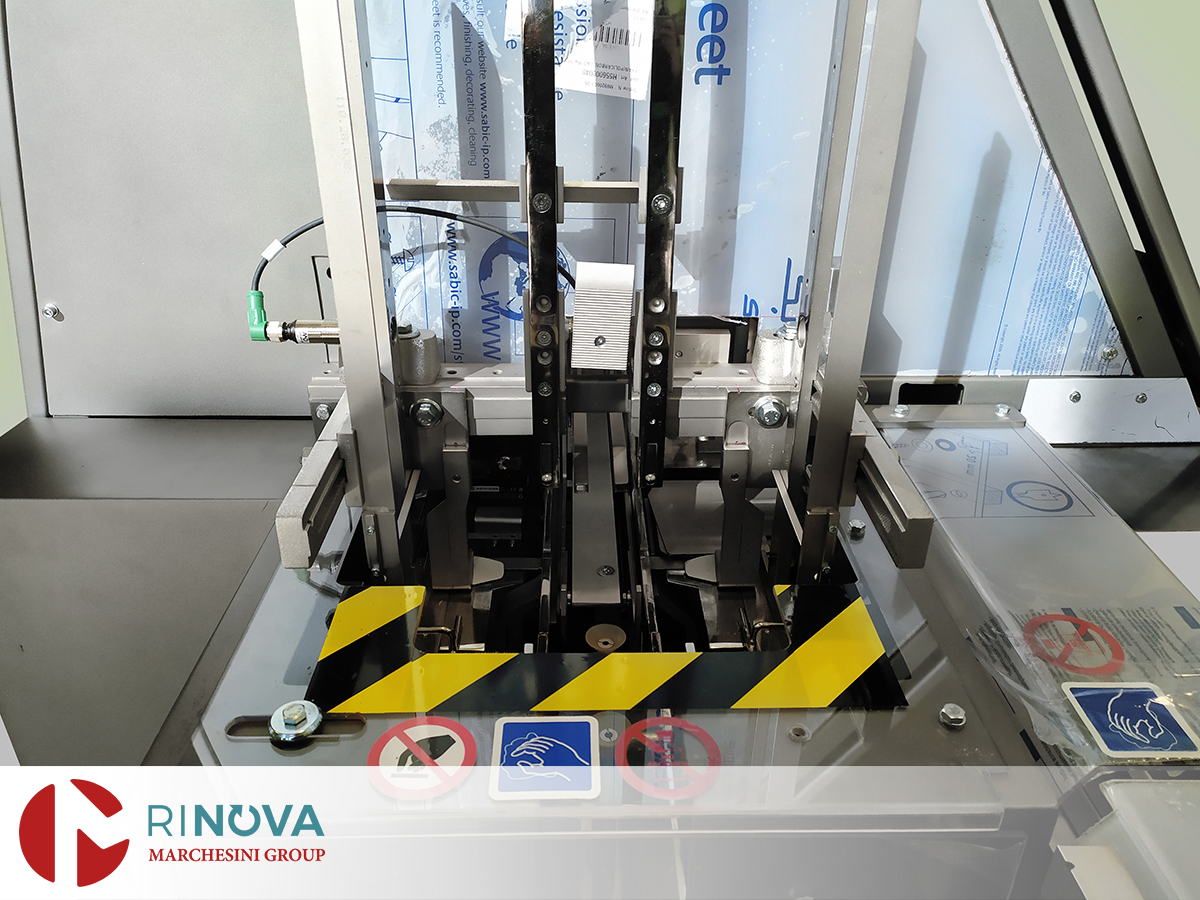

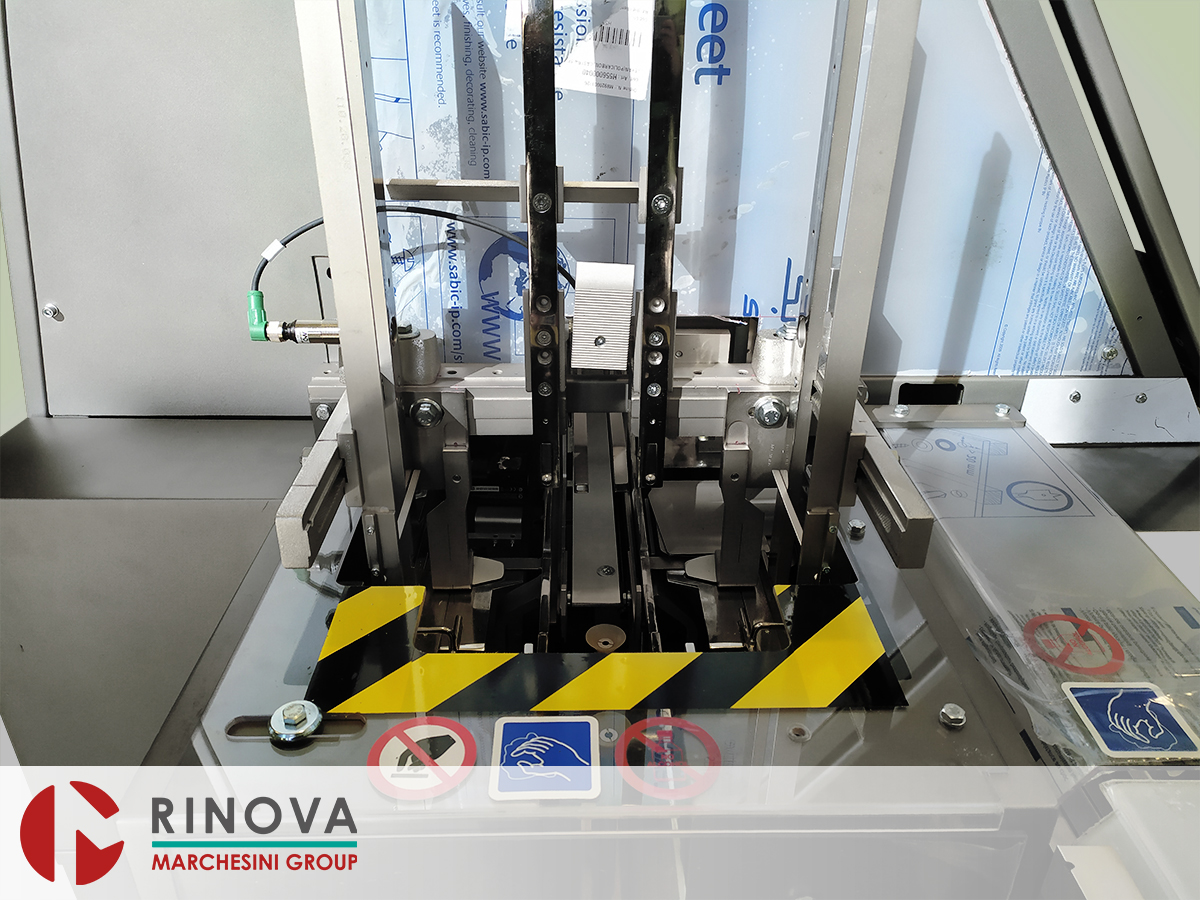

  • Vertical carton magazine placed at approx. 1400mm (55,12”) from floor level, with minimum load control
  • Mechanical drives are contained inside the frame; carton transport has a fixed and a mobile part adjustable to suit the carton length (“h” dimension)
  • Product infeed chain with fixed buckets designed to be connected to various available automatic-feeding units. Infeed and discharge height 860mm +/- 50mm (33,86” +/- 1,96”)

Main Features

The machine design, result of the long term and proven experience of the manufacturer in this field, has made of “BA 50” a reliable and high-quality machine.
Solid frame at reduced dimensions, it is realized in compliance with the safety norms and it is delivered with CE mark.

Installed Safeties

Safety Guard in Methacrylate integrated on the machine frame with safety micro switches on all the opening parts with machine stop in emergency mode and release of the air pressure.
Electronic torque overload control on the main motor with immediate machine stop.
Overload safety on product pusher and machine stop. After clearance, a reset is mandatory.
Machine stop after three consecutive errors.

Technical data

Formats range (the indicated data are for reference only. They are subject to be modified whenever manufacturing needs dictate so)

  • A: Min 40 mm (1,57”) - Max 140 mm (5,51”), pitch 200 mm (7,87”)
  • B: Min 20 mm (0,79”) - Max 80 mm (3,15”)
  • H: Min 70 mm (2,75”) - Max 190 mm (7,48”)
  • The size range is referred to the carton size. Other limitations apply for the products and feeders

Speed

  • Up to 50 cartons/Minute
  • The output always depends on product feeding possibilities, automatic product feeders used, pushers and types of mounted additional accessories

Standard voltage

  • 400 Volts, 3-phase, Neutral & Ground. Frequency: 50 Hertz
  • Electric installations, Panel Layout and wiring according to CE Norms

Electrical system

  • The machine complies with international CE standards and is tested according certified Quality Plan

Electric functions

  • Commanded by an PLC S7-1500 E HMI TP700 (Siemens)

PC control panel

  • Start, stop, reset and emergency push buttons
  • Jog connector
  • Password protected services access
  • Touch screen display to visualize advisory messages to the operator as well as necessary size management selections
  • Function and machine status information
  • Production data: partial hours counter with reset, total hours counter, good products counter, speed indicator
  • Message presentation including services and Help menu
  • Two additional foreign languages can be added to Italian language
  • Conforming to EMC norms (El. Magnetic Compatibility)

Pneumatics

  • SMC

Noise level

  • Not exceeding 80 dB(A)

Technical documentation

  • Original standard CE Instructions Manual (one hardcopy + one CD Rom) and CE Certificate are supplied with the machine
