SL 400 TE

SL 400 TE Automatic labelling machine for cartons

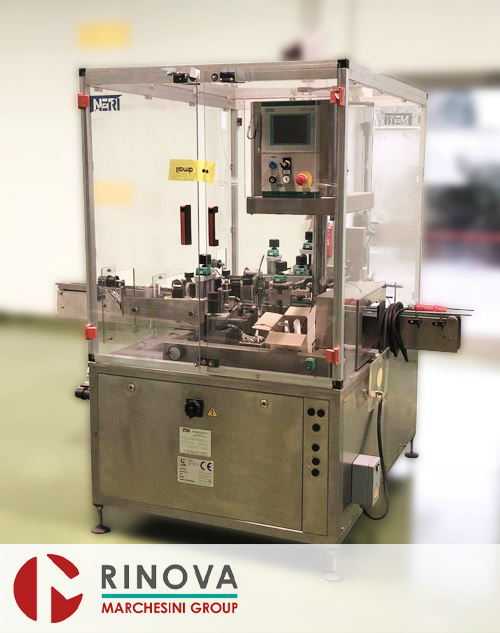

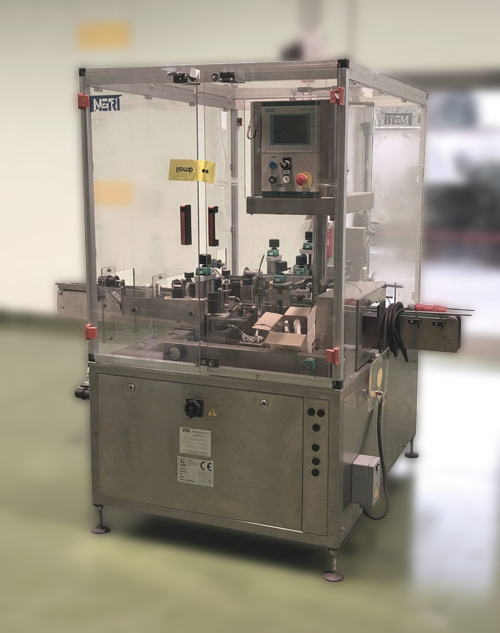

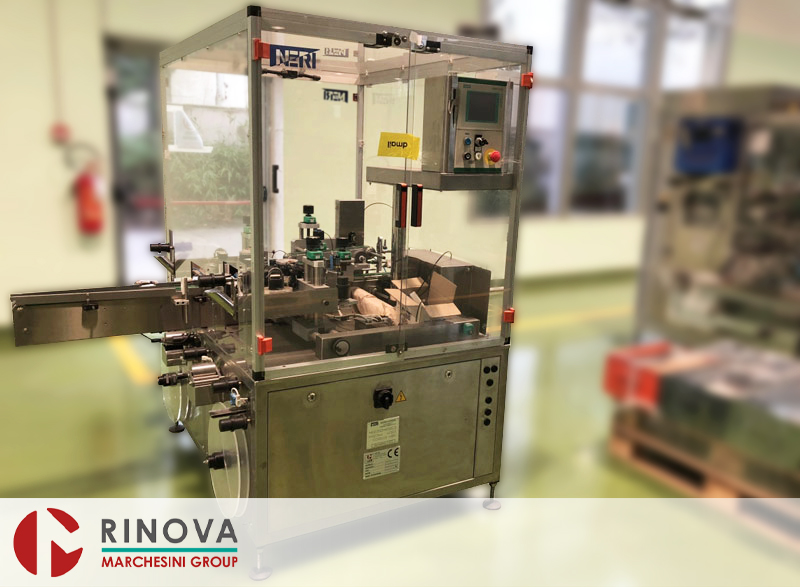

The Marchesini SL 400 TE is an automatic labelling machine for cartons ergonomically designed in such a way as to make all adjustments possible – changes of label reels, of printing tapes, and of size change parts – from the machine’s control side, thus allowing extreme ease of intervention by the operating personnel.

The SL 400 TE can work in-line with other packaging machines, or as free standing units when fitted with required boxes infeed and outfeed devices.

Software, mechanical and electronic parts have been completely refurbished. The machine is CE certified and complies with the existing safety standards.

Main features:

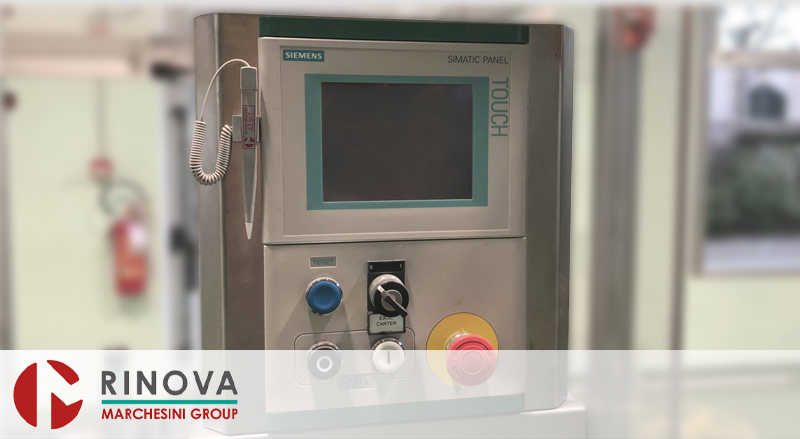

  • Machine equipped with Touch Screen HMI;
  • Labelling machine in stainless steel construction;
  • Machine management with PLC Siemens;
  • Positive logic. Continuous mode speed adjustment;
  • Automatic unwinder with adjustable movement;

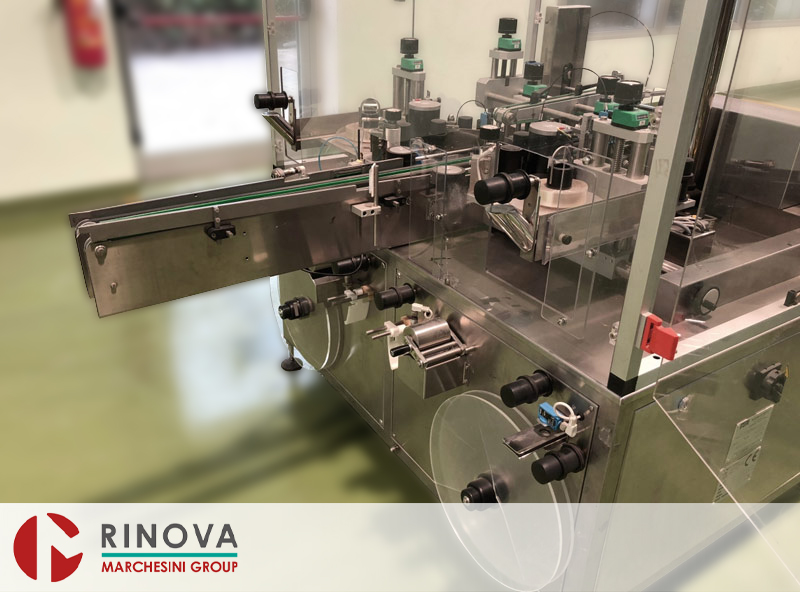

  • Cartons spacing devices;

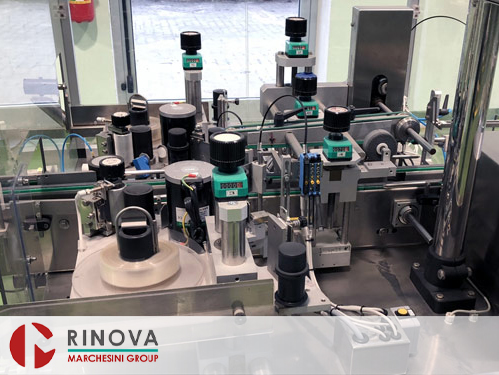

  • Label dispensing with stepping motor drive;
  • Label dispensing unit with vertical and horizontal micro-metric adjustments;
  • Label length self learning system;
  • Label support paper rewinding unit equipped with mechanical clutch;
  • Motors automatic speed synchronization;
  • Self diagnosis on HMI. Safety devices in accordance with CE regulations.



Technical data

Formats range

  • Quote A carton: min 20 mm - max 120 mm
  • Quote B carton: min 13 mm – max 120 mm
  • Quote H carton: min 65 mm – max 250 mm

Vignette

  • Vignette height: min 20 mm – max 60 mm
  • Vignette length: min 15 mm – max 80 mm

Maximum reel diameter

  • 400mm

Seals

  • height: min 15 mm – max 30 mm
  • lenght: min 15 mm – max 60 mm

Tension

  • 400V 50Hz

Air Consumption (6 bar)

  • 20 NL/1’

Label speed (up to)

  • 50 m/min

Maximum rate

  • 500 pz/min
