ML 616

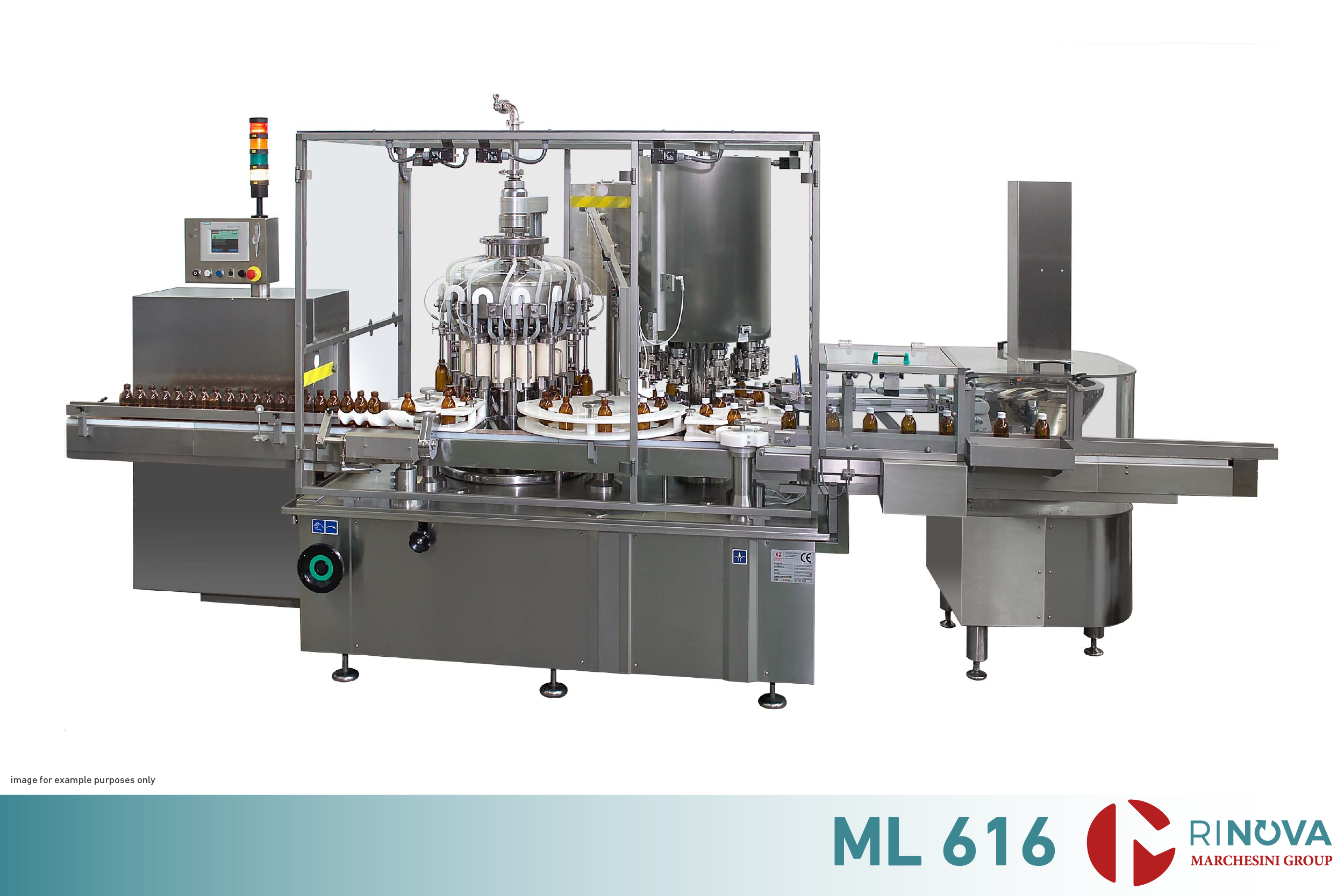

ML 616 High speed rotary filling and capping monobloc

The Marchesini ML 616 is an high speed rotary monobloc machine, suitable to fill and cap vials, equipped with one turret with 12 filling heads and one or two capping turrets with 9 heads each according to the kind of product to be handled.

The ML 616 main characteristics are great flexibility, dosing accuracy, compact layout and high performances. This series is designed for the pharmaceutical sector and complies with strict GMP rules.

Software, mechanical and electronic parts have been completely refurbished. The machine is CE certified and complies with the existing safety standards.

Main characteristics:

  • The machine frame encloses the transmission gears, it is made of stainless steel and it is completely separated from the working area.
  • The through tabletop conveyor, for the bottle inlet and outlet, is made of stainless steel, with adjustable guides and independent control.
  • The parts in contact with the product are made of 316 L stainless steel.
  • Clean design (no sharp edges or dead points) allowing a very easy cleaning by the operator.
  • The electrical system & safety devices comply with current CE standards.



Technical data

Dosing range

  • 1-500 ml

Installed power

  • 5 Kw

Air consumption

  • 100 NL/min (6bar)

Indicative weight

  • 2600 Kg
