MA 305

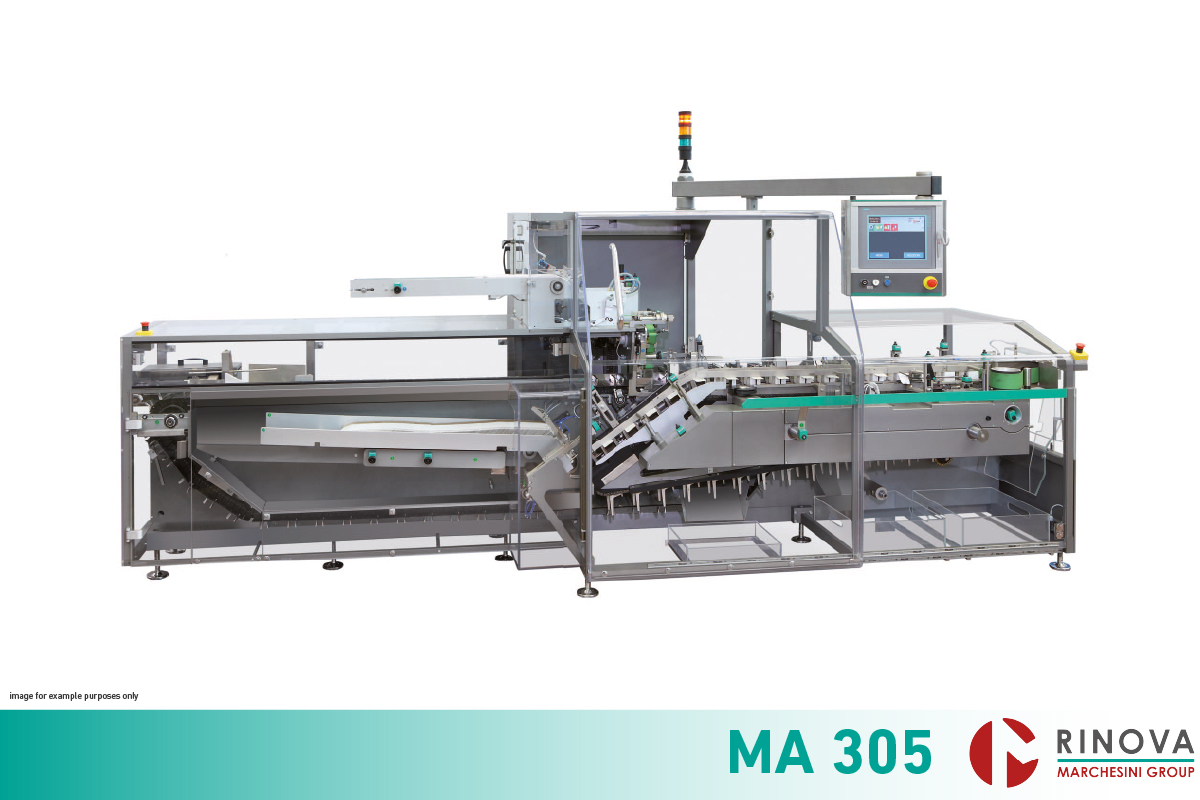

MA 305 Continuous motion horizontal cartoner

The Marchesini MA 305 is a continuous motion horizontal cartoner, entirely made with balcony construction, designed around three basic concepts: versatility, ergonomics and maximum efficiency in a small footprint. Because of its characteristics it is the ideal solution for packaging cosmetic and pharmaceutical products.

Software, mechanical and electronic parts have been completely refurbished. The machine is CE certified and complies with the existing safety standards.

Main features:

  • Balcony construction, as per GMP norms
  • All feeding groups are located in ergonomic position, in order to make the loading easy for the operator
  • All main drive mechanism are in oil bath, thus reducing maintenance and noise level
  • Easy and fast changeover, entirely made from operator side
  • Touch Screen control panel, for operator interface and machine management
  • Self diagnosis and help functions
  • Possibility to install an automatic pre-folded leaflet feeder, or a GUK unit (optional), always in an easy and accessible position for the operator
  • Wide selection of coding systems: embossing, ink-jet, laser etc. (optional)



Technical data

Maximum mechanical speed

  • up to 240 (pcs/min)
  • The production speed is always dependent on the possibility of feeding and characteristics of the product as well as on the configuration of the product, as well as on the accessories added to the standard machine

Installed power approx.

  • 5 kW

Approx. net weight

  • 2400 Kg

Noise level

  • <80 dB
