MA 50

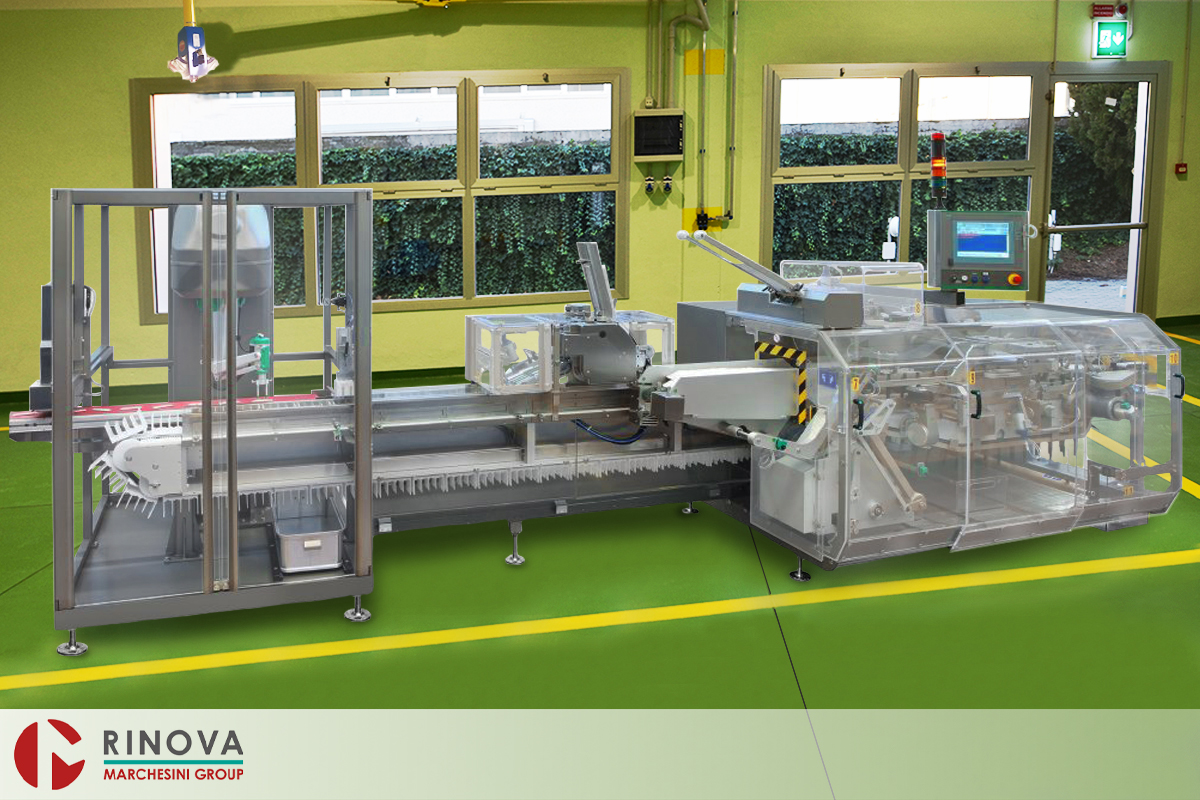

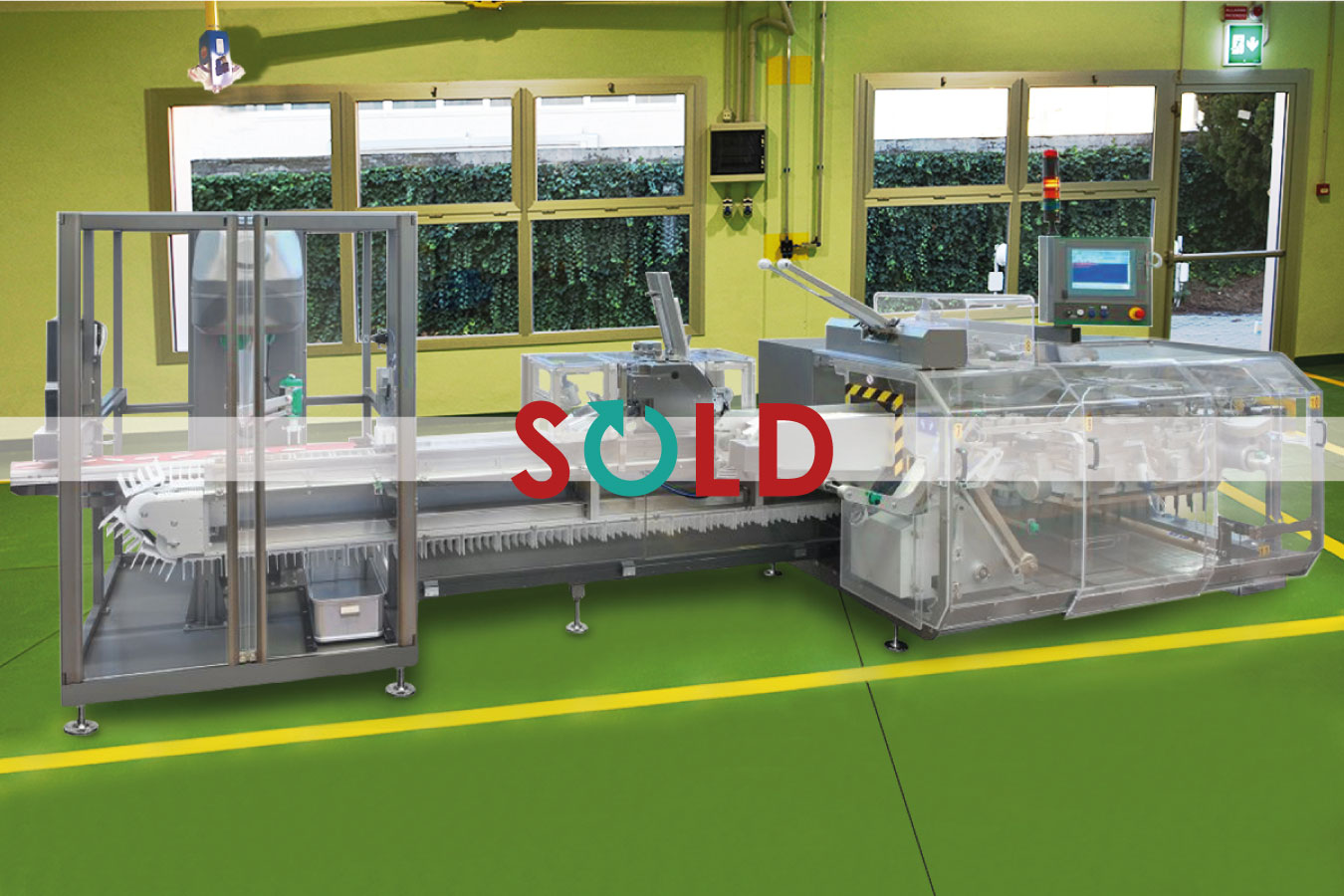

MA 50 Intermittent motion cartoner

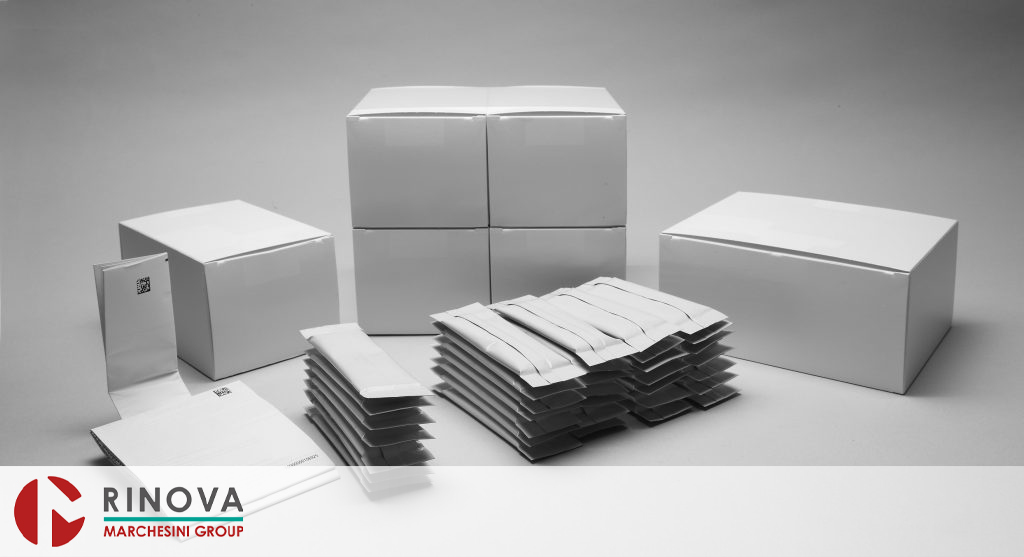

Marchesini MA 50 is an intermittent motion automatic machine with horizontal transport of the carton, suitable for packing products into three-flaps straight or reverse tuck-in cartons.


Main Features

  • Design, manufacturing and ergonomics, in accordance with cGMP norms;
  • Versatility and efficiency in a small footprint;
  • Balcony design to improve accessibility, maintenance and cleaning operations;

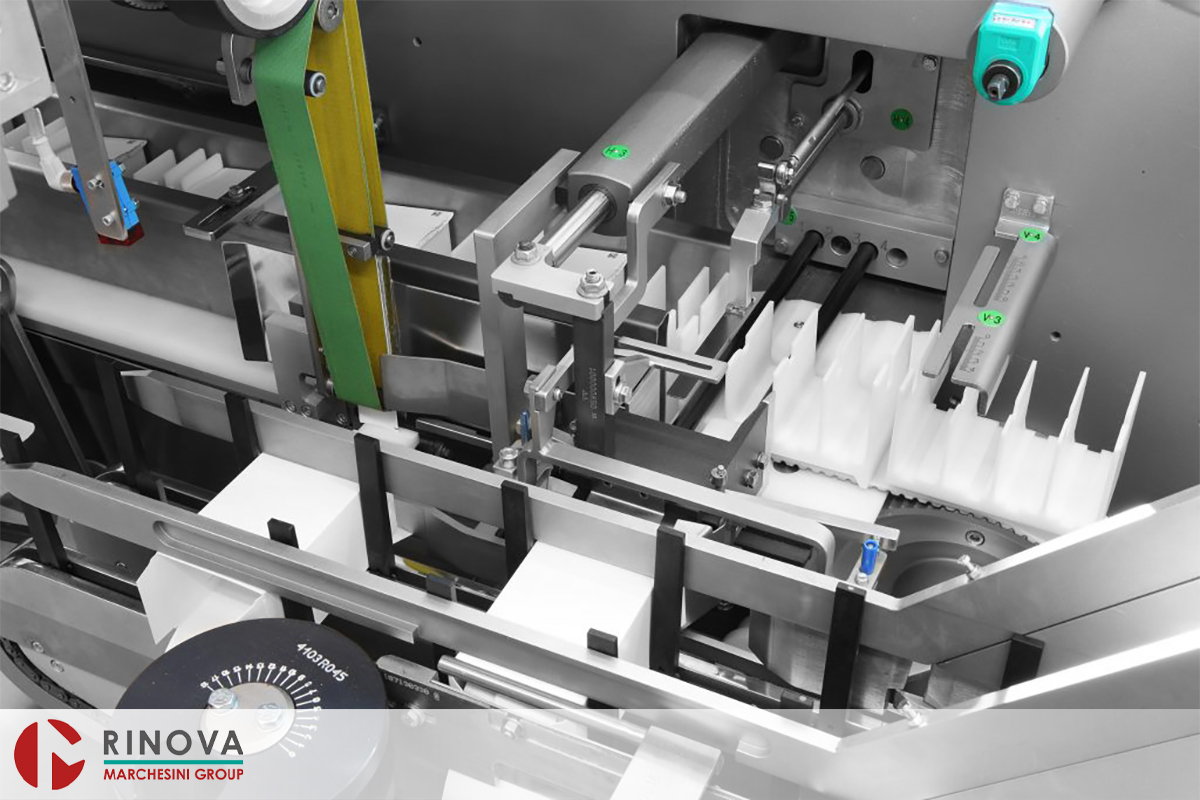

  • Cartons transport and closing movements running in oil bath, enclosed in two drive boxes;
  • Working zone on operator side, separated from the rear of the machine;
  • Main drive consisting of 2 servo motors (one for the machine and one for the conveyor drive), both operating synchronized through electric axe;
  • Cartons transport system with adjustment (“a” carton quote) from a single point of intervention, through handwheel and digital indicators;
  • Adjustment of carton length (“h” dimension), by widening the belt transport system, through handwheel and digital indicators;
  • Separated removable bins for collecting rejected products, cartons and leaflets;
  • Easy and quick size changeover through digital indicators and millimeter scales.
  • CE marking.


Product Feeding

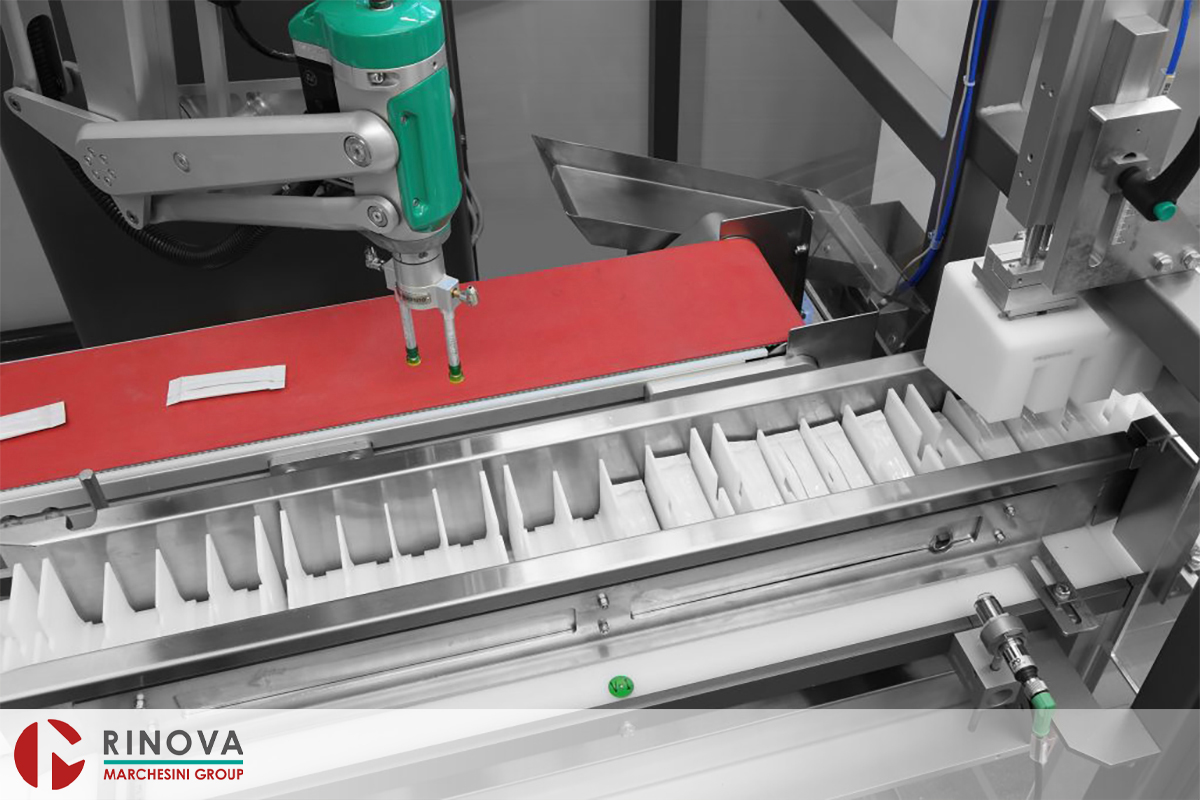

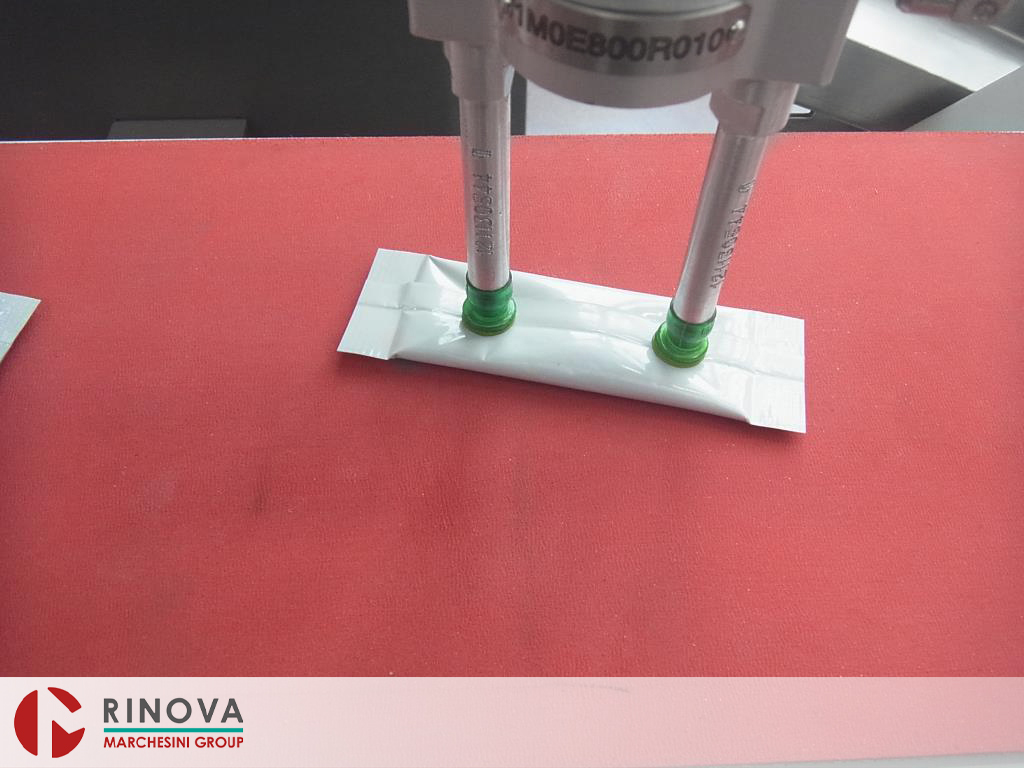

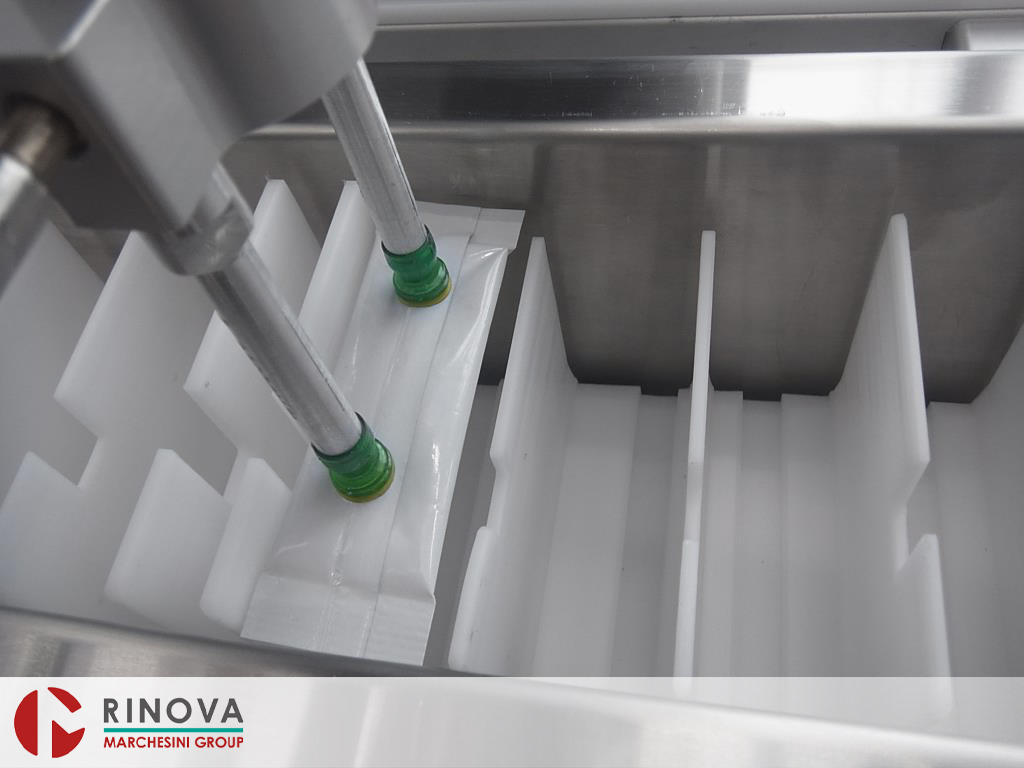

  • Product bucket infeed belt with robot feeding unit;
  • Simultaneous adjustment (related to product width) of all infeed buckets from a single point of intervention, by means of a dedicated tool and millimeter scales.

Technical data

Installed power (basic machine):

  • 5 kW

Compressed air consumption (basic machine):

  • 20 Nl/1’ - 6 bar

Approx net weight:

  • 2000 Kg
