MA 305

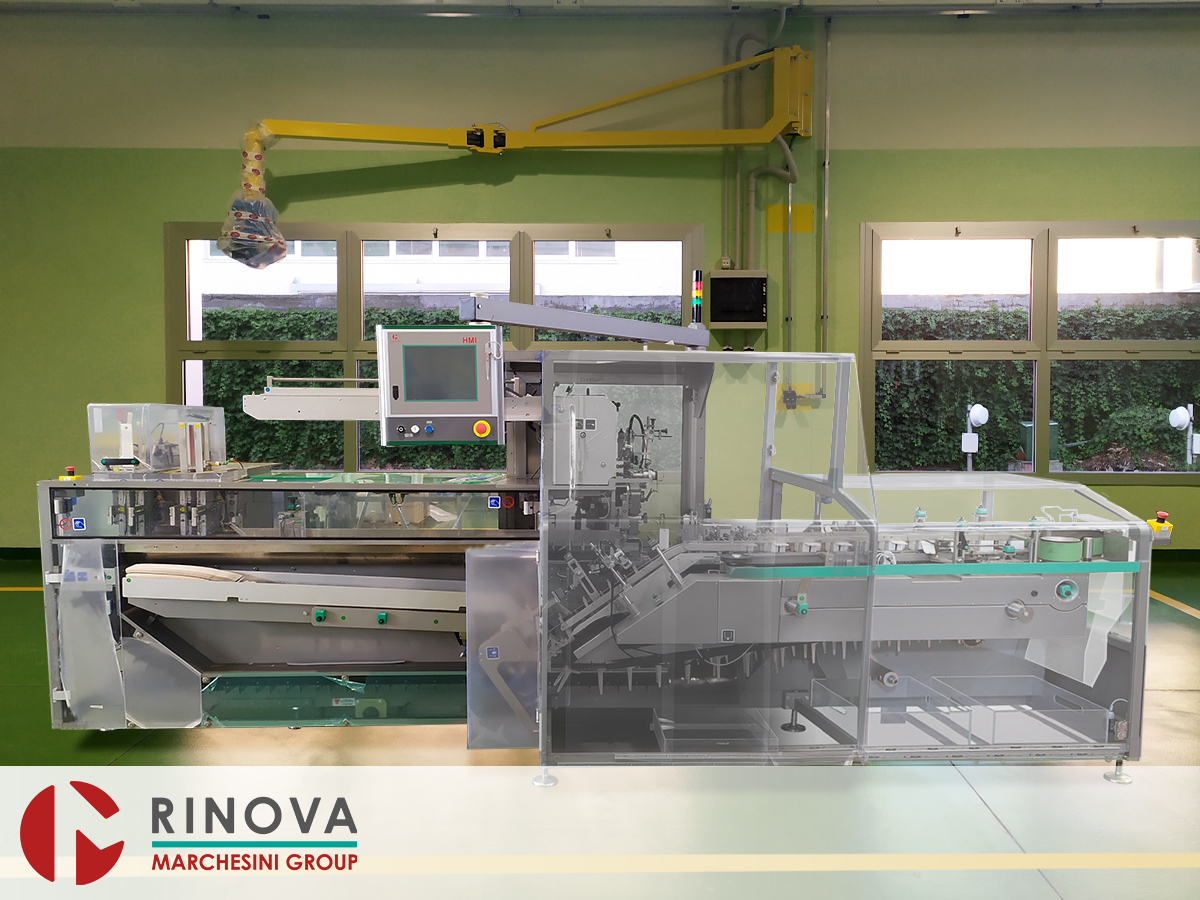

MA 305 Continuous motion horizontal cartoner for blisters

The Marchesini MA 305 is a continuous motion horizontal cartoner for blisters, entirely made with balcony construction, designed around three basic concepts: versatility, ergonomics and maximum efficiency in a small footprint. Because of its characteristics it is the ideal solution for packaging cosmetic and pharmaceutical products.

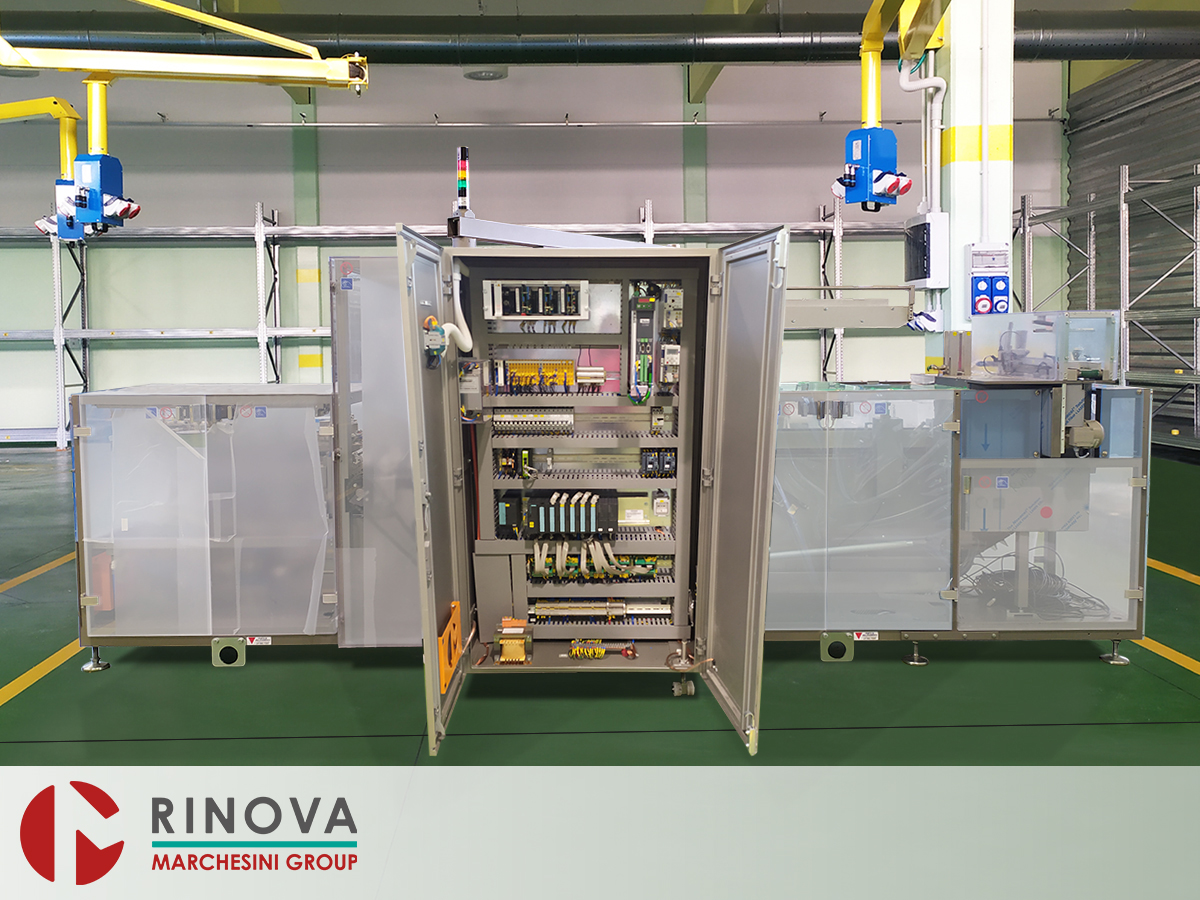

The mechanical parts have been completely refurbished, while the electronic parts and software are newly designed and built. The machine is sold with a new certification CE, complies with current safety standards, accompanied by all the dedicated manuals and customized format change cards.

Main features

  • Balcony construction, as per GMP norms;

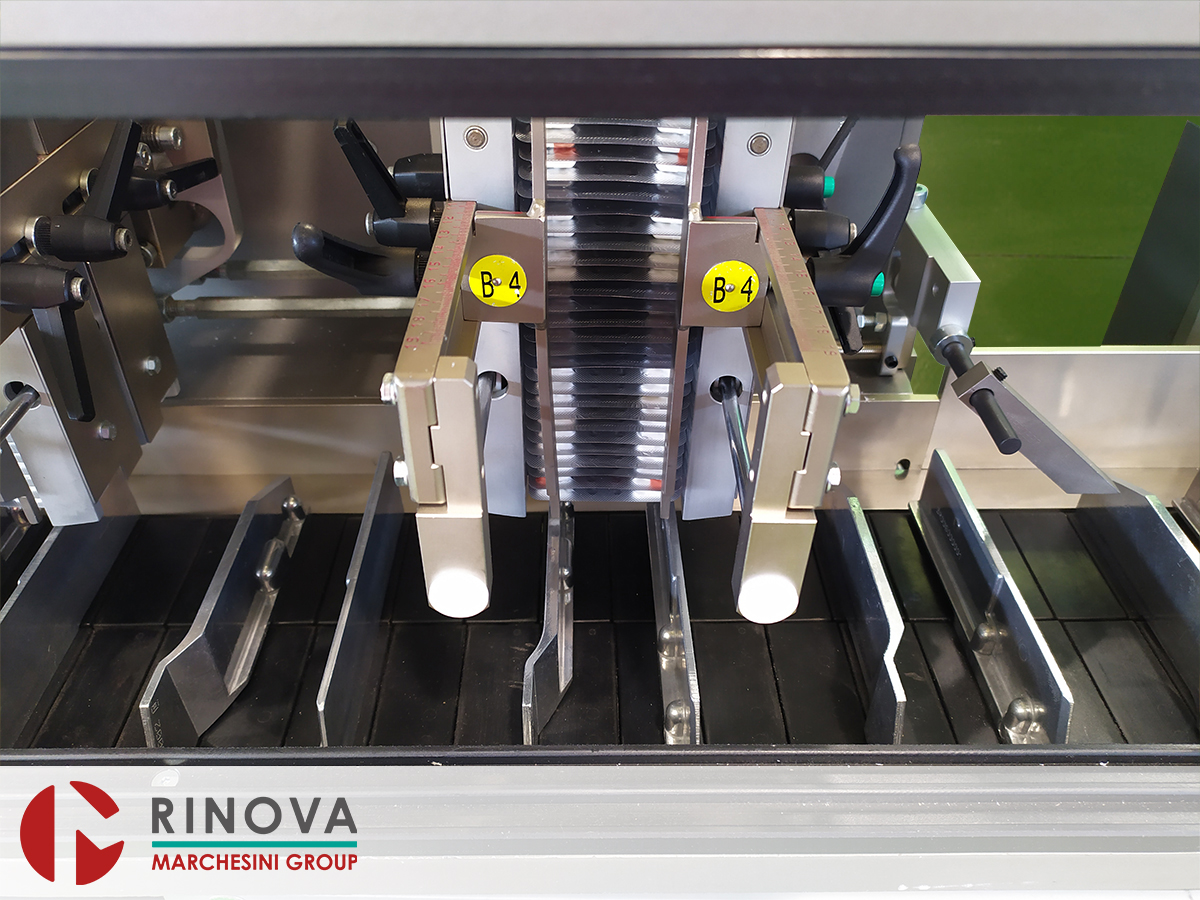

  • The blister group is located in an ergonomic position;
  • All main drive mechanism are in oil bath, thus reducing maintenance and noise level;
  • Easy and fast changeover, entirely made from operator side;

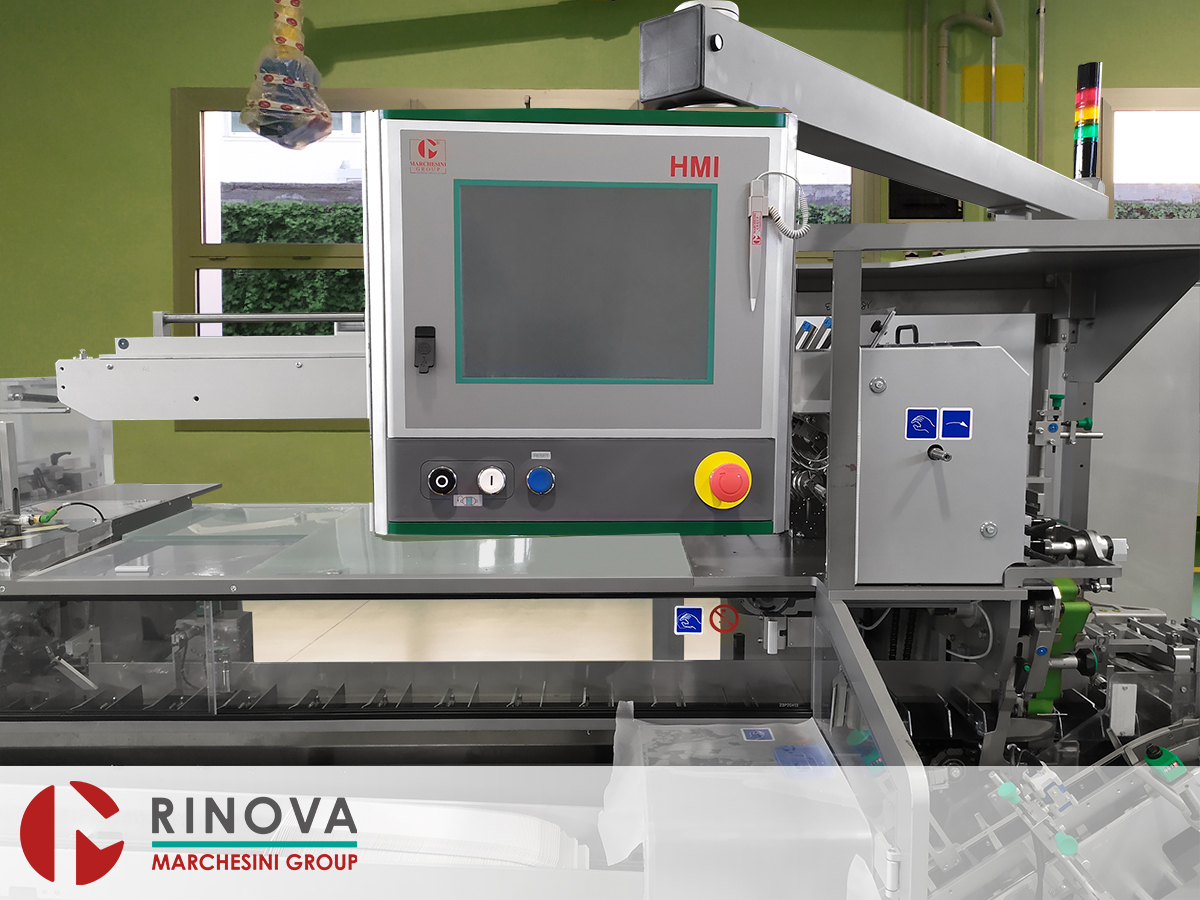

  • Touch Screen control panel, for operator interface and machine management;
  • Self diagnosis and help functions;
  • Polypenco engraving marking system;

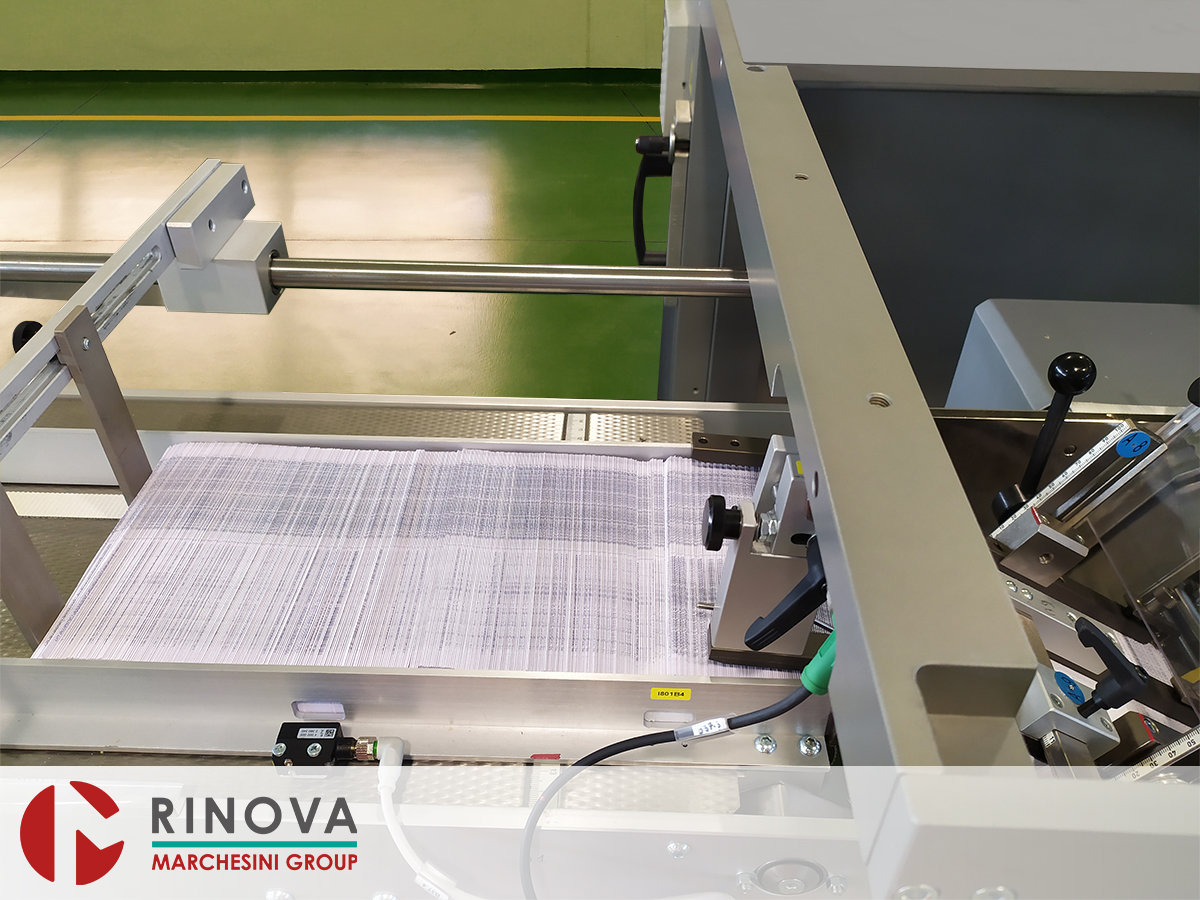

  • Fast pre-folded prospectus warehouse with GUK strips;
  • Case numerator in PM.

Technical data

Format

  • A: Min 25 mm - Max 100 mm
  • B: Min 15 mm - Max 85 mm
  • H: Min 65 mm - Max 150 mm

Maximum mechanical speed

  • up to 240 pcs/min
  • The production speed is always dependent on the possibility of feeding and characteristics of the product as well as on the configuration of the product, as well as on the accessories added to the standard machine

Installed power approx.

  • 5 kW

Approx. net weight

  • 2400 Kg

Noise level

  • <80 dB
