MA 155

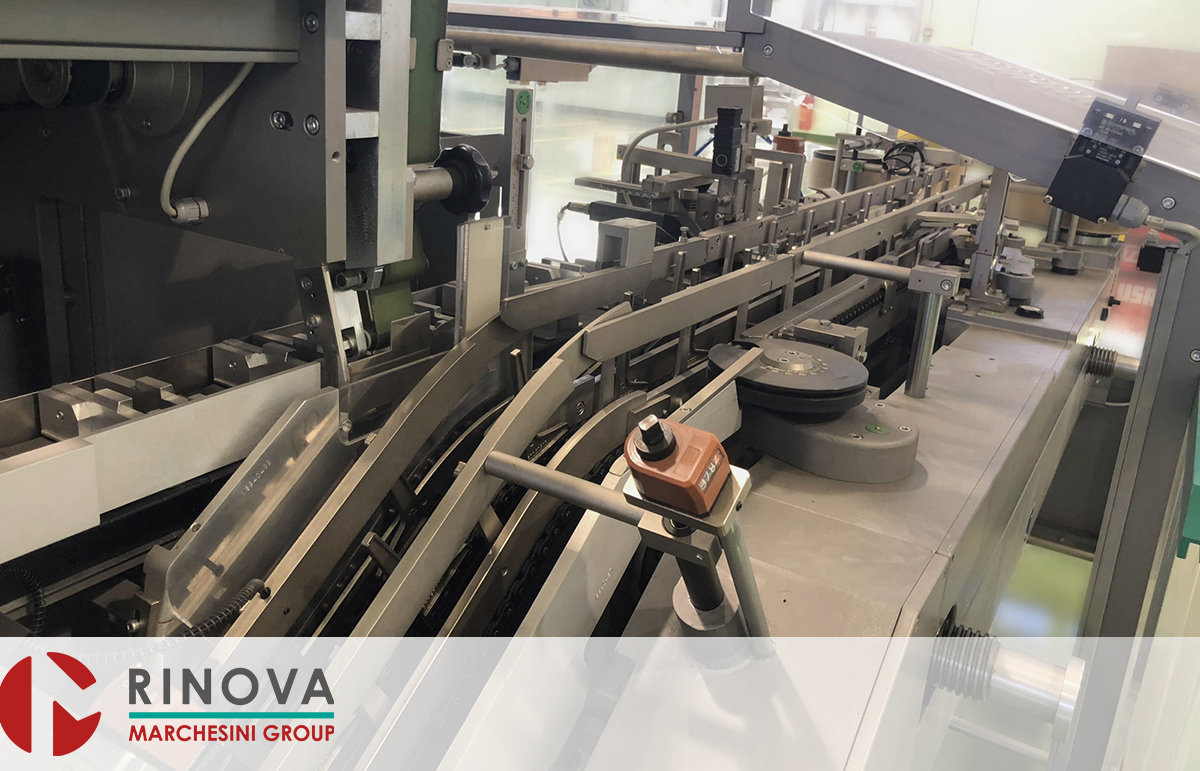

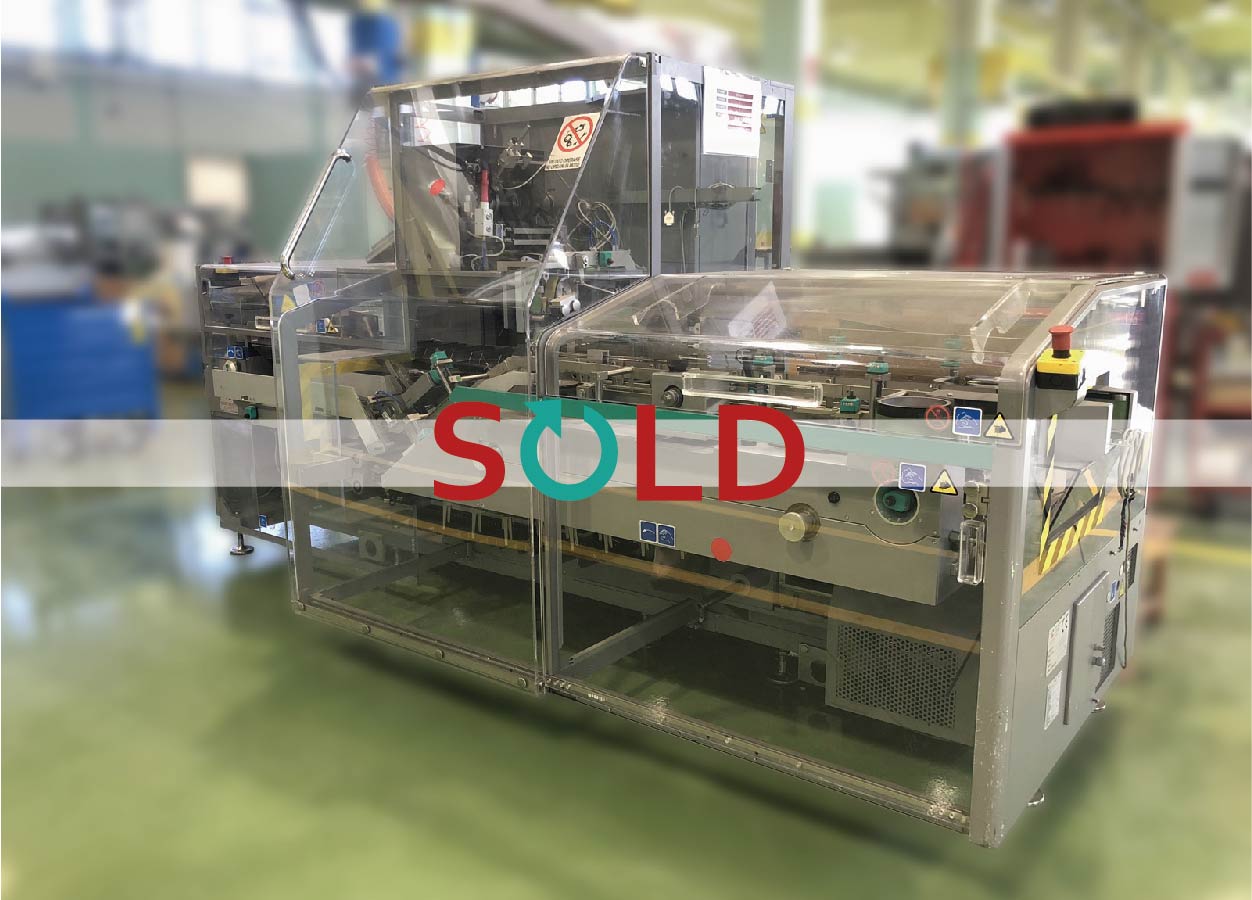

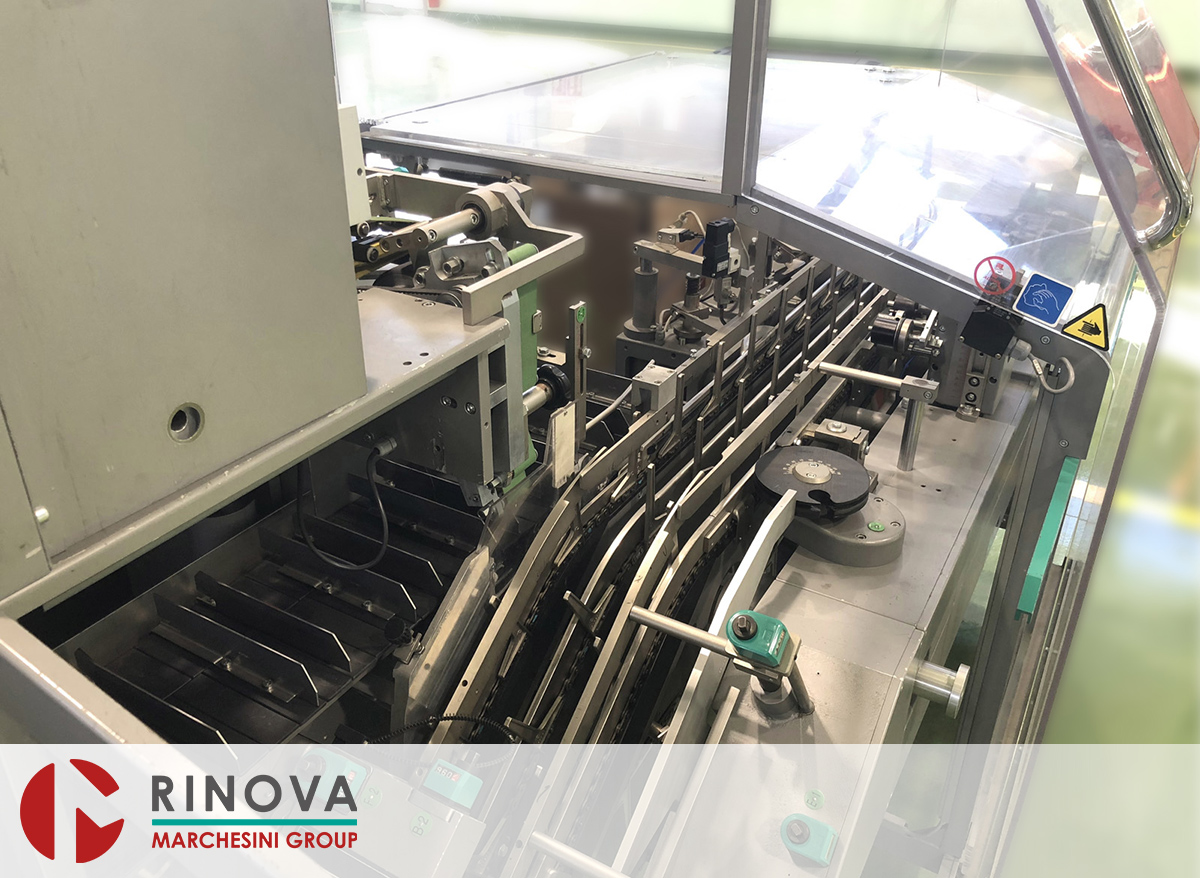

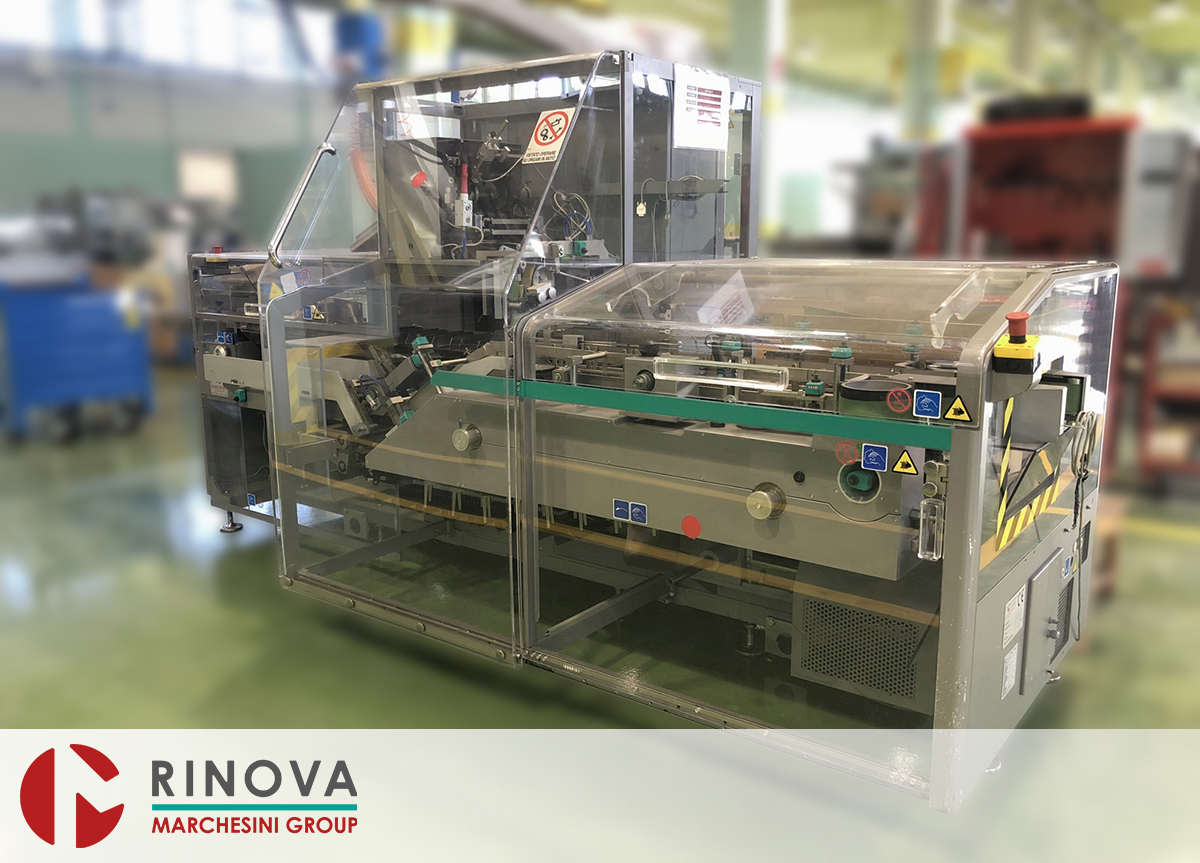

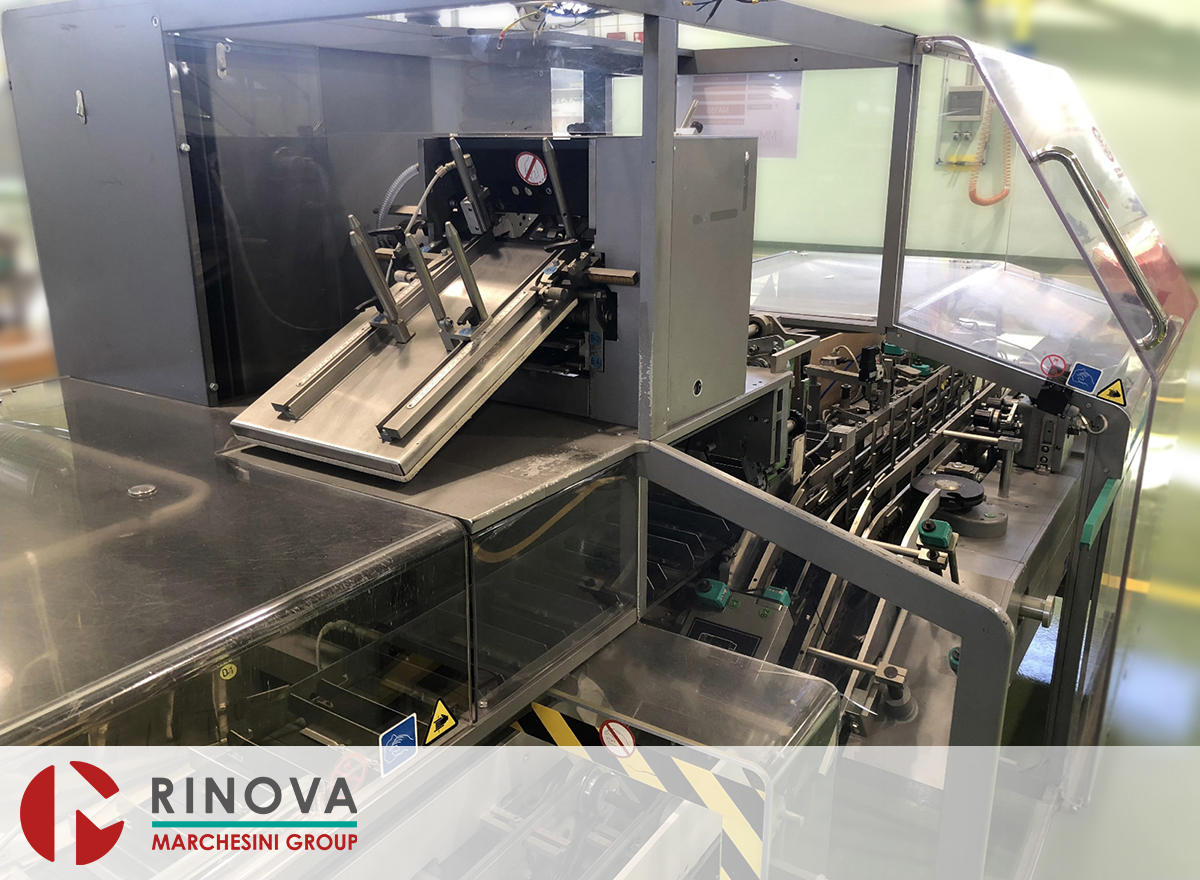

MA 155 Continuous motion cartoner

The Marchesini MA 155 is a continuous motion horizontal cartoner, entirely made with balcony construction, designed around three basic concepts: versatility, ergonomics and maximum efficiency in a small footprint. For its characteristics it is an ideal solution for packaging cosmetic and pharmaceutical products.

Software, mechanical and electronic parts have been completely refurbished. The machine is CE certified and complies with the existing safety standards.

Main features:

  • Machine equipped with Touch Screen HMI;
  • Balcony construction, as per GMP norms;
  • All the feeding groups are located in ergonomics position, to make the loading easy for the operator;
  • All main drive mechanism are in oil bath, thus reducing maintenance and noise level;
  • Easy and fast changeover, entirely made from operator side;
  • Touch Screen control panel, for operator interface and machine management;
  • Self diagnosis and help functions against possible inconvenience;
  • Possibility to install an automatic pre-folded leaflet feeder, or a GUK unit (Opt), always in an easy and accessible position for the operator;
  • Wide selection of coding systems: embossing, ink-jet, laser etc.

Technical data

Formats range

  • A: Min 25 mm - 100 mm
  • B: Min 15 mm - 85 mm
  • H: Min 65 mm - 190 mm

Maximum mechanical speed

  • up to 120 cartons per minute
  • The production speed is always dependent on the possibility of feeding and characteristics of the product as well as on the configuration of the product, as well as on the accessories added to the standard machine

Tension

  • 380V 50Hz

Air consumption (6 bar)

  • 10 NL/1’
