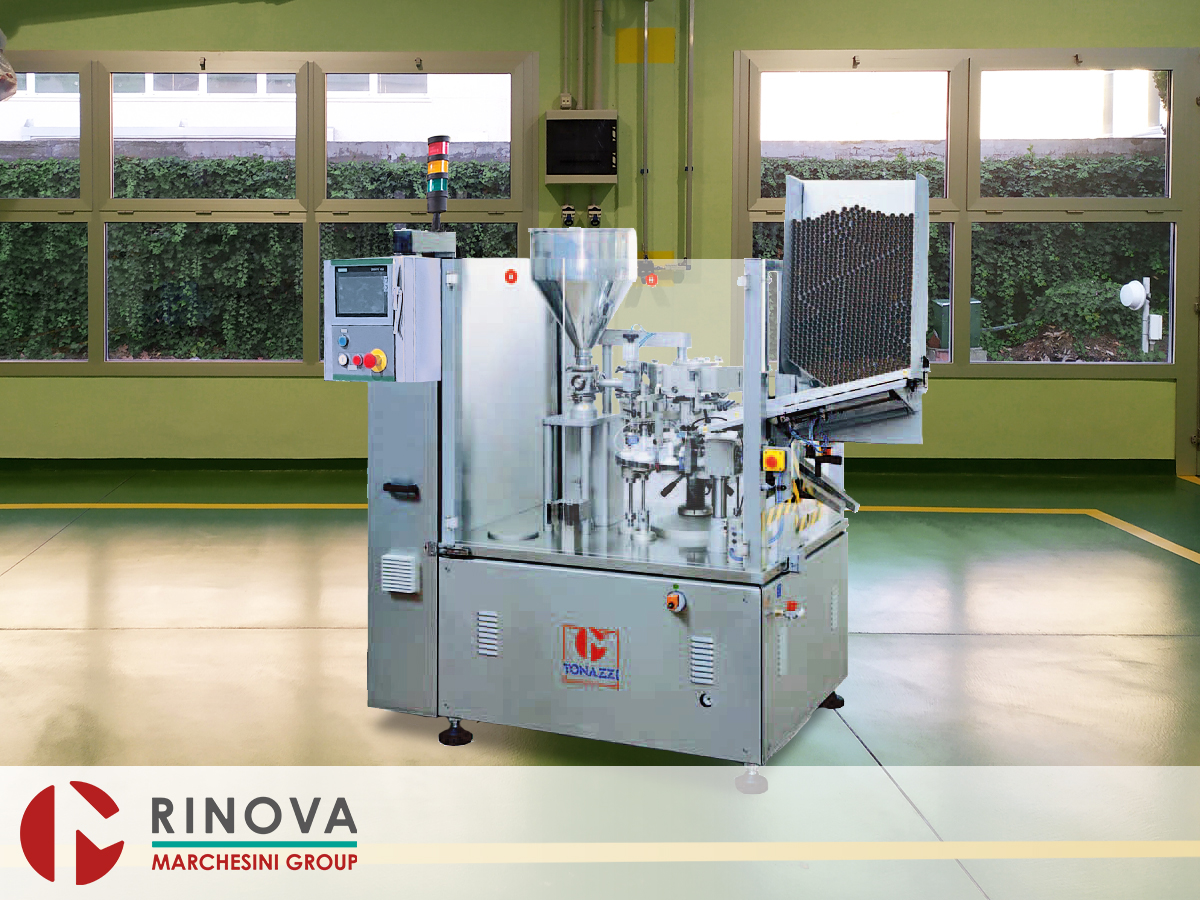

Colibri-1001 Tonazzi automatic tube filler
The Tonazzi Colibri-1001 is an automatic tube filler suitable to fill and close aluminium, polyethylene and laminated tubes.
Main features
- AISI 304 stainless steel machine body and bottom covers
- AISI 304 stainless steel removable covers to easily reach inside parts
- Electronic speed variator with digital setting of machine speed
- Safety coupling to protect mechanical members
- Parallel index drive similar to Ferguson
- Anticorrosion treated upper parts
- Electronic control and safety systems controlled by a Programmable Logic Control (PLC S7-300 SIEMENS)
- SIEMENS “TP700” interactive display of machine functions and alarms provided with on-line help to solve minor problems; advanced control of adjustments, such as:
- Machine speed
- Product tail cut-off
- Counter
- Storage of operation parameters to form a collection of recipes of the different products filled on the machine
- 12-position turntable with twin tube holders
- AISI 316L stainless steel infeed hopper, 40-liter capacity
- Automatic high capacity tube feeder, Mod “JUMBO”
- Control of the presence of tubes having a wrong position on tube loading chute (capsized tubes)
- Device to pneumatically hold tubes during transfer into tube holders
- Pusher assembly ensuring tubes are properly positioned in relevant tube holders and consequently perfectly closed
- Automatic tubes registration assembly with photocell and potentiometer to delay tubes stop in its correct position
- AISI 316 L stainless steel volumetric dosing group with Tri-Clover connections
- Mechanically operated dose adjustment enabling variations without machine stops
- fixed injector with pneumatically operated nozzle-closing valve cutting product tail off and avoiding product leaks
- Tubes bottom-up fill device lifting tubes holder during filling phase with an adjustable and progressive stroke of approx 135 mm
- Device to stop the dosage if the tubes are missing (no-tube – no-fill)
- One filling nozzle
- One dosing piston
- Control of non-ejected filled tubes stopping machine and enabling to remove a non-ejected ones
- Device to stop tubes loading enabling to discharge tubes present on turntable before any planned machine stop
- Safety guards in methacrylate with micro switches
Technical data
Filling accuracy
- ± 1% for non-aerated products
- The actual filling accuracy depends on the product characteristics and the volume to be dosed
Maximum mechanical speed
- up to 80 Tubes/Minute
- The machine output depends on the tube capacity and diameter, tube wall thickness, quality and color of the plastic material and on the type of product to be handled
Dosage
- From 3 to 44 ml
Tubes diameter
- From 10 to 25 mm max
Tubes height with cap
- From 50 to 140 mm
