BL400VTE Automatic labeller for self adhesive vignette & TE-seals

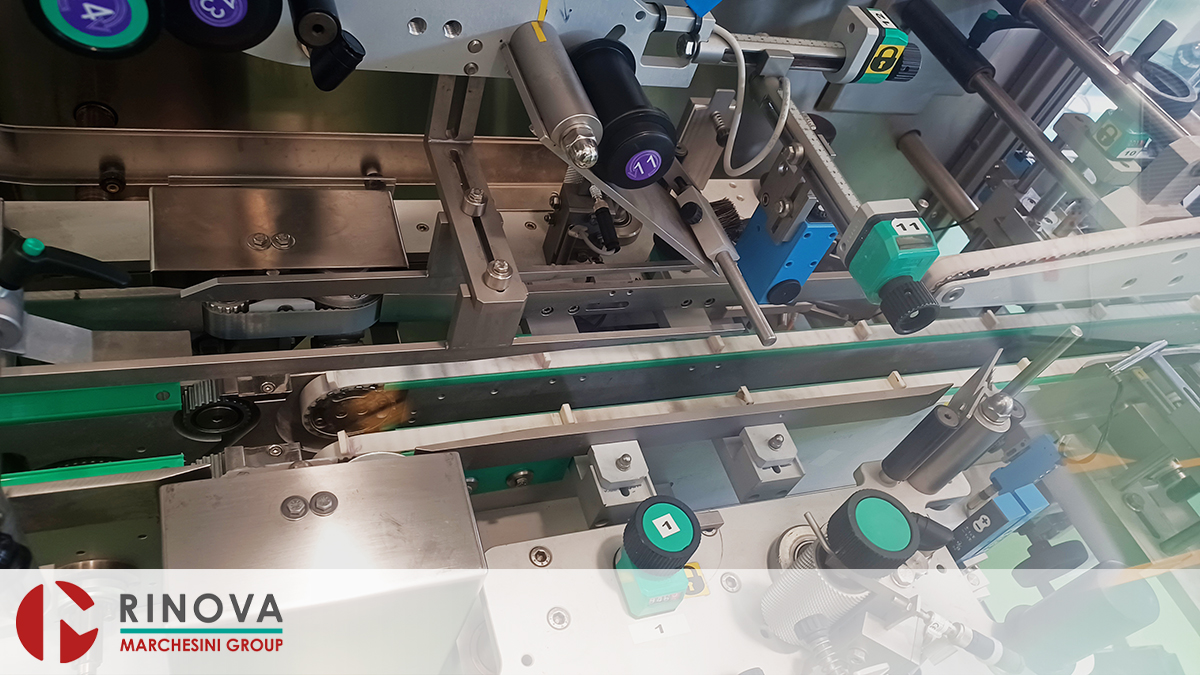

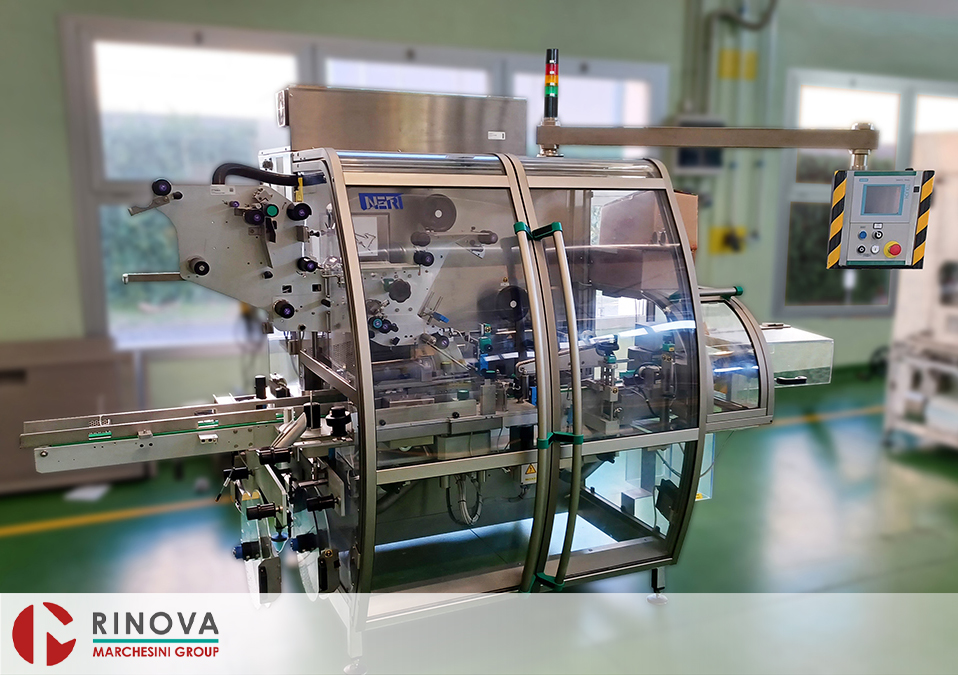

The Marchesini Neri BL400VTE is an automatic continuous motion labeller, suitable to apply at high production speeds one(1) self-adhesive VIGNETTE on the upper carton face and TWO self-adhesive TAMPER-EVIDENT SEALS on the closure points of formed cartons straight or reverse tuck-in flaps. Conveyance system by toothed belt; unit operating in line with other machines.

Machine suitable for the installation of:

  • ink jet or Laser printing system on the upper face and/or on both sides of cartons for printing of readable data as well as corresponding 2D code (Datamatrix);
  • relevant camera controls.

Standard Equipment

  • Twin horizontal flat conveyor belts, allowing carton accumulation at in-feed.
  • Minimum load control at machine infeed with automatic start.
  • Timing and distancing device (patented), servo driven, to dispense the cartons onto main toothed conveyor.
  • Twin horizontal conveyor toothed belts with adjustable width in order to handle different carton sizes.
  • Positive conveyance system. Cartons are kept in pitch, pushed by the vertical cleated belt.
  • Continuous mode speed adjustment.
  • Automatic working speed synchronization of motors.
  • Top belt to hold the seal during placement over the edges.
  • Control of pulling motion, of label carrier web.
  • End of reel control with machine stop.
  • Missing label control on reel.
  • Vertical and horizontal adjustment of the TE-SEAL and VIGNETTE position.
  • VIGNETTE smoothing system with brushes or rubber rollers.
  • TE-SEALS smoothing system with folding devices.
  • Folders for straight or reverse tuck-in cartons.
  • TE-SEALS and VIGNETTE carrier web rewinding units.
  • Regulation of overprint zone on VIGNETTE.
  • Maximum load control at the out feed with automatic start.
  • Dispensed labels counter.
  • All reel holder’s operator side.
  • Extracted reel control with alarm.
  • Carton reject at discharge and collation in bin on operator side.
  • Control rejection bin in position with alarm.
  • Tamper Evident internal seals extractable reel, allowing for an easy change.

Machine complete with:

  • Power at 400 Volt, 3 phases, 50 Hertz, Ground & Neutral wiring.
  • Electric cabinet on board.
  • • Operator terminal SIEMENS Touch Screen with video colour
  • Safety Guards in aluminum and Methacrylate. Schmersal type safety switches.
  • Machine stop in case a door opens.
  • Compressed air control pressure-switch. With machine stop at low-level detection.
  • Outfeed carton counter.
  • Rejected carton counter.
  • Work hour counter.
  • The machine has all safeties, required for a safe operation and corresponds to norms.
  • Delivered with CE mark.

Changeover is made without additional size parts as only some adjustments are sufficient.

Technical data

Production speed

  • up to 400 pieces/minute

Carton size

  • The indicated data are for reference only. They are subject to be modified whenever manufacturing needs dictate so.
  • A: Min 20 mm – Max 120 mm
  • B: Min 15 mm – Max 90 mm
  • H: Min 70 mm – Max 250 mm


  • Height B: Min 20 mm – Max 60 mm
  • Length A: Min 15 mm – Max 80 mm


  • Height B: Min 15 mm – Max 30 mm
  • Length A: Min 15 mm – Max 60 mm

Label production speed

  • From 0 to 60 Meters/Minute

Reel diameter

  • Max 400 mm

Reel core diameter

  • 45 or 75 mm

Technical documentation

  • Standard CE Instructions Manual and CE Certificate are supplied with the machine.
