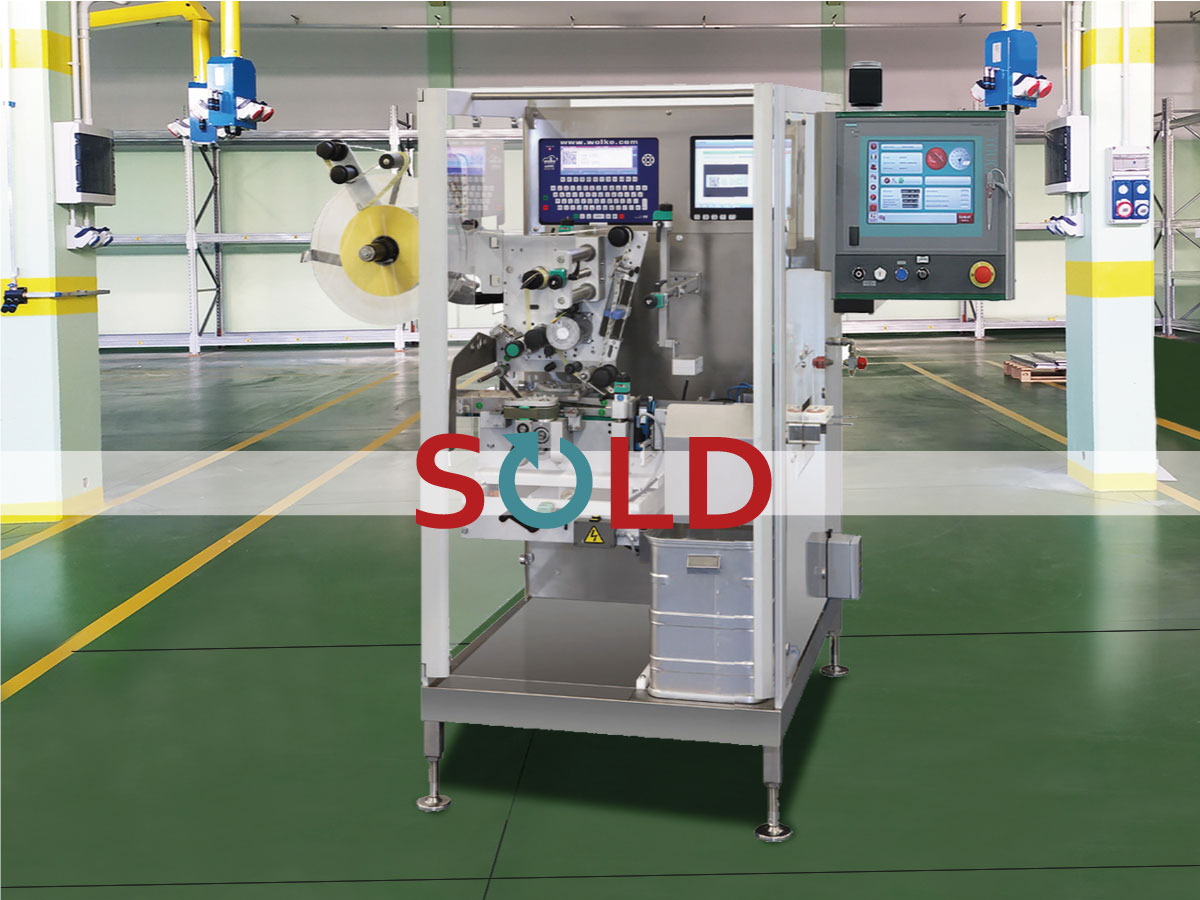

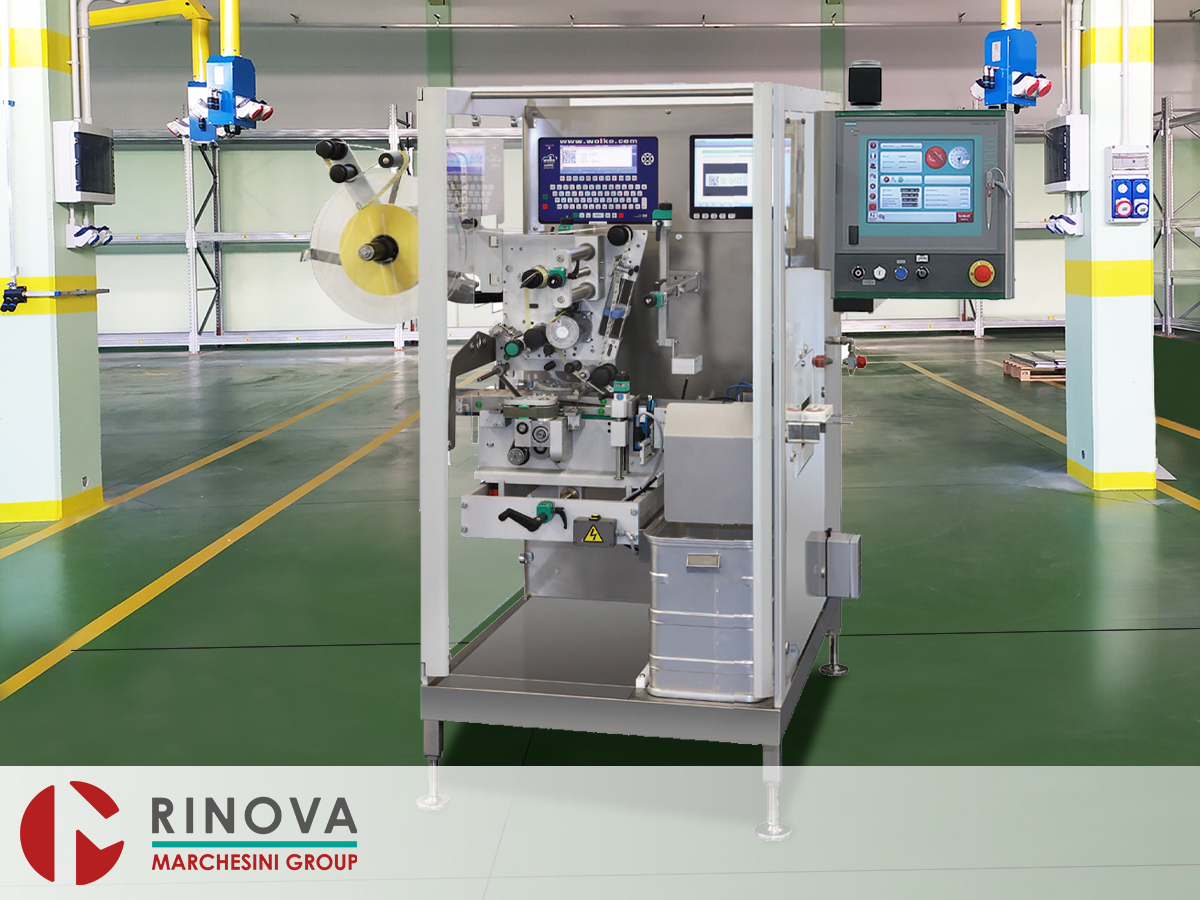

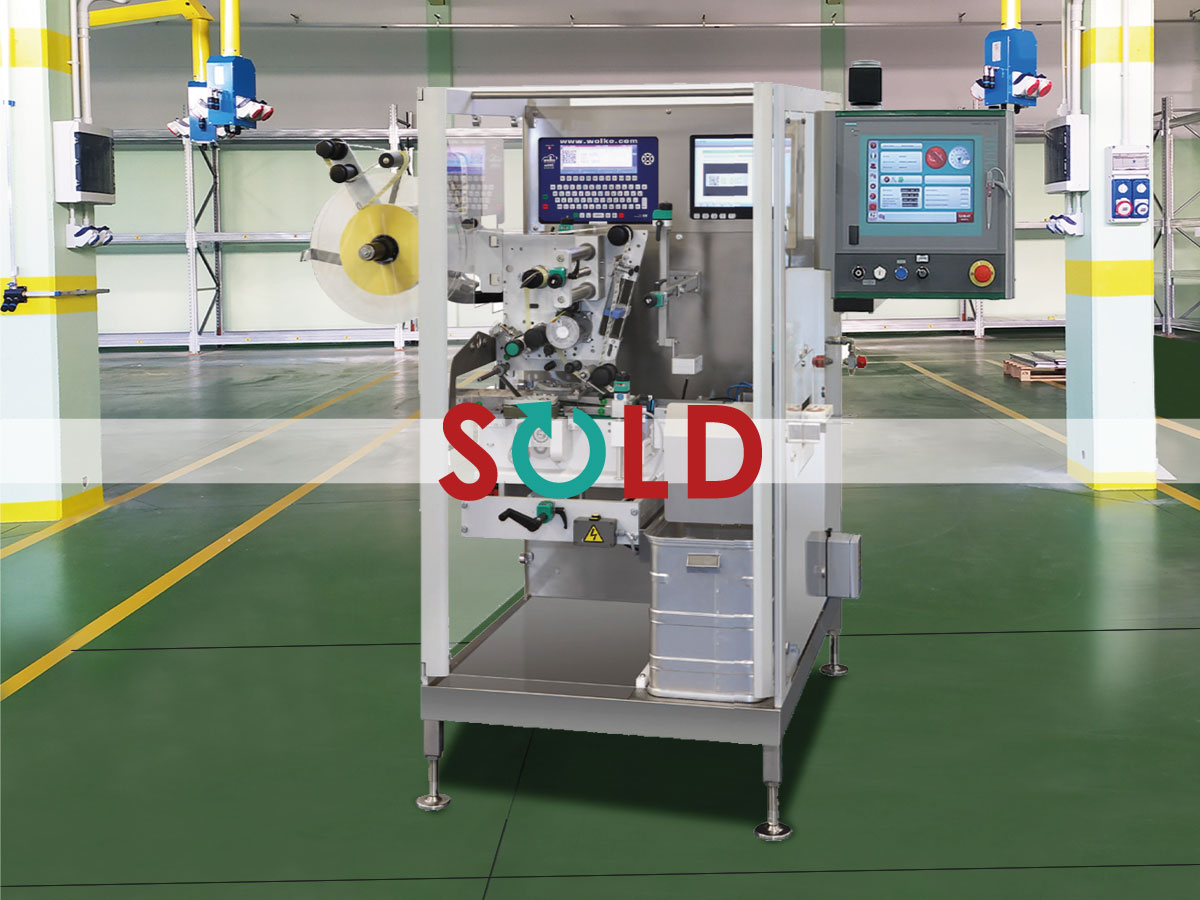

BL-A309 Carton labelling machine

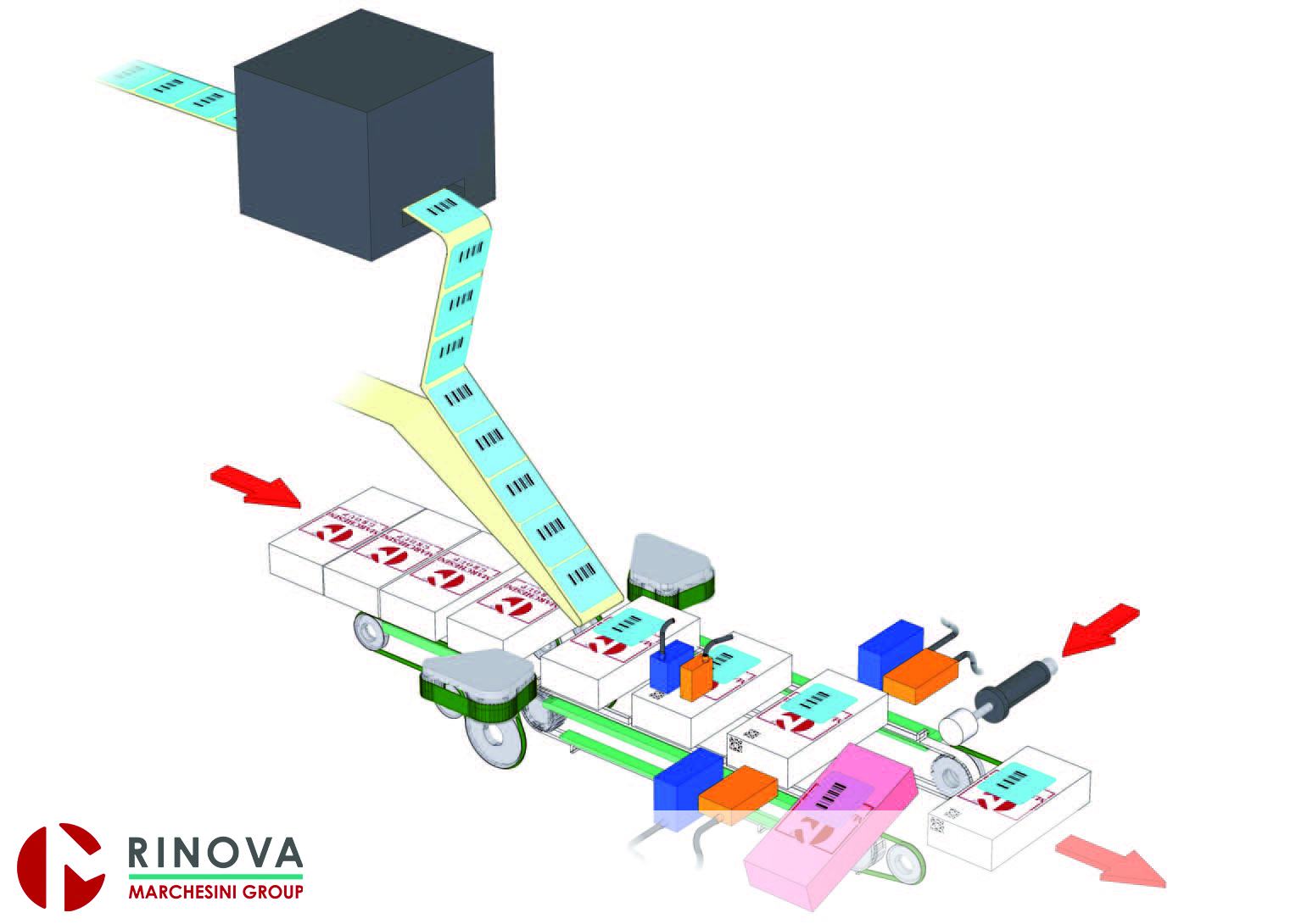

The Marchesini Neri BL-A309 is a continuous motion machine suitable to apply at high production speed (if properly equipped), one (1) self-adhesive VIGNETTE on the upper carton face. Unit operating in line with other machines and arranged for TRACK&TRACE applications.

Main Features

  • Design, manufacturing and ergonomics, in accordance with GMP norms;
  • Balcony design, AISI 304 stainless steel supporting frame and panelling;
  • Twin horizontal conveyor belts, allowing carton accumulation at the infeed;

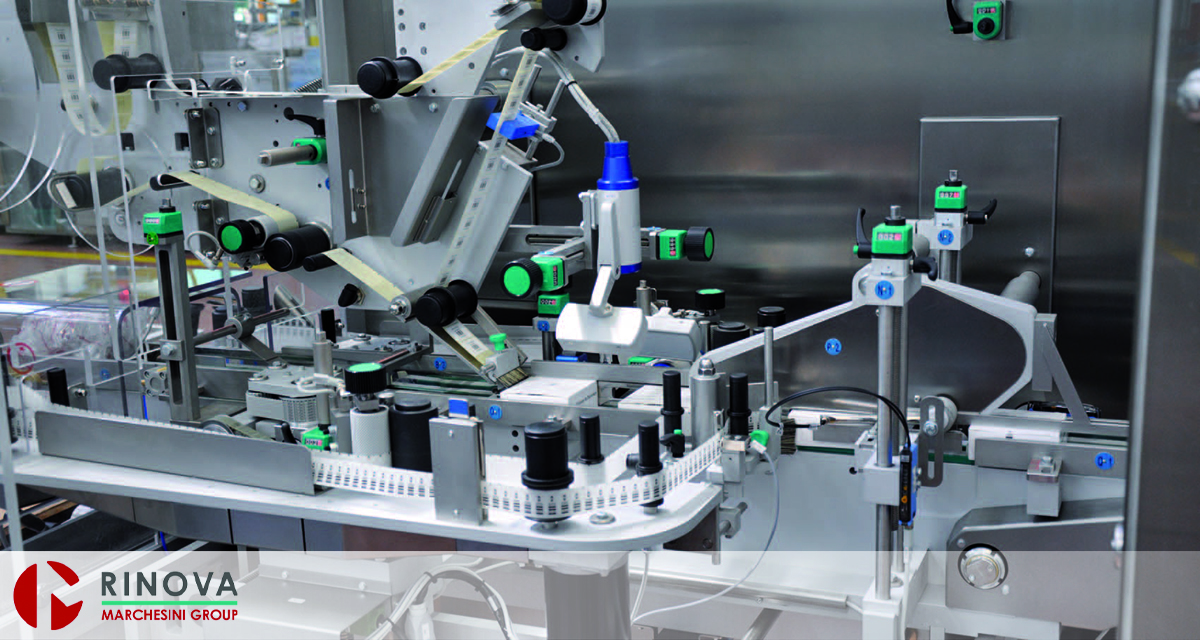

  • Spacing device (patented) transferring the cartons onto the main toothed belts conveyor having adjustable width to handle different carton sizes;

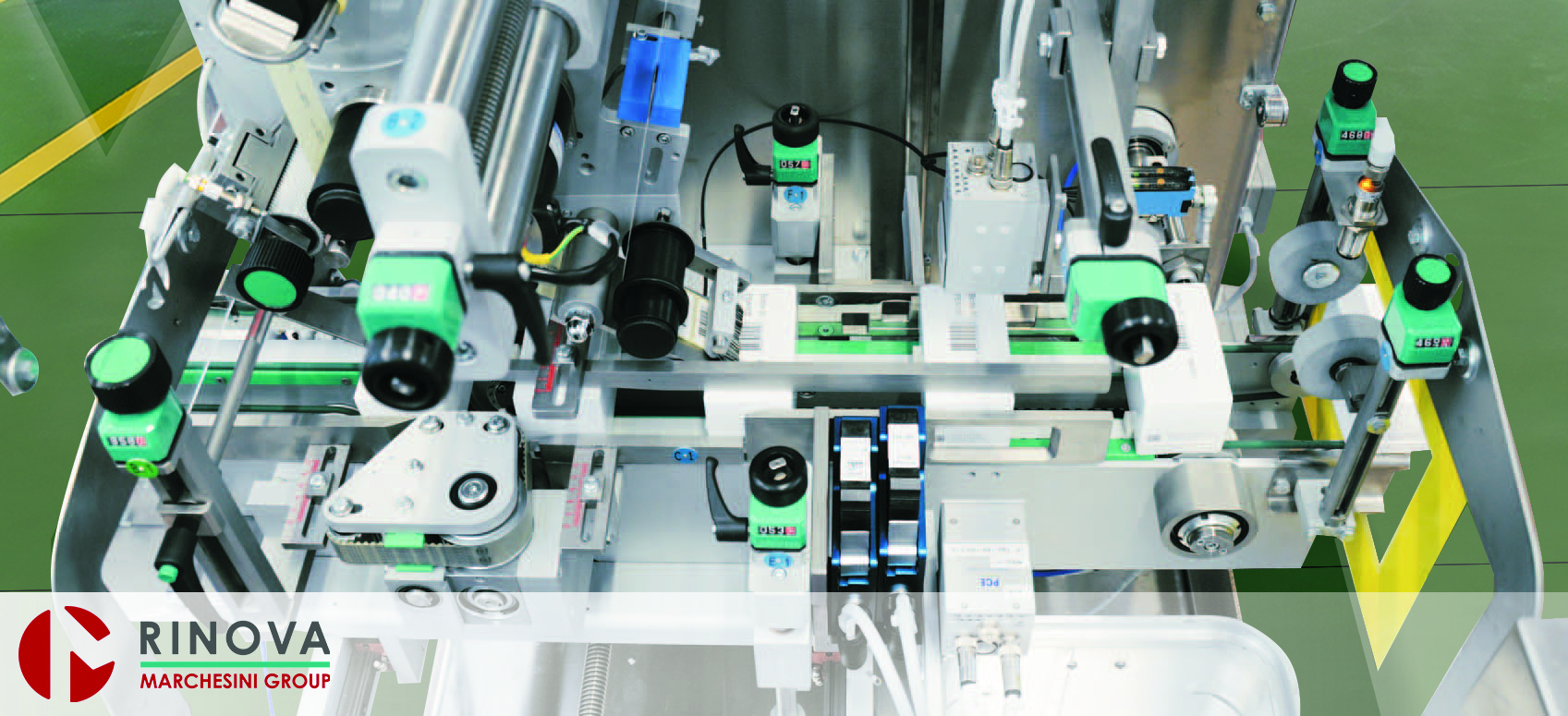

  • Positive conveyance system with toothed belts to keep the cartons in pitch;
  • Speed adjustment from display;
  • Horizontal and vertical adjustment of the Vignette;

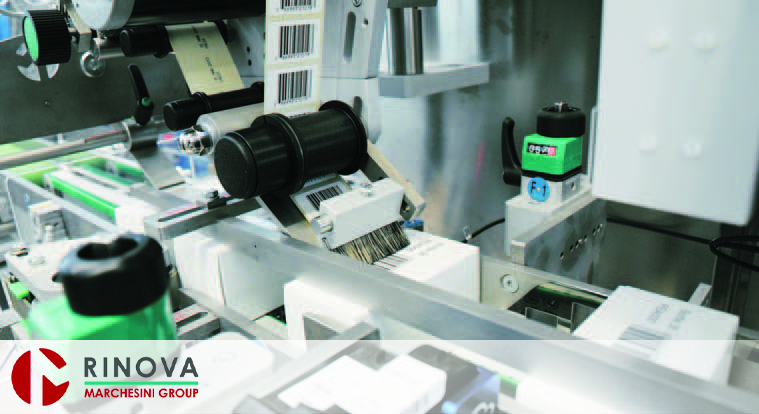

  • Vignettes smoothing system by brushes or rubber rollers;
  • Vignettes carrier web rewinding unit;
  • Regulation of overprint zone on Vignette;
  • Dispensed labels counter;
  • Carton reject at discharge with collection inside bin placed on operator side;
  • Guided adjustments for easy and quick size changeover, without additional size parts;
  • CE marking.

Safeties and Controls

  • Safeties guards in methacrylate, integrated in the machine frame;
  • Emergency circuits and protections with safety level “PLd Cat.3”;
  • Minimum load control at machine infeed with stop and automatic restart;
  • Pulling motion control of label carrier web;
  • Broken web detection with immediate machine stop;
  • End of reel control with machine stop;
  • Missing label control on reel;
  • Reject confirmation;
  • Machine stop after three consecutive errors;
  • Compressed air control pressure-switch with machine stop at low-level detection;

Not included (to be quoted separately)

  • One (1) “V” labelling head with unwinder.

Optional Accessories

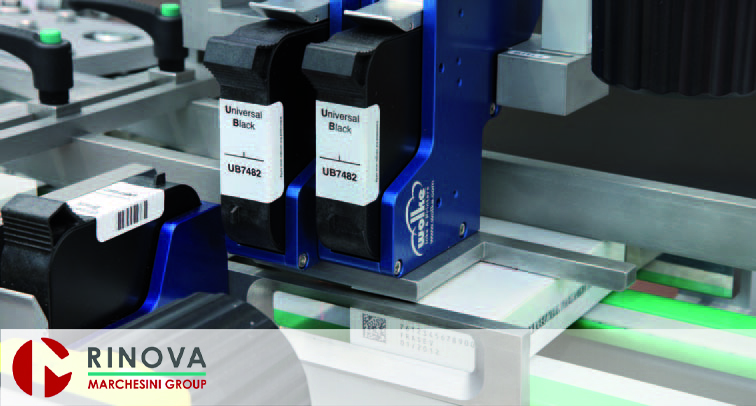

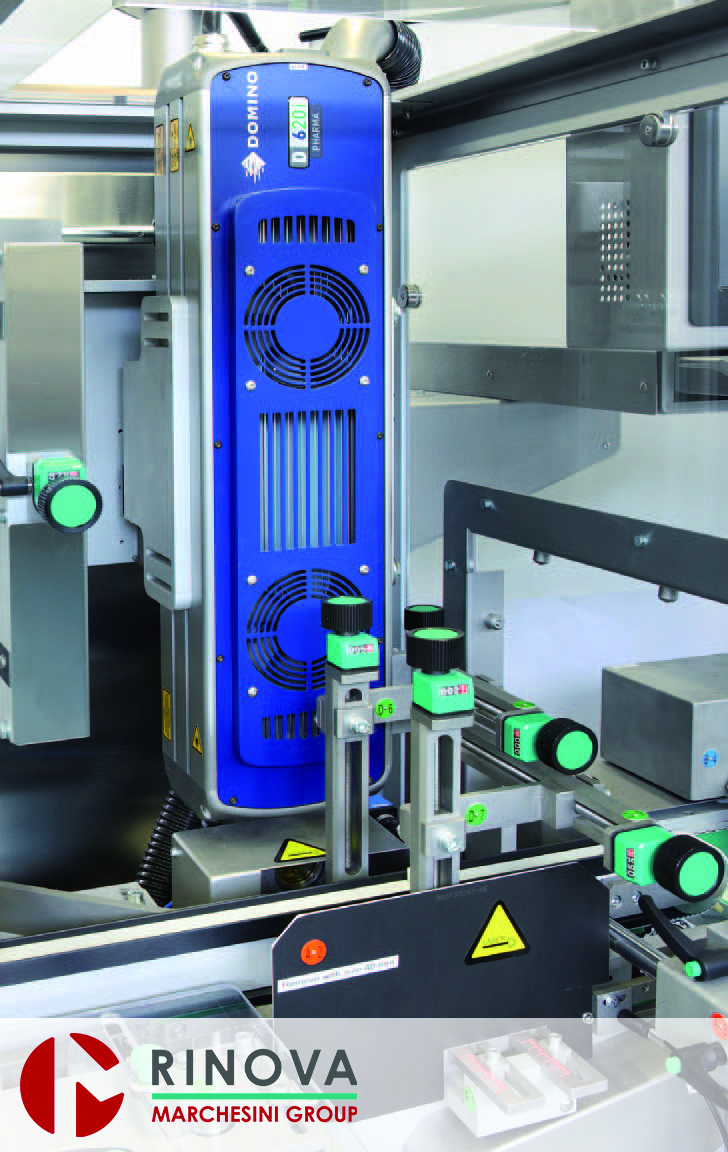

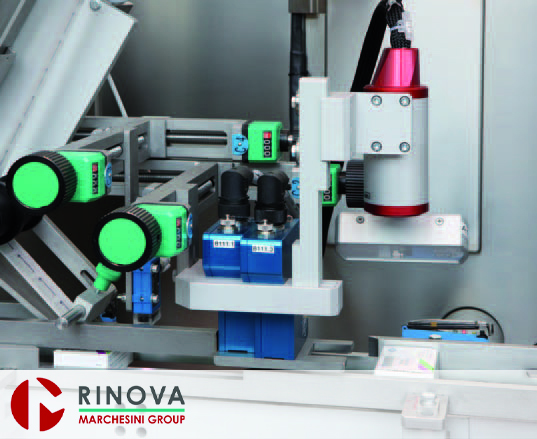

  • Equipment for Track & Trace applications: Ink jet system or laser printer, for the printing of readable data as well as corresponding 2D code (Datamatrix) on the upper face and/or both sides of the carton; vision system camera for the relevant controls.

Technical data

Carton size Range

  • A: Min 25mm - Max 105 mm (from 0.79” to 4.13”)
  • B: Min15 - Max 90 mm (from 0.59” to 3.54”)
  • H: Min 67 - 240 mm (from 2.75” to 9.44”)

Vignette sizes

  • A: Min15 - Max 80 mm (from 0.59” to 3.15”)
  • B: Min 20 - Max 60 mm (from 0.79” to 2.36”)

Reel diameter

  • max. 400 mm (15.75”)

Reel core diameter

  • 45 or 75 mm (1.77” or 2.95”)

Mechanical speed

  • Up to 300 pcs/minute

Labels production speed

  • Min 0 - Max 60 meters/minute
