BA 90 AL

BA 90 AL Intermittent motion cartoner

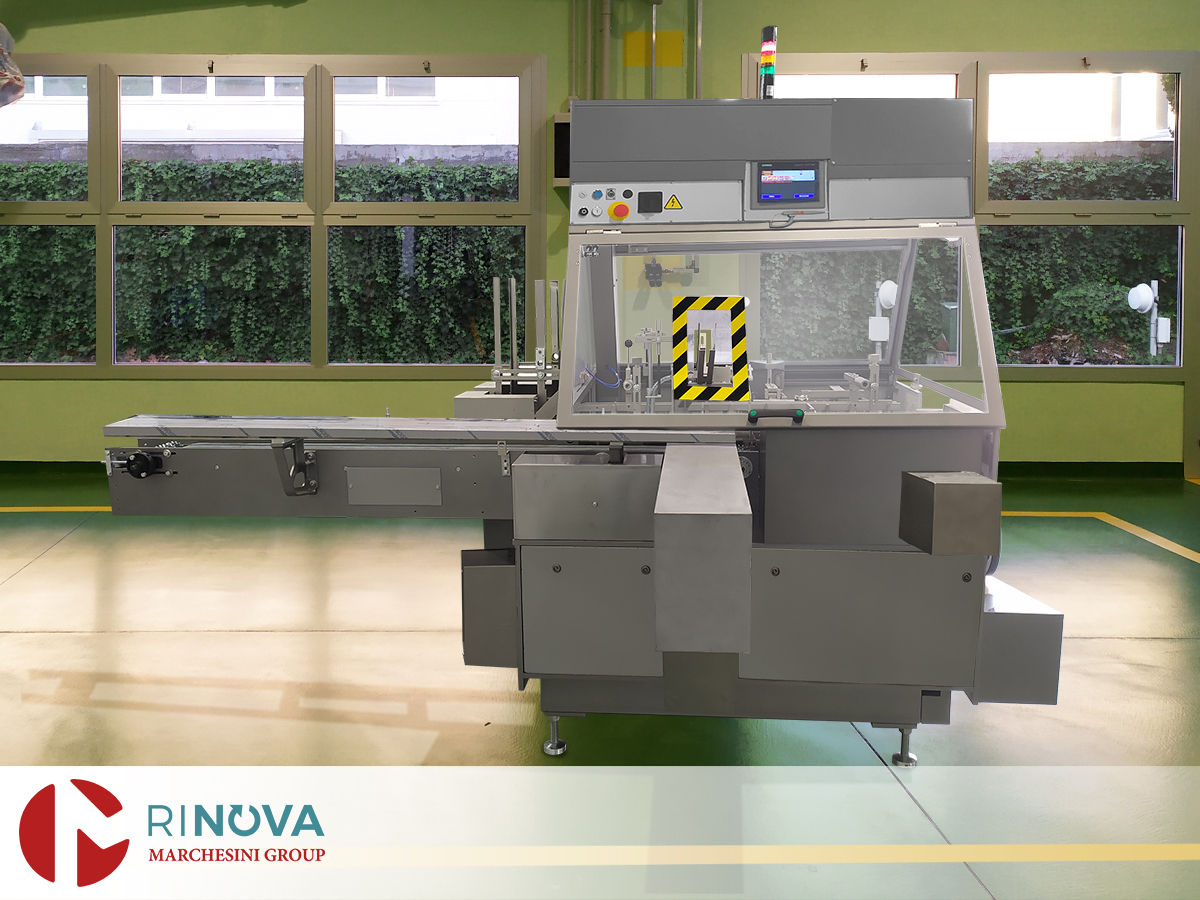

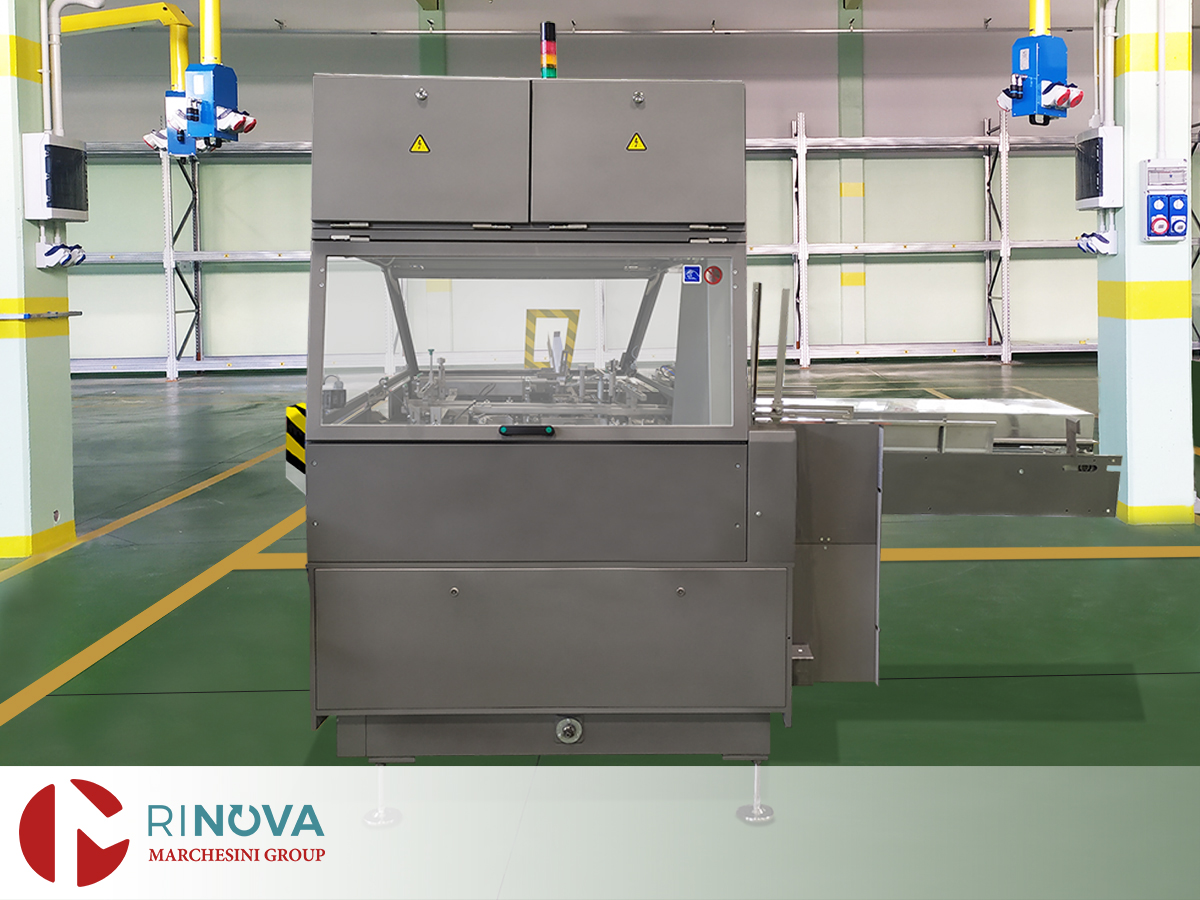

The Marchesini BA90AL is an automatic, intermittent motion machine and horizontal transport of the carton, suitable to open cartons, to insert the product fed in a bucket chain and to close straight or reverse tuck-in flaps then to discharge the cartons at the outfeed.

Machine complete with:

  • Siemens motovariator group;
  • The lower machine body, separated from the working area, contains the adjustable speed SBC motor and the BECKER dry type vacuum pump;
  • Vertical carton magazine placed at approx. 1400mm (55,12”) from floor level, with minimum load control;

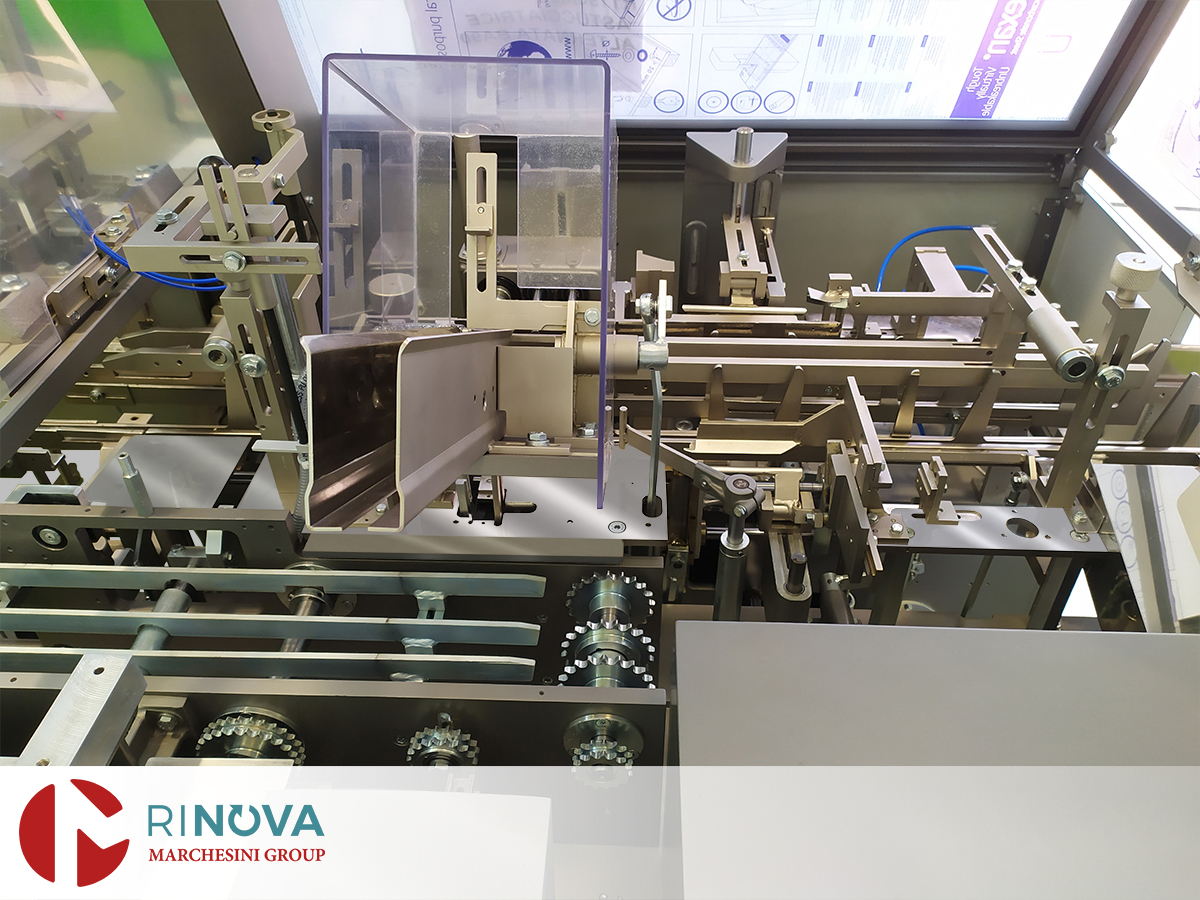

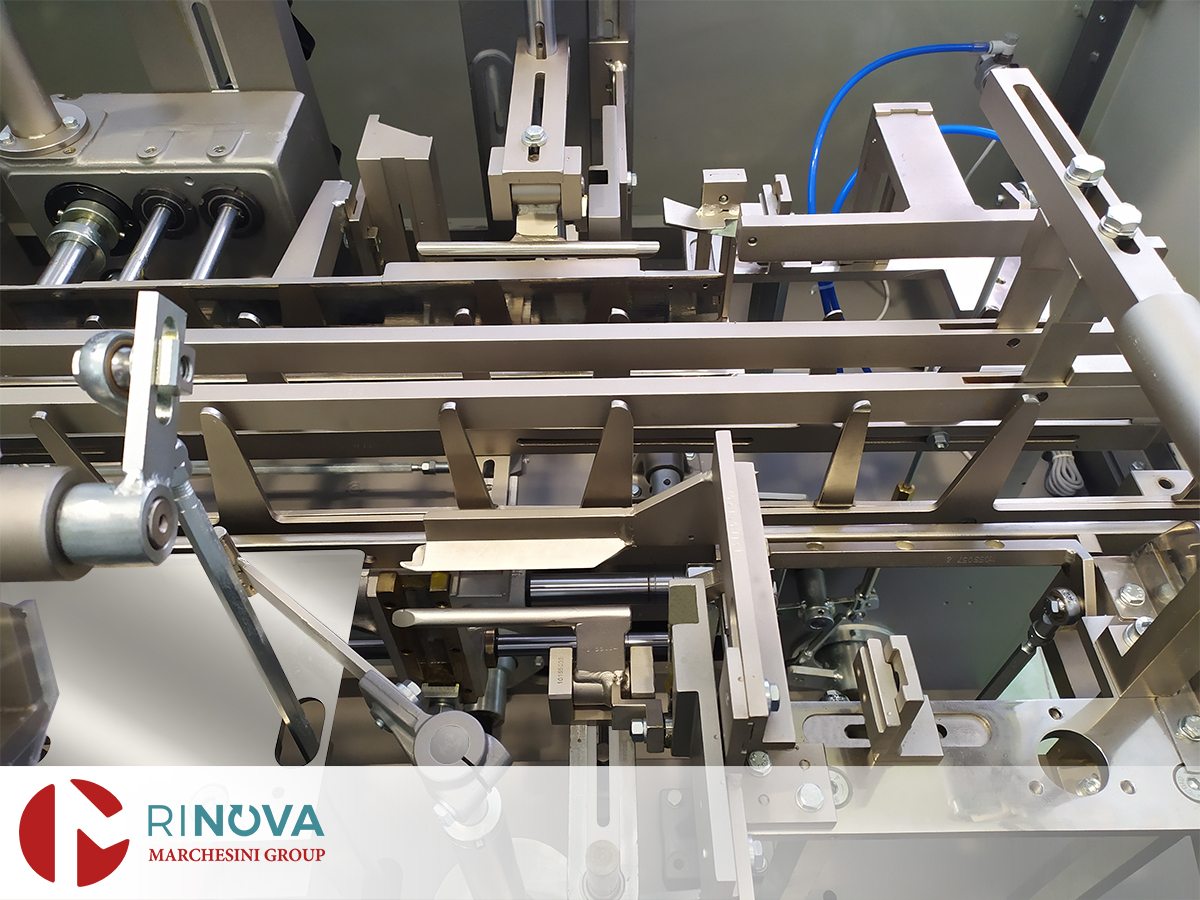

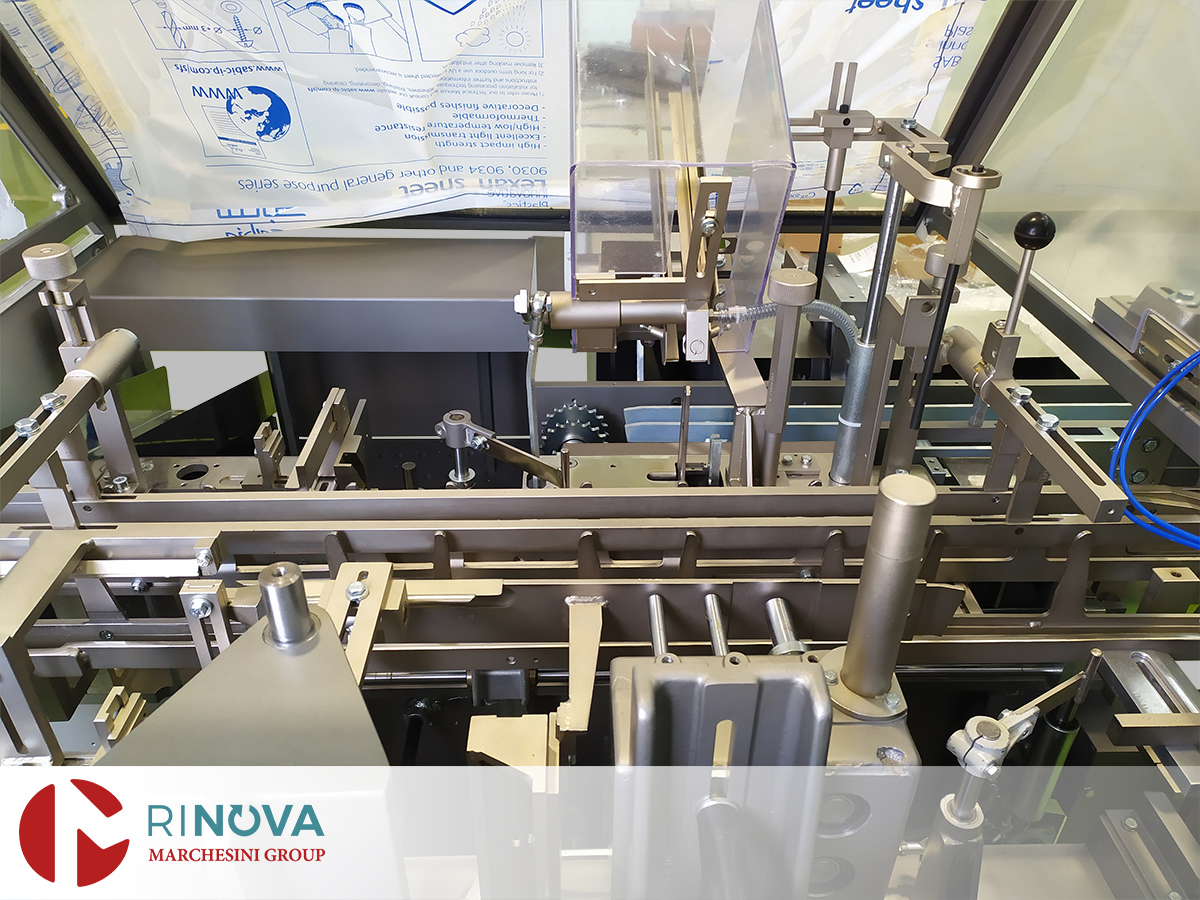

  • Mechanical drives are contained inside the frame; carton transport has a fixed and a mobile part adjustable to suit the carton length (“h” dimension);
  • Product infeed chain with fixed buckets designed to be connected to various available automatic-feeding units. Infeed and discharge height 820mm +/- 50mm (32,28” +/- 1,96”).

Main Features

  • The machine design, result of the long term and proven experience of the manufacturer in this field, has made of “BA 90” a reliable and high-quality machine;
  • Solid frame at reduced dimensions, it is realized in compliance with the safety norms and it is delivered with CE mark.

Installed Safeties

  • Safety Guard in Methacrylate integrated on the machine frame with safety micro switches on all the opening parts with machine stop in emergency mode and release of the air pressure;
  • Electronic torque overload control on the main motor with immediate machine stop;
  • Overload safety on product pusher and machine stop. After clearance, a reset is mandatory;
  • Machine stop after three consecutive errors.

Technical data

Size range

  • A: Min 40 mm (1,57”) - Max 140 mm (5,51”), pitch 200 mm (7,87”)
  • B: Min 20 mm (0,79”) - Max 100 mm (3,94”)
  • H: Min 90 mm (3,54”) - Max 260 mm (10,24”)

Mechanical speed

  • Up to 50 cartons/Minute
  • The output always depends on product feeding possibilities, automatic product feeders used, pushers and types of mounted additional accessories

Standard voltage

  • 400 Volts, 3-phase, Neutral & Ground. Frequency: 50 Hertz
  • Electric installations, Panel Layout and wiring according to CE Norms

Electrical system

  • The machine complies with international CE standards and is tested according certified Quality Plan

Electric functions

  • Commanded by an PLC S7-1500 E HMI TP700 (Siemens)

Technical documentation

  • Original standard CE Instructions Manual (one hardcopy + one CD Rom) and CE Certificate are supplied with the machine
