BA 300

BA 300 Continuous motion cartoner

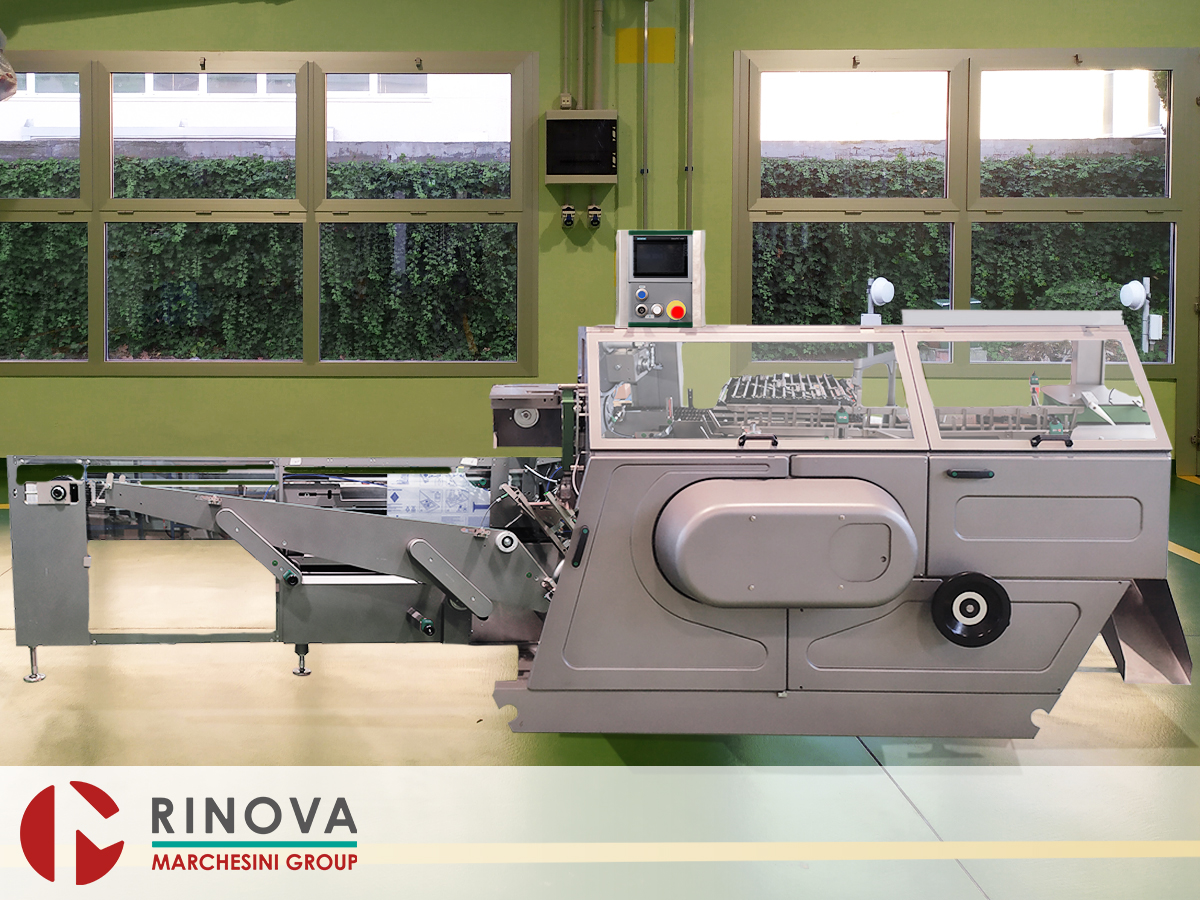

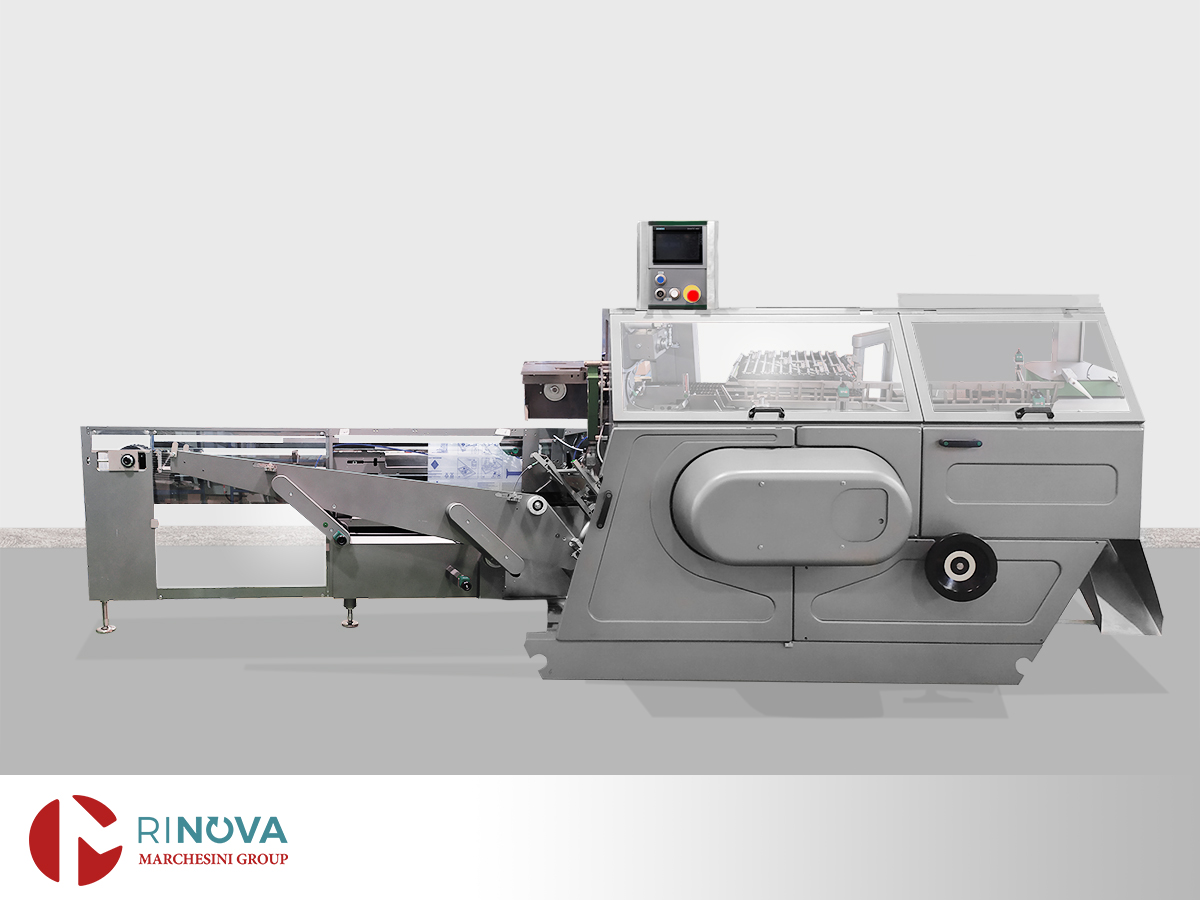

The Marchesini BA 300 is a continuous motion horizontal cartoning machine. Cartoner suitable to pre-break and to open either reverse or straight tuck-in three flap cartons, insert product, which has been delivered to infeed, close cartons and discharge.

In the machine design, safety norms have been followed and the machine is delivered with the Πmark.

Main features:

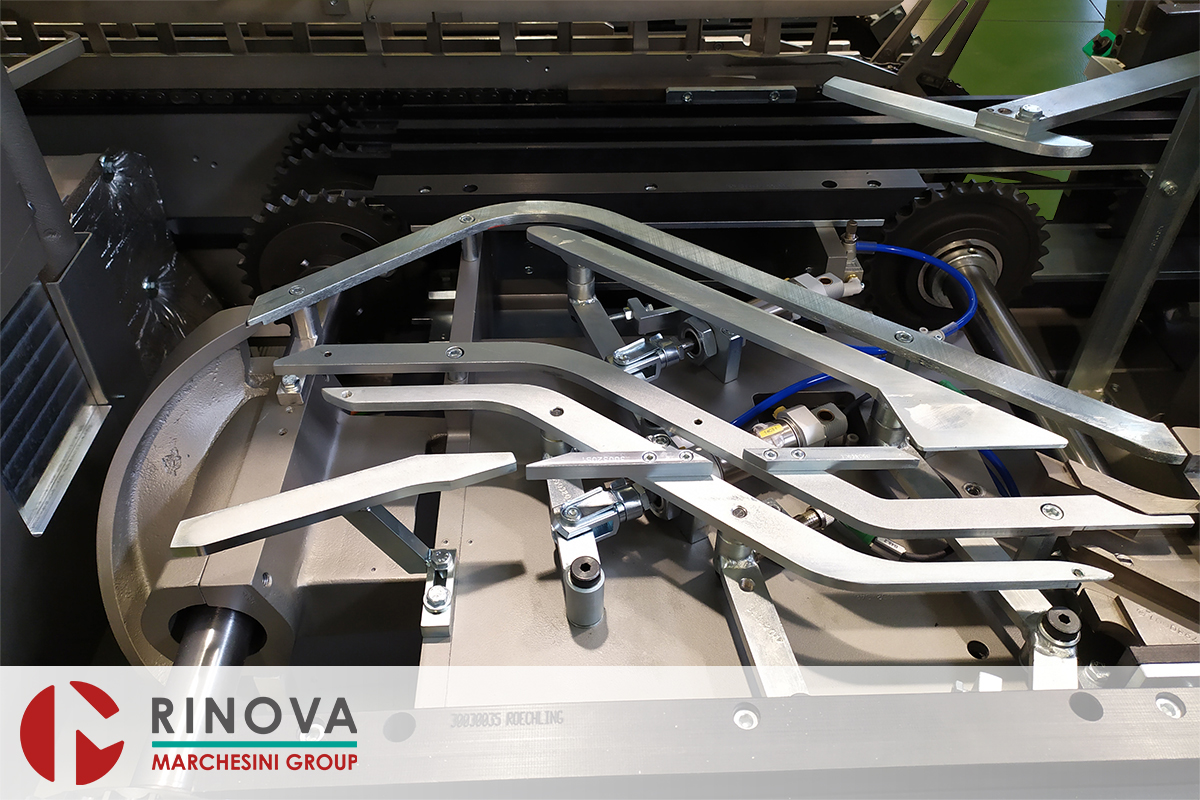

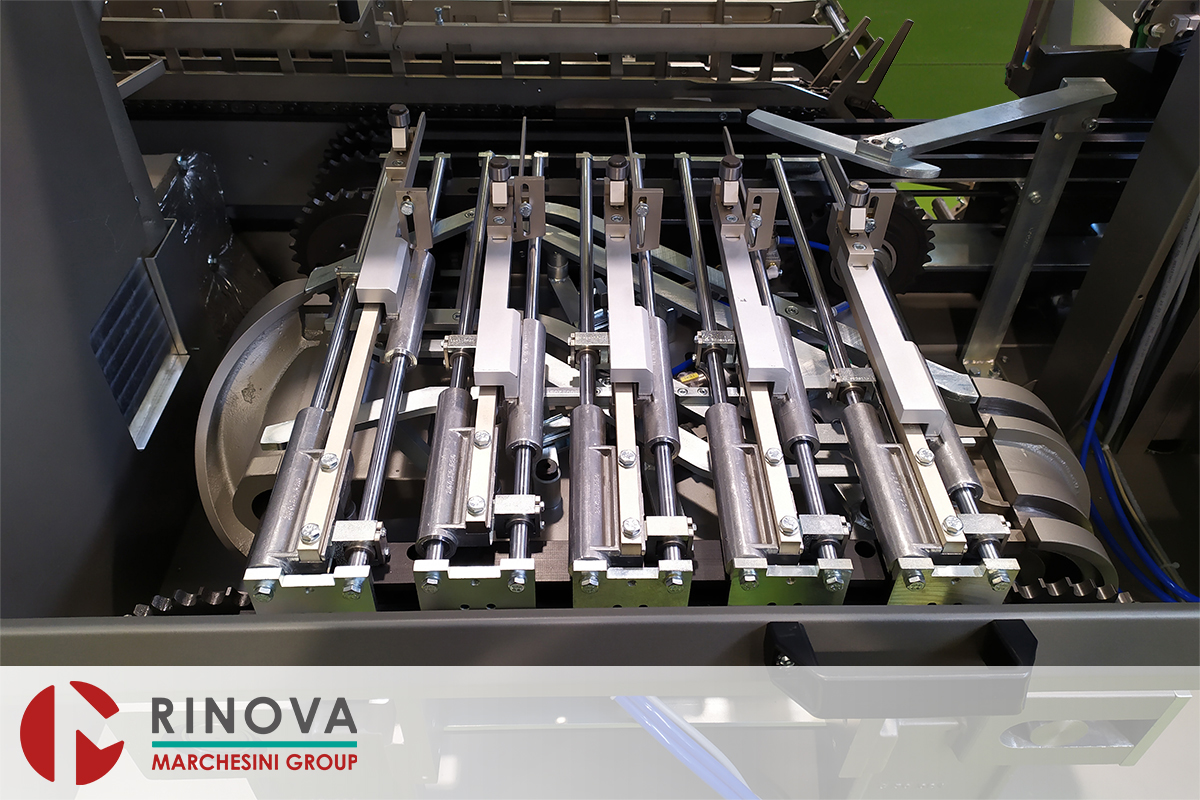

  • Product insertion into the carton achieved with a set of pushers placed opposite the operator side;

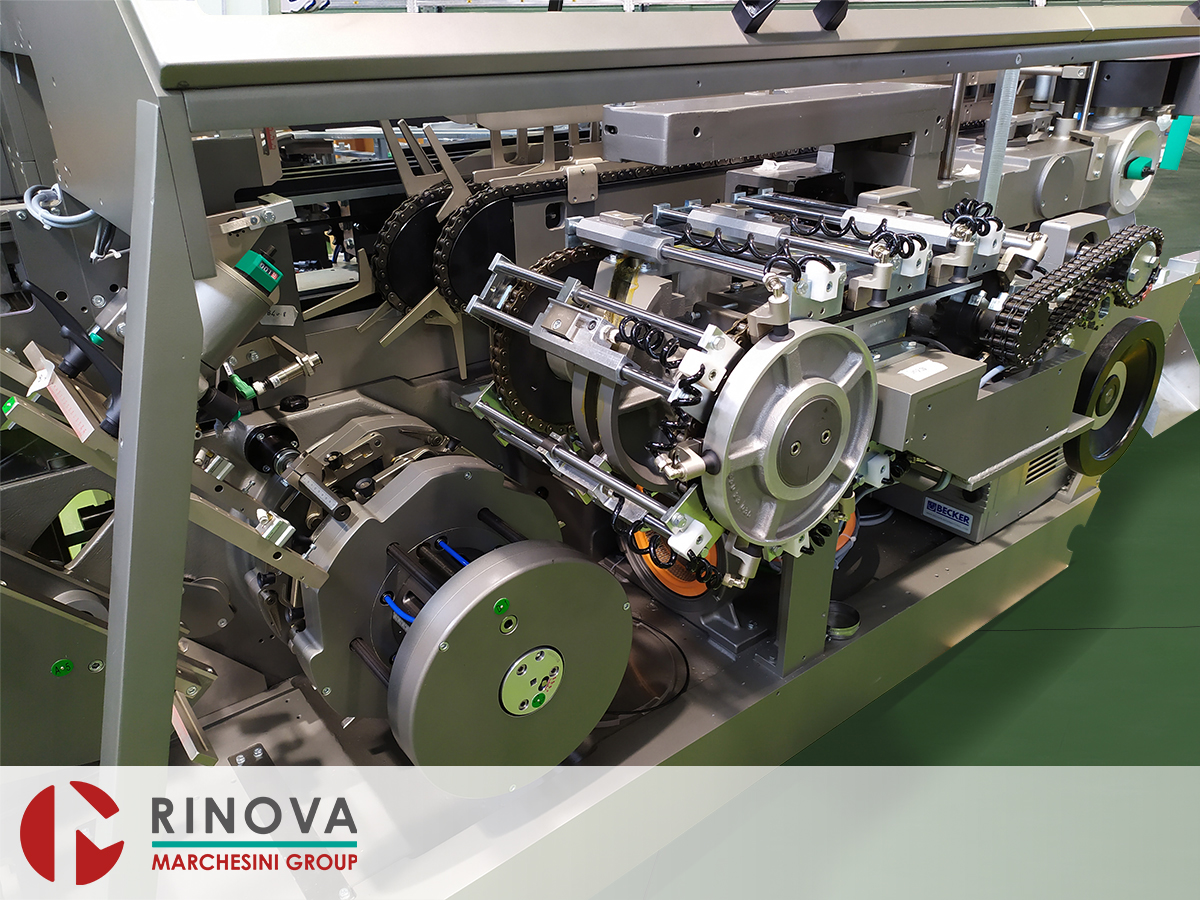

  • The cartoning section is composed of two enclosed drive units. One section is mounted fix and the other one adjustable and servo motor driven to suit the carton length (“h” dimension);
  • Easy size adjustments;
  • Servo powered adjustment for change in carton length (“h” dimension);
  • Main servo motor. Vacuum pump for carton opening drum and transfer shafts;
  • High capacity carton magazine;
  • Venturi type pump for carton and leaflet aspiration;
  • Product transport chain with adjustable drawers in width;
  • Underneath the pusher group is free of obstacles to allow for easy dropping of components;
  • Quick and easy format change.

Technical data

Formats range (The data is for reference and is subject to possible variations during machine development.)

  • A: Min 25 mm – Max 100 mm, 127 mm pitch
  • B: Min 15 mm – Max 70 mm
  • H: Min 78 mm – Max 150 mm Standard version, with blade counter-thrusters
  • The technical specifications herein are subject to change without notice and responsibility.

Speed

  • Up to 260 cartons/ min
  • The yield is always dependent on the possibility of feeding the product, on the automatic feeders mounted, on the type of pushers used as well as on the additional accessories added.

Three colours advisory lights

Power

  • 6 kW, standard version with interlocking closure
  • 9 kW, hot melt sealing version with NORDSON®

Tension

  • 400V 50Hz

Air consumption (6 bar)

  • 120 NL/1’

Pneumatic components

  • SMC

Noise

  • Not more than 80 dB(A)

Dimensions

  • Length 3360 mm, Width 1580 mm, Height 1860 mm

Net weight

  • 2000 Kg. approx

Technical documentation

  • Original standard Œ Instructions Manual (one hardcopy + one CD Rom) and Œ Certificate are supplied with the machine
