BA 100

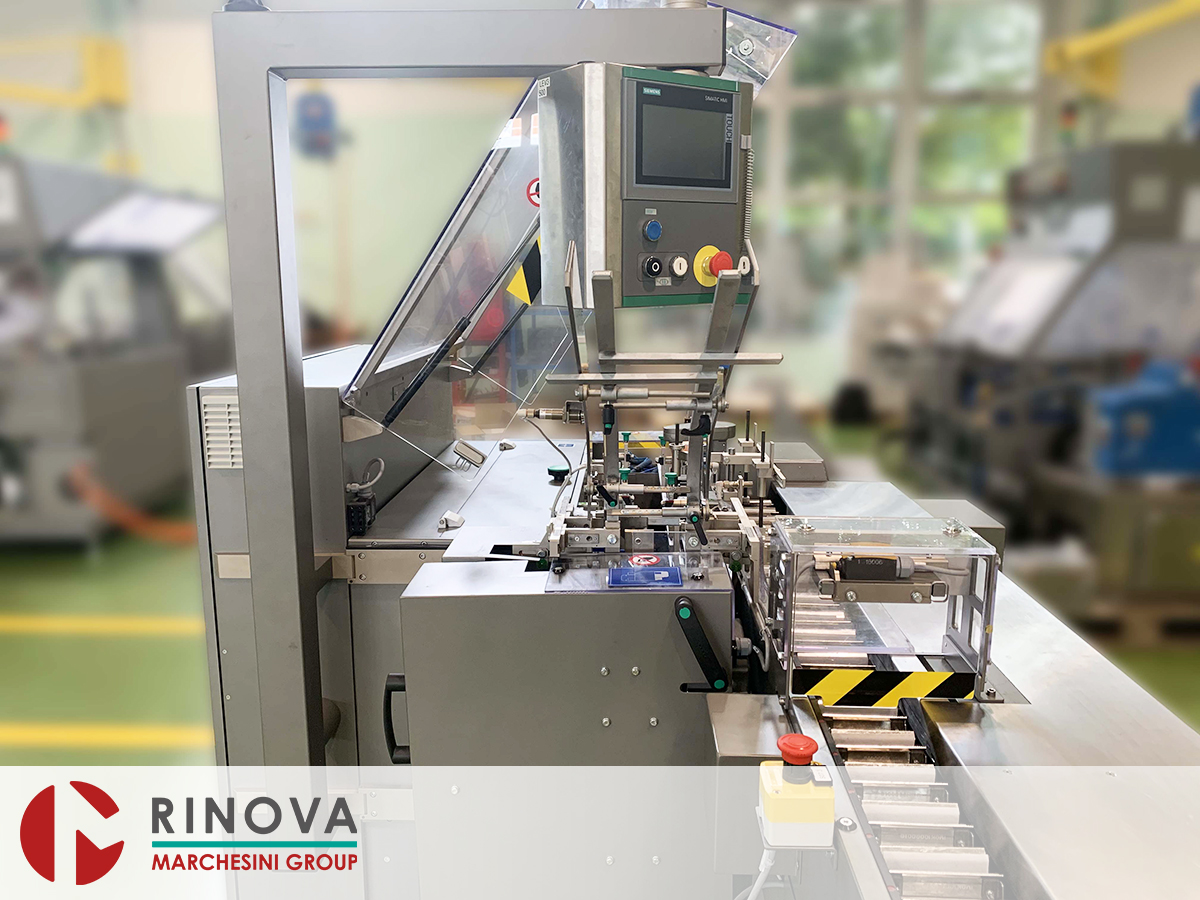

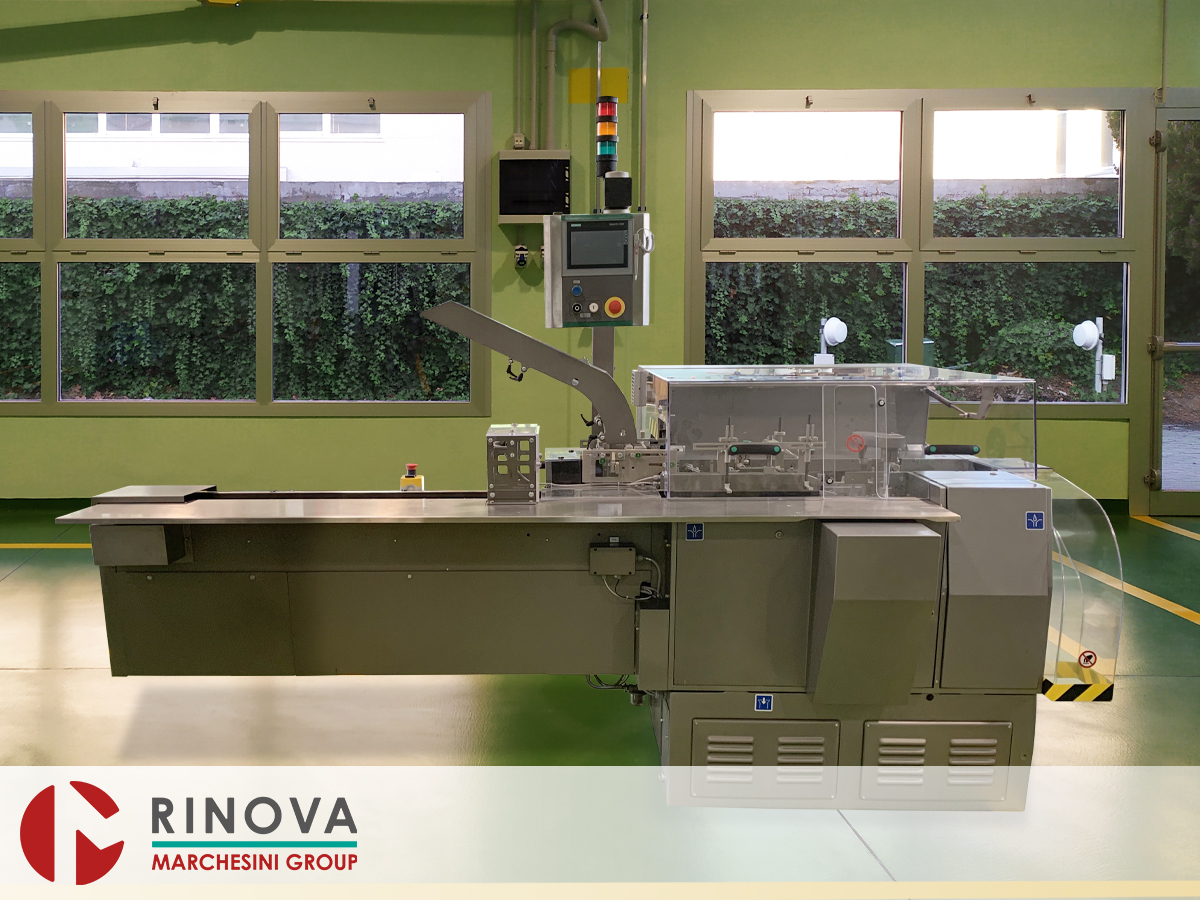

BA 100 Intermittent motion automatic machine
The Marchesini BA100 is an intermittent motion automatic machine with horizontal transport of the carton, suitable for packing products into three-flaps straight or reverse tuck-in cartons.
Main Features
- Design, manufacturing and ergonomics, in accordance with GMP norms.
- Small footprint.
- Adjustable speed motor, BECKER dry type vacuum pump and mechanical drives contained in the lower machine frame, separated from the working area.
- Cartons transport with a fixed and a mobile motorized adjustable part to suit the carton length (“h” dimension).
- Size changeover with millimeter scales.
- CE marking.
Product Feeding
- Product infeed chain with fixed buckets, designed to be connected to different types of automatic-feeding units.

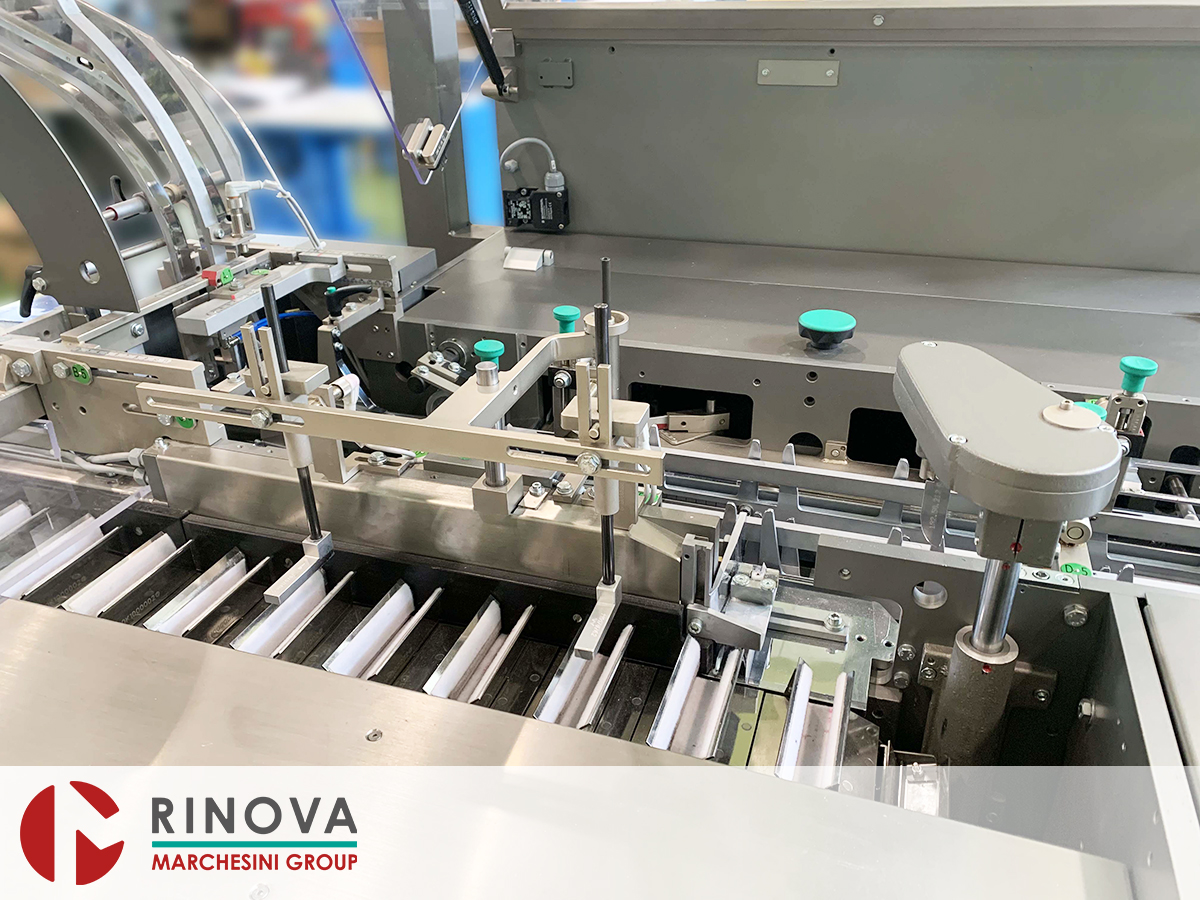

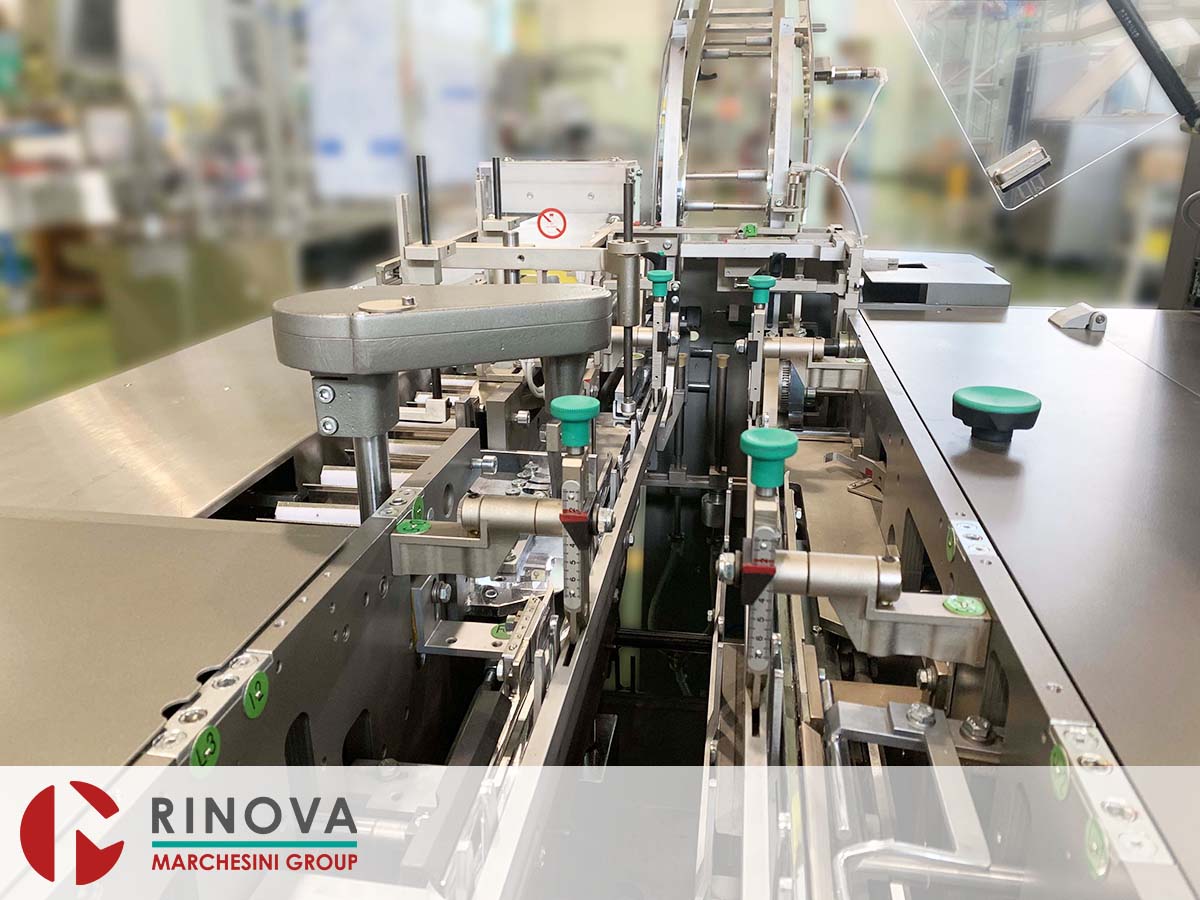

Cartoning Section
- Inclined, fixed, carton magazine, with standard length of 700 mm (27.55”), placed at approx. 1300mm (51.18”) from the floor level.
- Simplified magazine guide adjustment with millimeter scales.
- Carton pick up from magazine (only if product is present) by means of a suction cups arm.
- Carton opening through a blade with opening levers.
- Carton transfer to the working stations by means of an intermittent motion rake.
- Product insertion into carton through a pusher placed on the operator side, guided by a moving funnel retracting after the pusher has moved out, to ensure the product is kept inside the carton.
- Carton closing and discharge on the outfeed guides.
Safeties and Controls
- Safeties guards in methacrylate, integrated in the machine frame.
- Emergency circuits and protections with safety level “PLd Cat.3”.
- Machine stop in emergency mode and release of the air pressure.
- Overload control on the main motor with mechanic torque limiter and machine stop.
- Overload control on pusher during the product insertion.
- Control of carton pick-up from magazine.
- Control of carton opening and calls for leaflet (if present).
- Product presence control prior to insertion, with machine stop.
- Cross control of product-carton-leaflet: in absence of product, the machine does not pick up neither carton nor leaflet.
- Machine stop after three consecutive errors.
Included
- One (1) carton and product size.
Optional Accessories
- Inkjet, embossing or laser cartons marking.
- Different types of carton closures (hotmelt or tuck-in closures), available on demand.
- Pre-folded leaflets magazine or GUK open/from reel sheets folder, installed within the safety guard and loaded from the outside.
Technical data
Maximum mechanical speed
- up to 100 cartons/minute
- The production speed is always dependent on the possibility of feeding and characteristics of the product as well as on the configuration of the product, as well as on the accessories added to the standard machine
Carton sizes
- A width: from 20 to 110 mm (from 0.79” to 4.33”) pitch 130 mm (5.12”)
- B height: from 12 to 55 mm (from 0.47” to 2.16”)
- H length: from 55 to 170 mm (from 2.16” to 6.69”)
Technical documentation
- Original standard Instructions Manual (one hardcopy + Pendrive) and CE Certificate are supplied with the machine
