BA 100

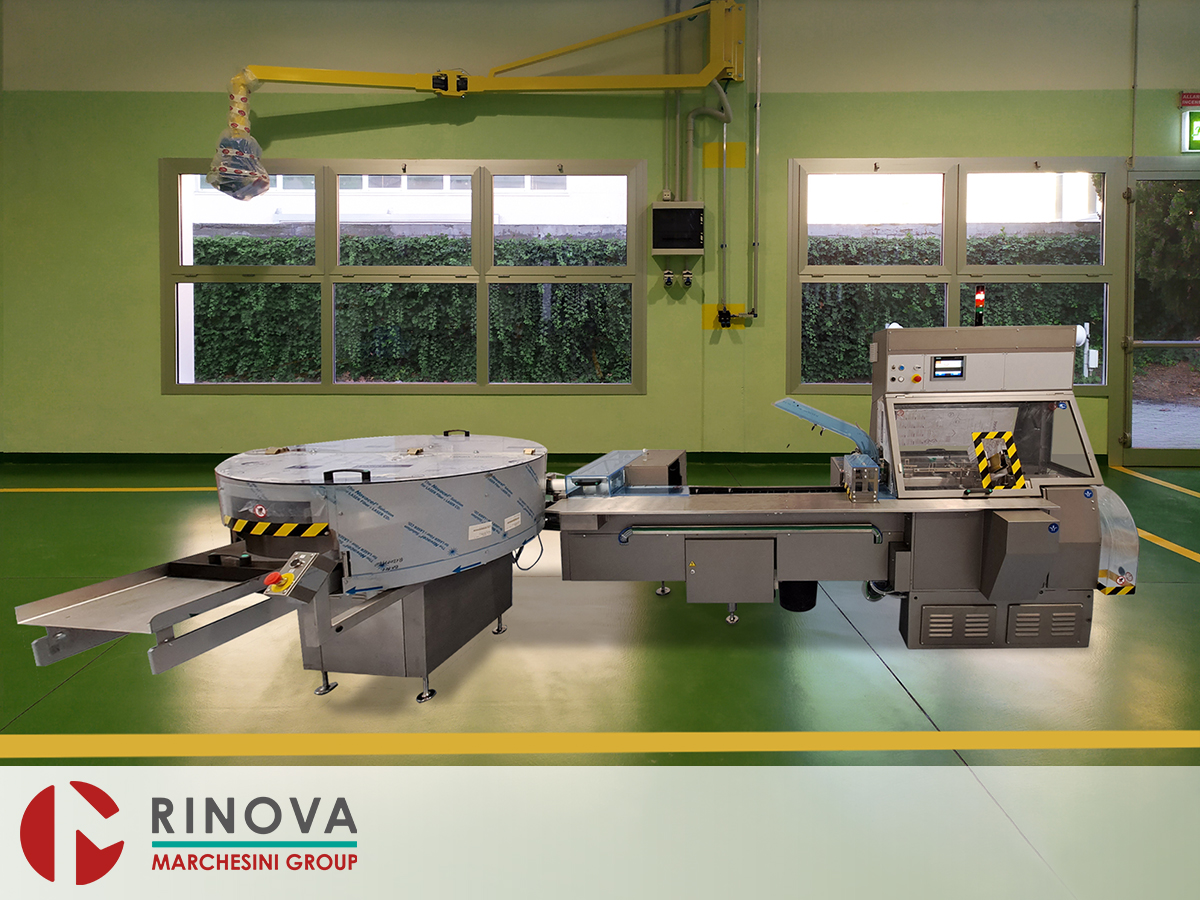

BA 100 Intermittent motion horizontal cartoner for bottles

The Marchesini BA 100 is an horizontal intermittent-motion cartoner for bottles, specifically designed to address the main cartoning applications for medium production rates. This machine is suitable for the pharmaceutical, cosmetic, food and consumers products industry. The construction is completely mechanical for minimum maintenance, assisted by an ample accessibility to all the parts.

Software, mechanical and electronic parts have been completely refurbished. The machine is sold with the user manual and the technical change over datasheet, CE certified and complies with the existing safety standards.

The BA 100 is equipped with a bucket feeding chain into which, by means of dedicated feeders, are placed the products to be cartoned. Operation is completely automatic. One sensor checks for the presence of the product in the bucket and calls the correspondent carton and leaflet (if necessary), enabling the sensors of correct retrieval. Optional rotary table.

Carton erection is carried out by the traditional blade opening system, which guaranties optimal operation with the widest range of cartons and cardboard quality. Change over is simple and fast, assisted by millimetric scales.

The Siemens operator interface control panel shows all the machine functions and displays the machine status, as well as fault/alarm messages The speed is set from the control panel and allows for adjustment to the optimal production speed.

Standard control and safety devices:

  • Minimum carton and leaflet detectors;
  • Leaflet presence checking device;
  • Control of correct carton erection;
  • Pusher’s safety device;
  • Mechanical overload on the main motor;
  • Operator’s interface;
  • Safety guards according to CE standards, with Schmersal micro switches.

Technical data

Installed power

  • 2,5 kW

Compressed air consumption

  • 10 Nl/1’ - 6 bar

Approx net weight

  • 1000 Kg
