TM3

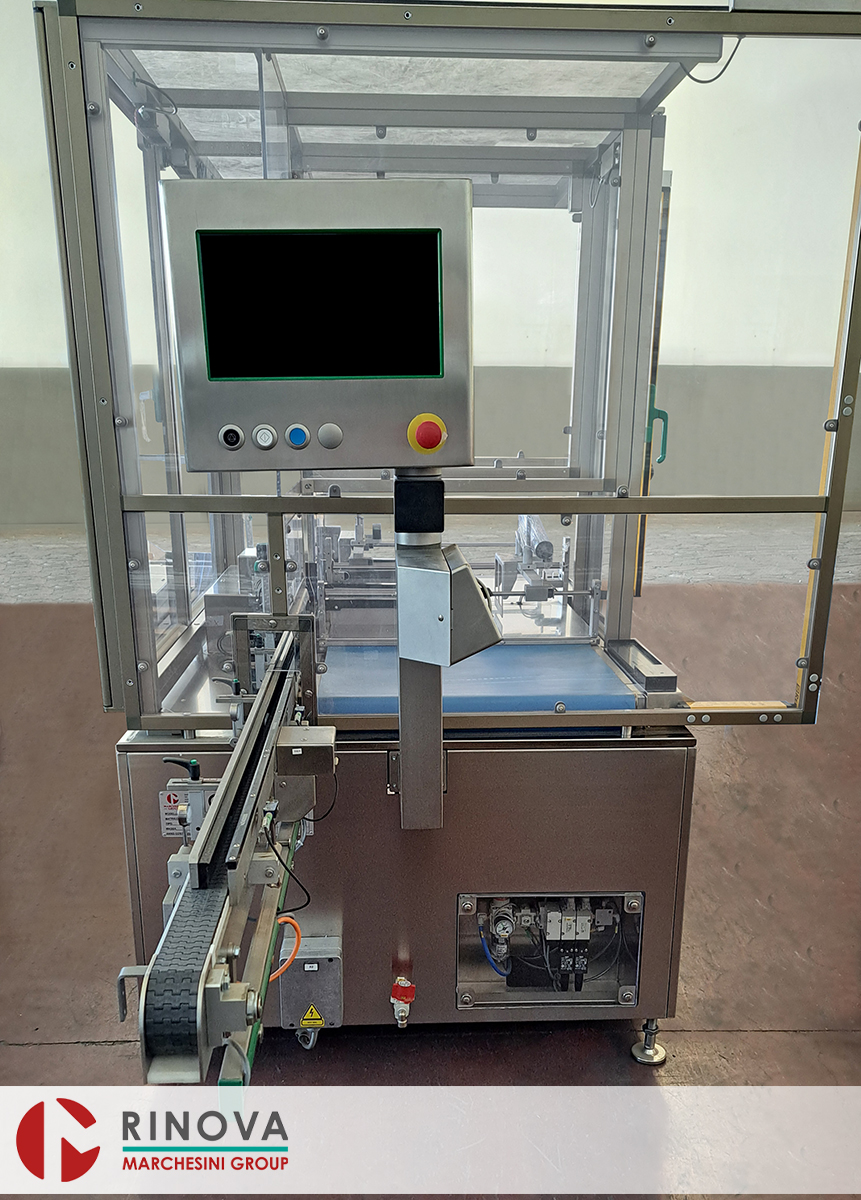

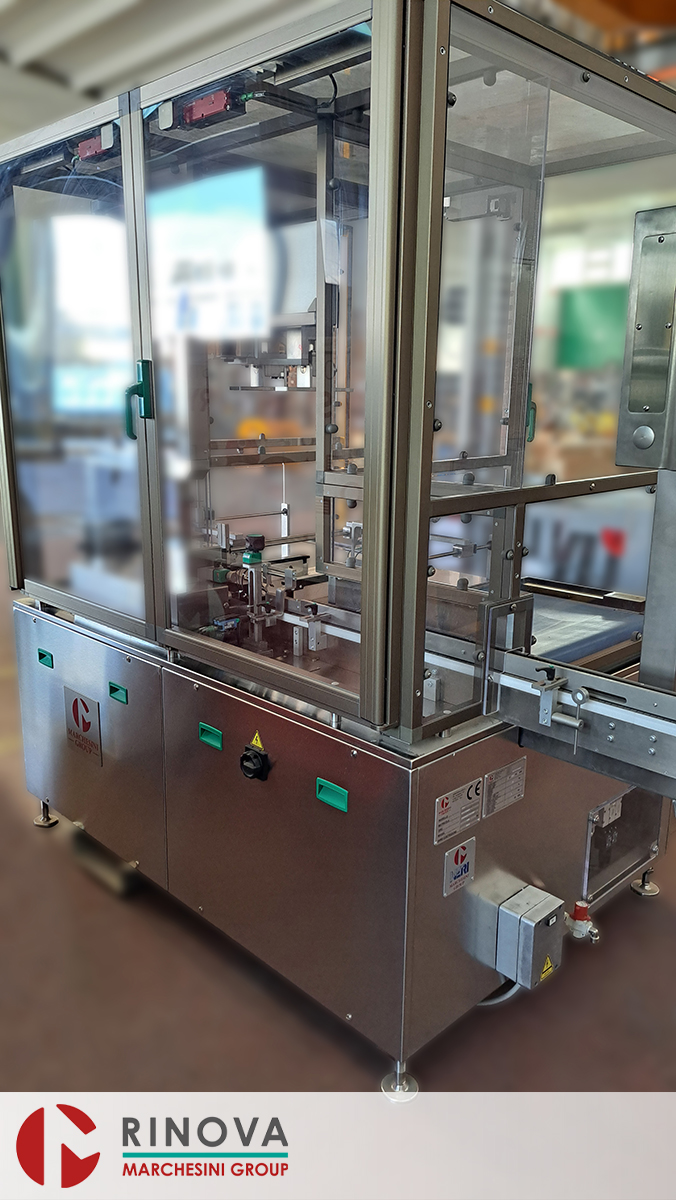

TM3 Double tray loader
The Marchesini TM3 is an automatic double tray loading machine with No-Stop system for stable bottles and vials. Operating in line with other machines.
Main Features
- Design, manufacturing and ergonomics, in accordance with GMP norms.
- AISI 304 stainless steel supporting frame and external panelling.
- Parts in contact with bottles/vials made up of polyethylene or stainless steel.
- Conveyor belt with adjustable side guides for handling different bottles/vials sizes.
- Continuous mode speed adjustment.
- Triangular or square disposition of bottles into trays (quinconce).

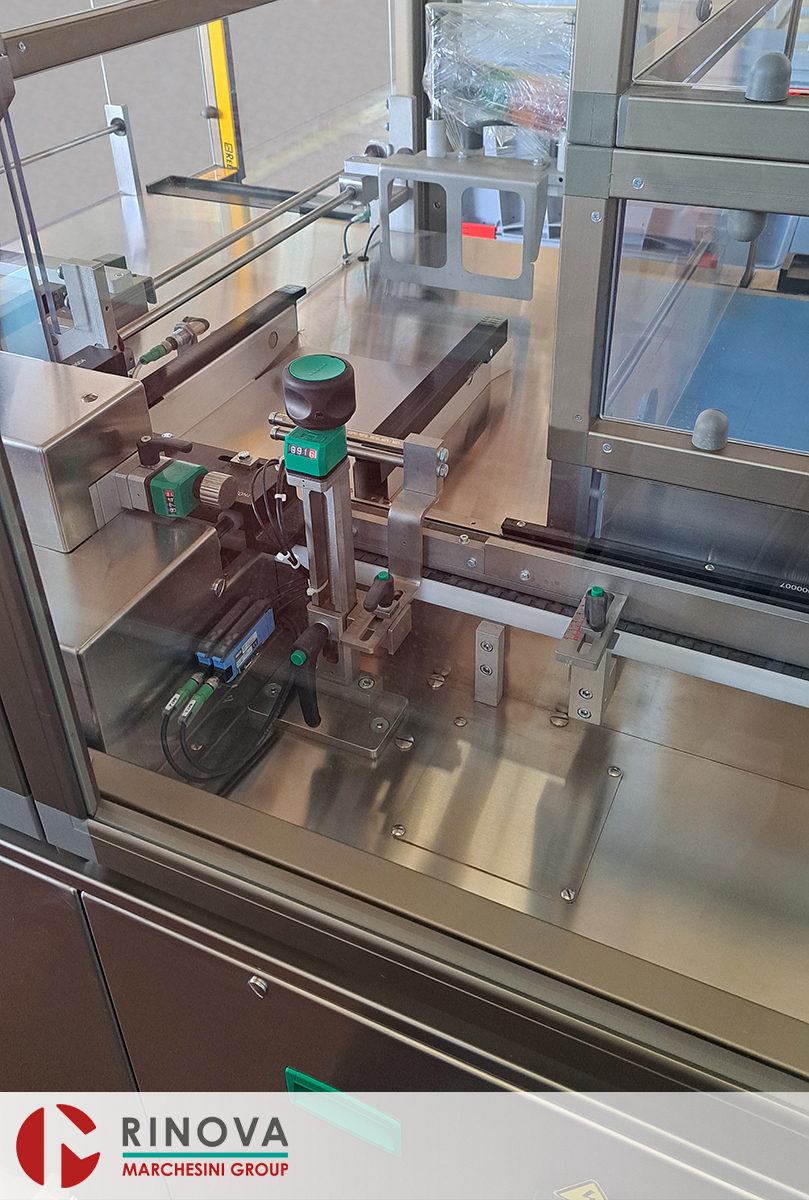

- Row by row bottles/vials pushing system into trays, with counting device.
- Automatic change system for the alternate bottles loading on both trays, without stopping the machine (No-Stop).
- Touch Screen HMI.
- Selection of format size from HMI.
- CE marking.
Safeties and Controls

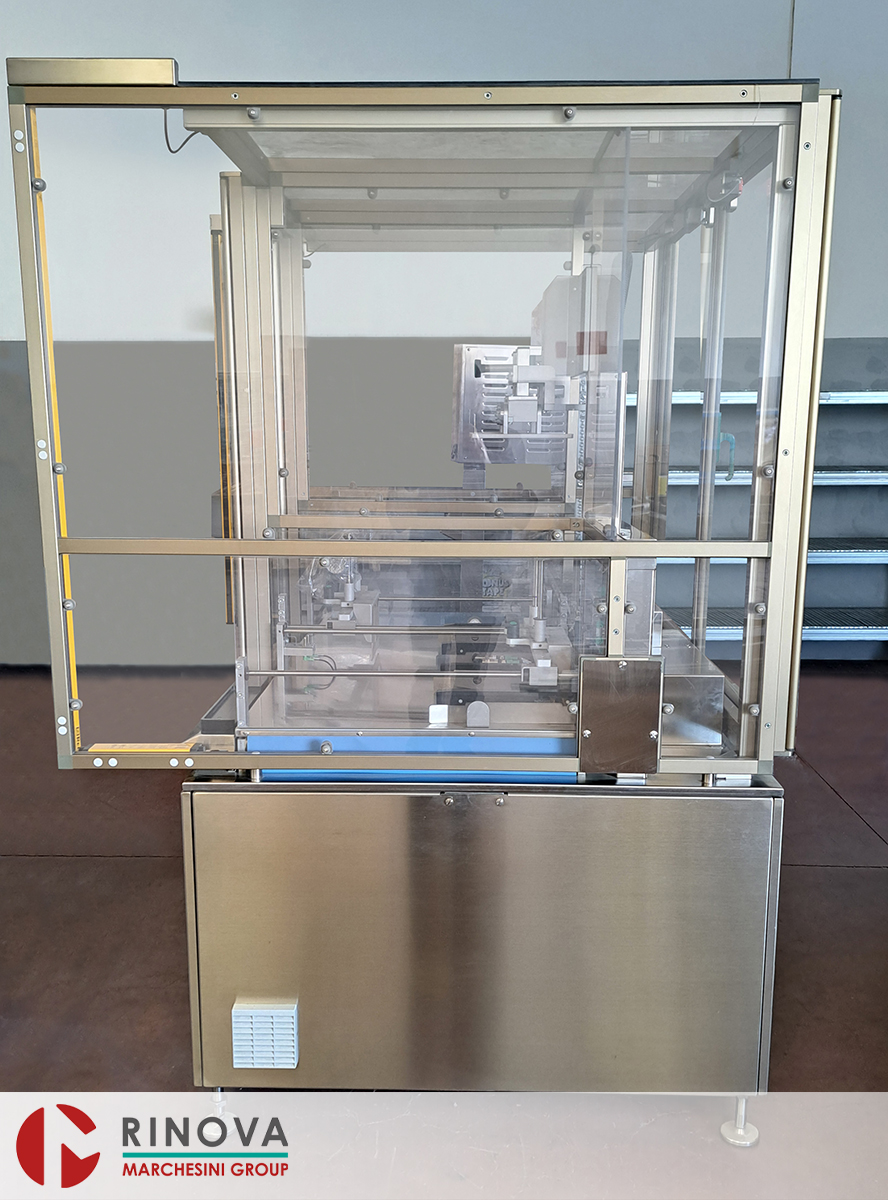

- Safety guards in anodized aluminium frame and methacrylate panels.
- Emergency circuits and protections with safety level “PLd Cat.3”.
- Minimum load control at the infeed with machine stop and automatic restart.
- Compressed air control pressure-switch with machine stop at low-level detection.
Included
- One (1) bottles size.
Technical data
Mechanical speed
- Max. 35 pushes/minute into tray
Bottle size range
- Diameter: from 14,75 to 52 mm max. (from 0.58” to 2.05”)
- Height: 120 mm (4.72”)
Tray size range
- Wide: from 200 to 400 mm (from 7.87” to 15.75”)
- Length: from 350 to 550 mm max. (13.78” to 21.65”)
- Height: 120 mm max. (4.72”)
Technical documentation
- Original standard Instructions Manual (one hardcopy + Pendrive) and CE Certificate are supplied with the machine.
