BA 100

BA 100 Manual loading motion cartoner

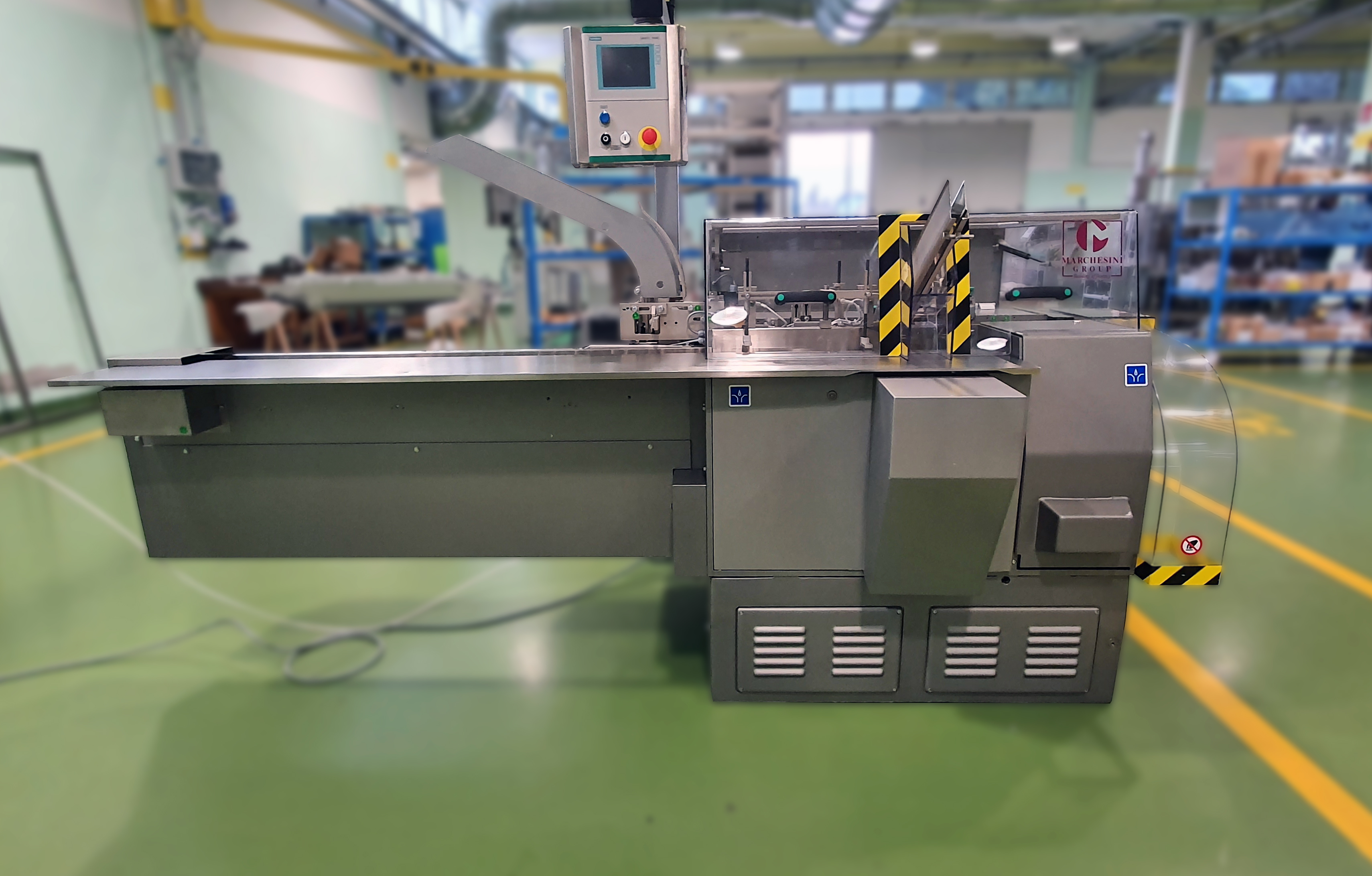

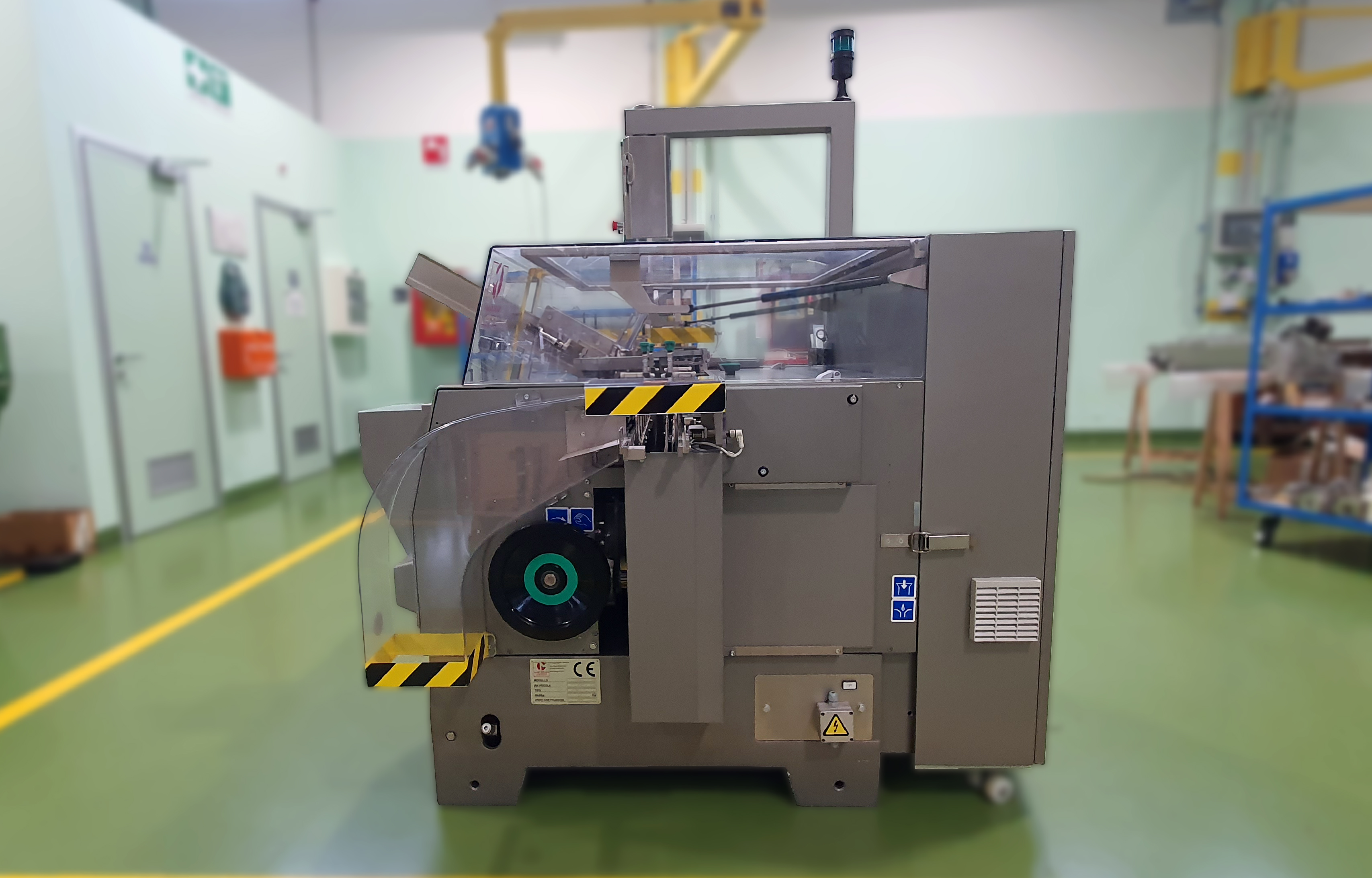

This Marchesini BA 100 is a horizontal motion cartoner, specifically designed to address the main cartoning applications for medium production rates. The machine is set up for manual loading, but it can be upgraded with any feeding system upon request.

The machine has been refurbished and in its current form ready to be shipped in 1 month.

Software, mechanical and electronic parts have been completely refurbished. The machine is sold with the user manual and the technical change over datasheet, CE certified and complies with the existing safety standards.

The BA 100 is equipped with a bucket feeding chain into which, by means of dedicated feeders, are placed the products to be cartoned. Operation is completely automatic. One sensor checks for the presence of the product in the bucket and calls the correspondent carton and leaflet (if necessary), enabling the sensors of correct retrieval.

Carton erection is carried out by the traditional blade opening system, which guaranties optimal operation with the widest range of cartons and cardboard quality. Change over is simple and fast, assisted by millimetric scales.

The Siemens operator interface control panel shows all the machine functions and displays the machine status, as well as fault/alarm messages The speed is set from the control panel and allows for adjustment to the optimal production speed.

Standard control and safety devices:

  • Minimum carton and leaflet detectors;
  • Leaflet presence checking device;
  • Control of correct carton erection;
  • Pusher’s safety device;
  • Mechanical overload on the main motor;
  • Operator’s interface;
  • Safety guards according to CE standards, with Schmersal micro switches.



Technical data

Formats range

  • A: Min 20mm – Max 110 mm
  • B: Min 12 mm – Max 55 mm
  • H: Min 55 mm – Max 170 mm

Speed

  • 80 pieces/min

Approx net weight

  • 1000 Kg

Compressed air consumption

  • 10 Nl/1’ - 6 bar
