MA 155

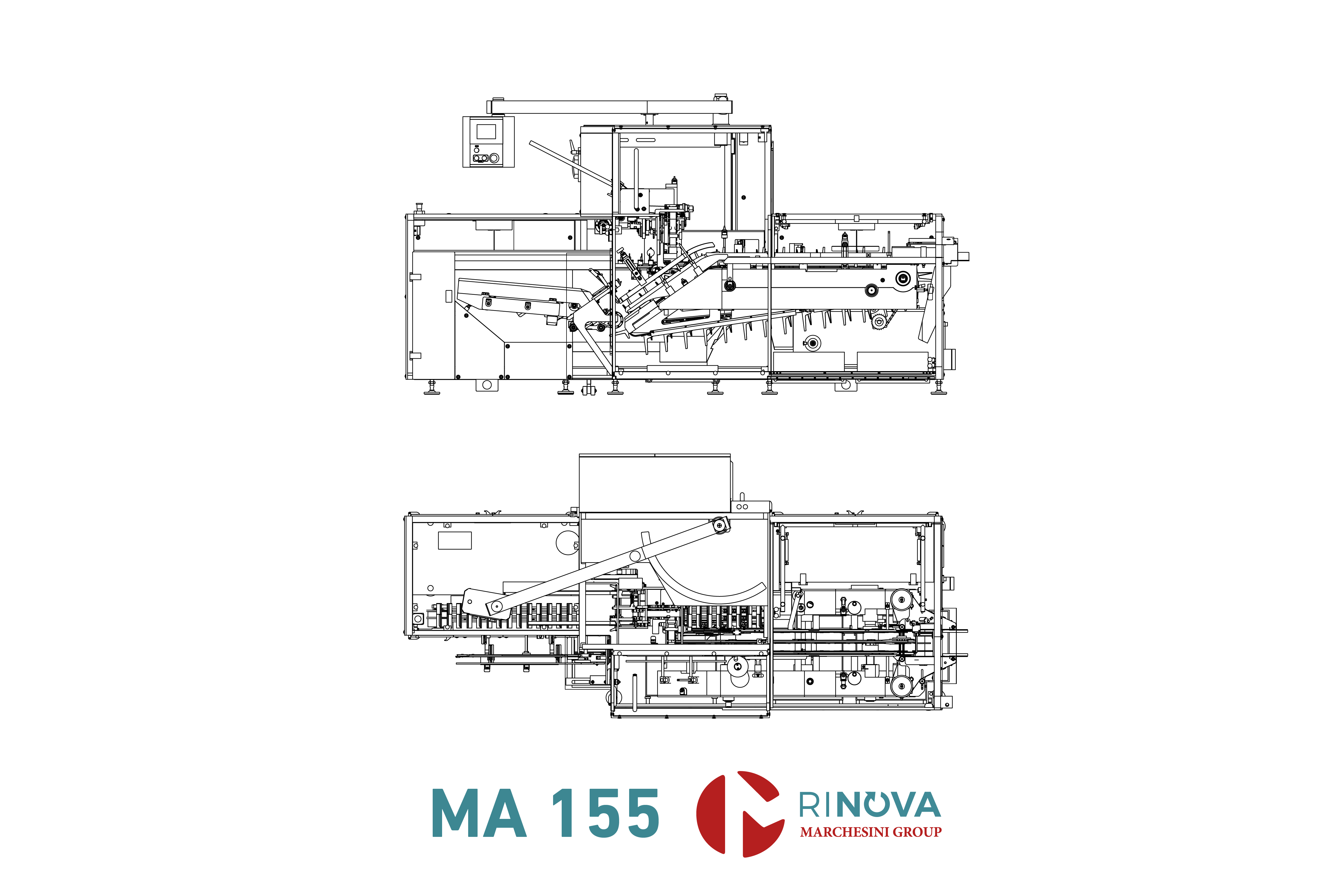

MA 155 Continuous motion cartoner

The Marchesini MA 155 is a continuous motion horizontal cartoner, entirely made with balcony construction, designed around three basic concepts: versatility, ergonomics and maximum efficiency in a small footprint. For its characteristics it is an ideal solution for packaging cosmetic and pharmaceutical products.

Software, mechanical and electronic parts have been completely refurbished. The machine is CE certified and complies with the existing safety standards.

Main features:

  • Machine equipped with Touch Screen HMI;
  • Balcony construction, as per GMP norms;
  • All the feeding groups are located in ergonomics position, to make the loading easy for the operator;
  • All main drive mechanism are in oil bath, thus reducing maintenance and noise level;
  • Easy and fast changeover, entirely made from operator side;
  • Touch Screen control panel, for operator interface and machine management;
  • Self diagnosis and help functions against possible inconvenience;
  • Possibility to install an automatic pre-folded leaflet feeder, or a GUK unit (Opt), always in an easy and accessible position for the operator;
  • Wide selection of coding systems: embossing, ink-jet, laser etc.



Technical data

Output speed

  • up to 120 cartons per minute

Formats range

  • Width “A”: from 25 to 100 mm
  • Height “B”: from 15 to 85 mm
  • Length “H”: from 65 to 190 mm

Tension

  • 380V 50Hz

Air consumption (6 bar)

  • 10 NL/1’
